Where Custom Meets Classic.

Bring your vision to life with the E239DIY Semi-Hollow Body Electric Guitar Kit, a premium LP-style semi-hollow DIY kit crafted for serious builders and passionate modders alike. Featuring a basswood body, fully pre-wired no-solder electronics, and deluxe vintage styling, this kit is your gateway to rich tone, expressive playability, and bold custom design. Whether you’re crafting a jazz-inspired hollow-body or a searing rock machine, the E239DIY gives you the tools to make it yours—start to finish.

Features

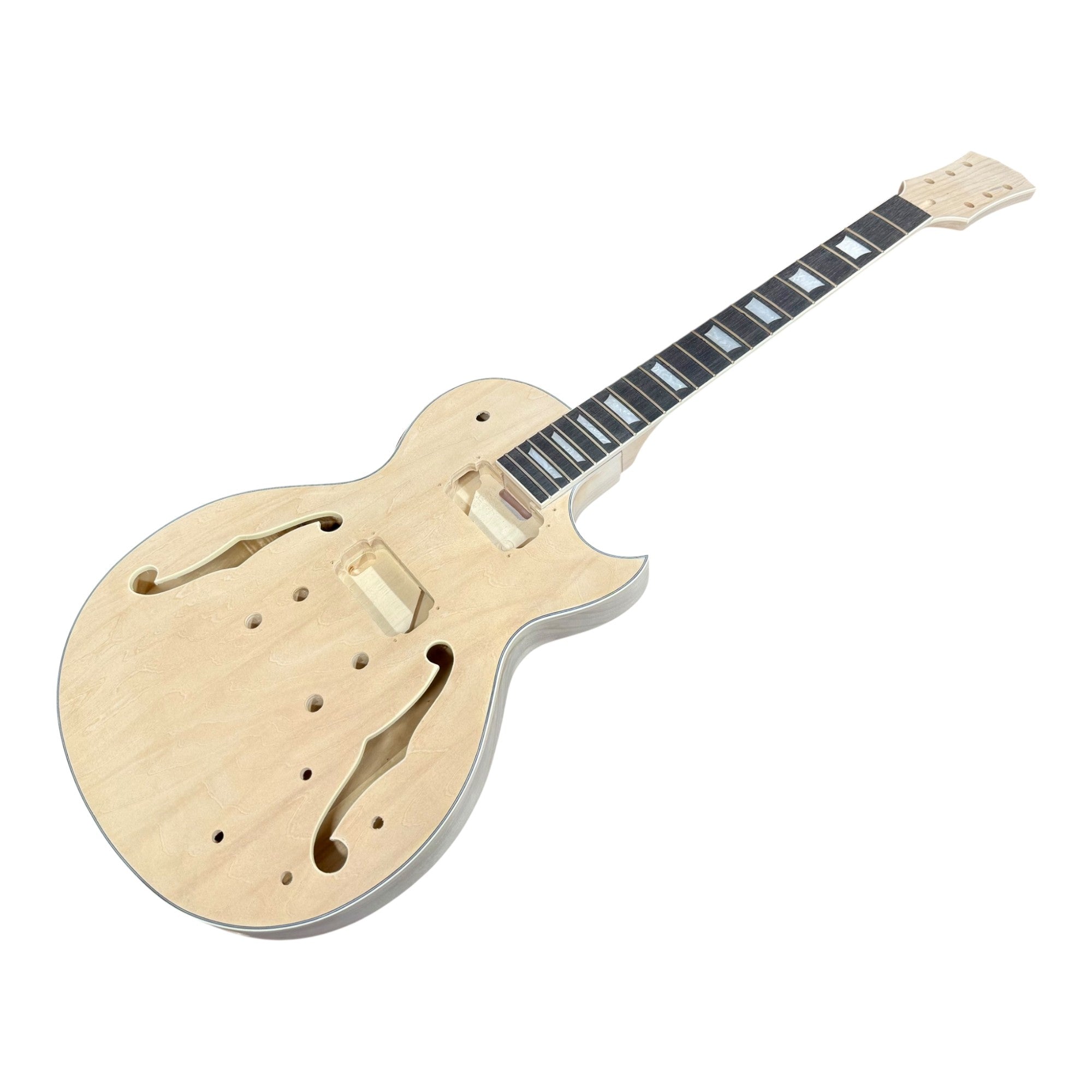

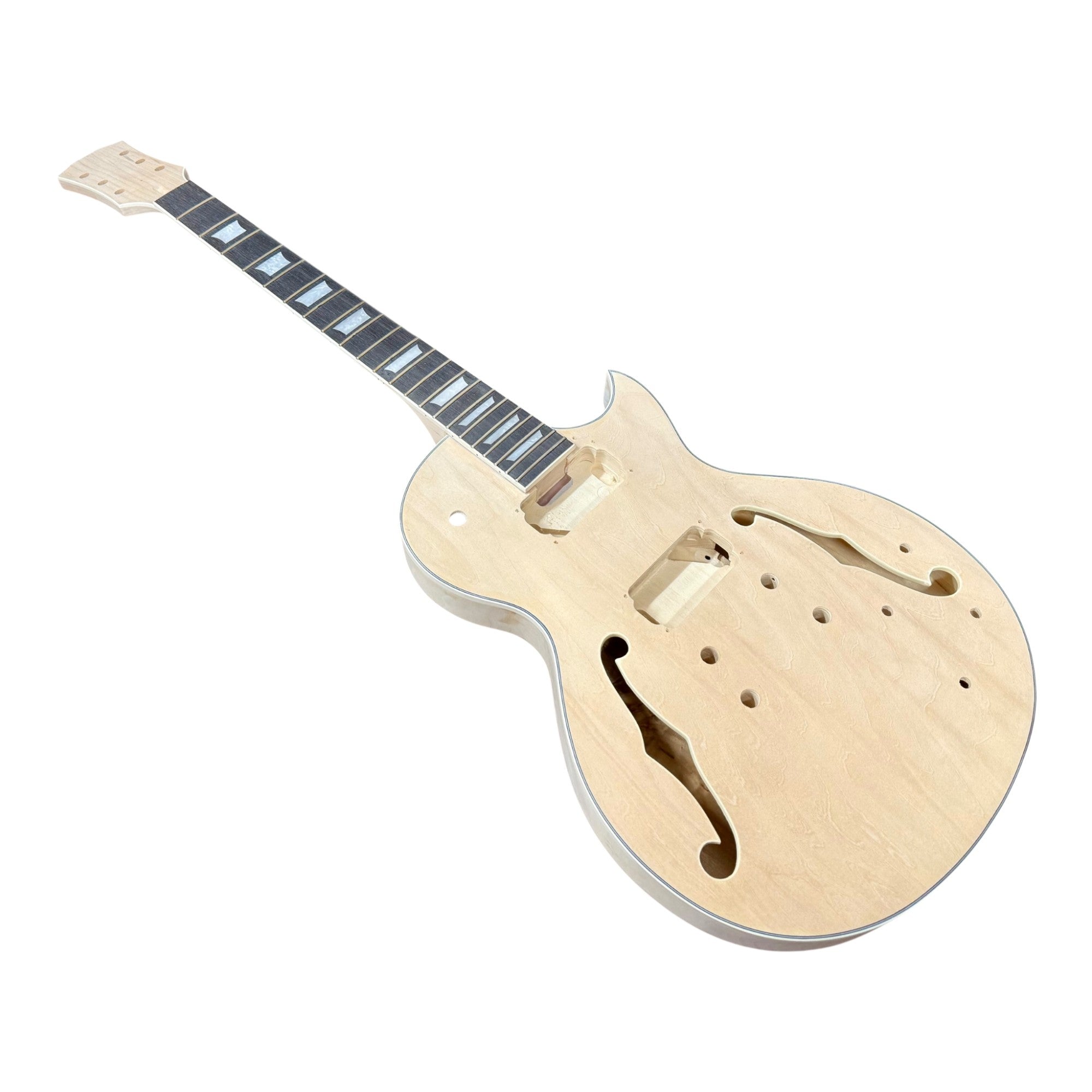

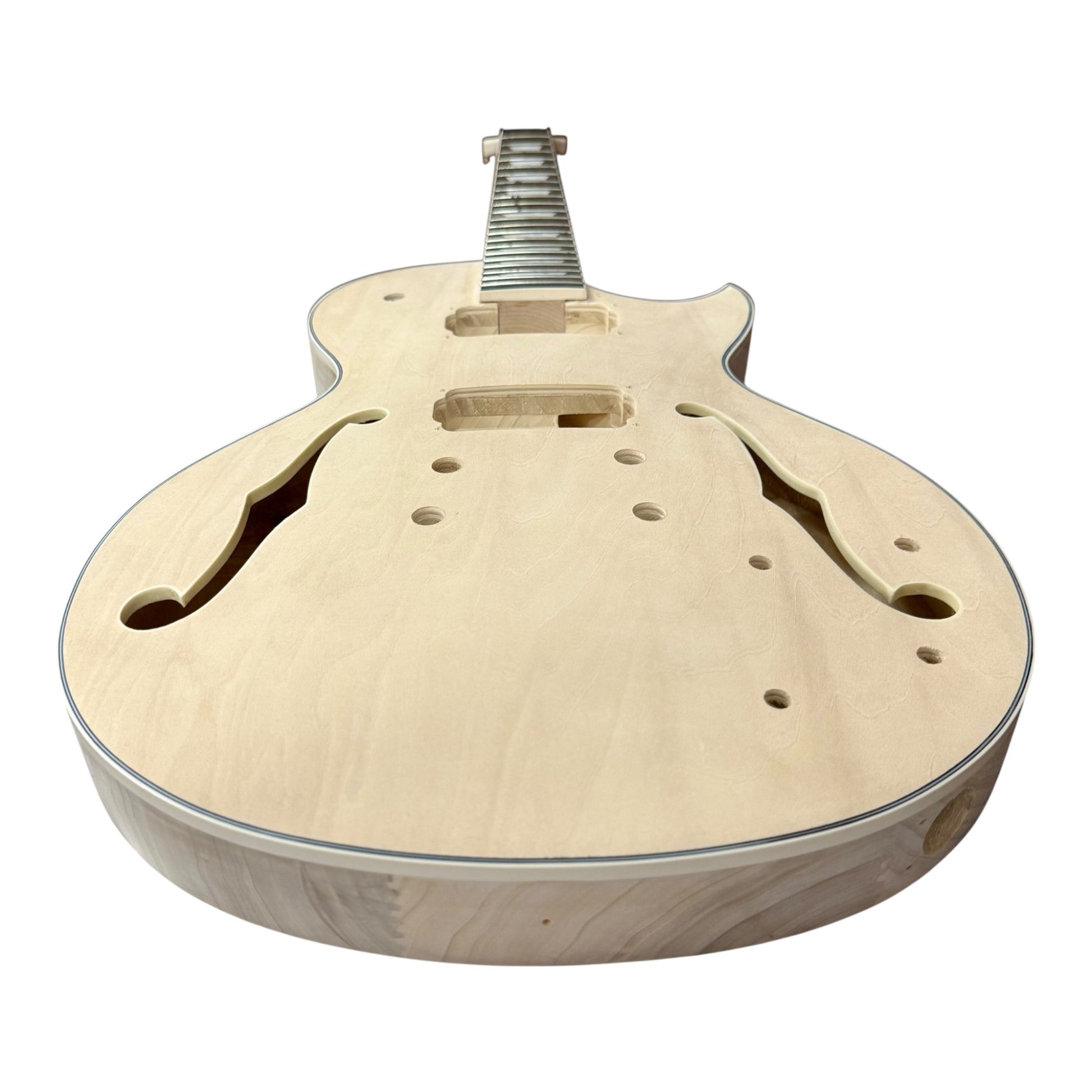

Semi-Hollow LP-Style Body

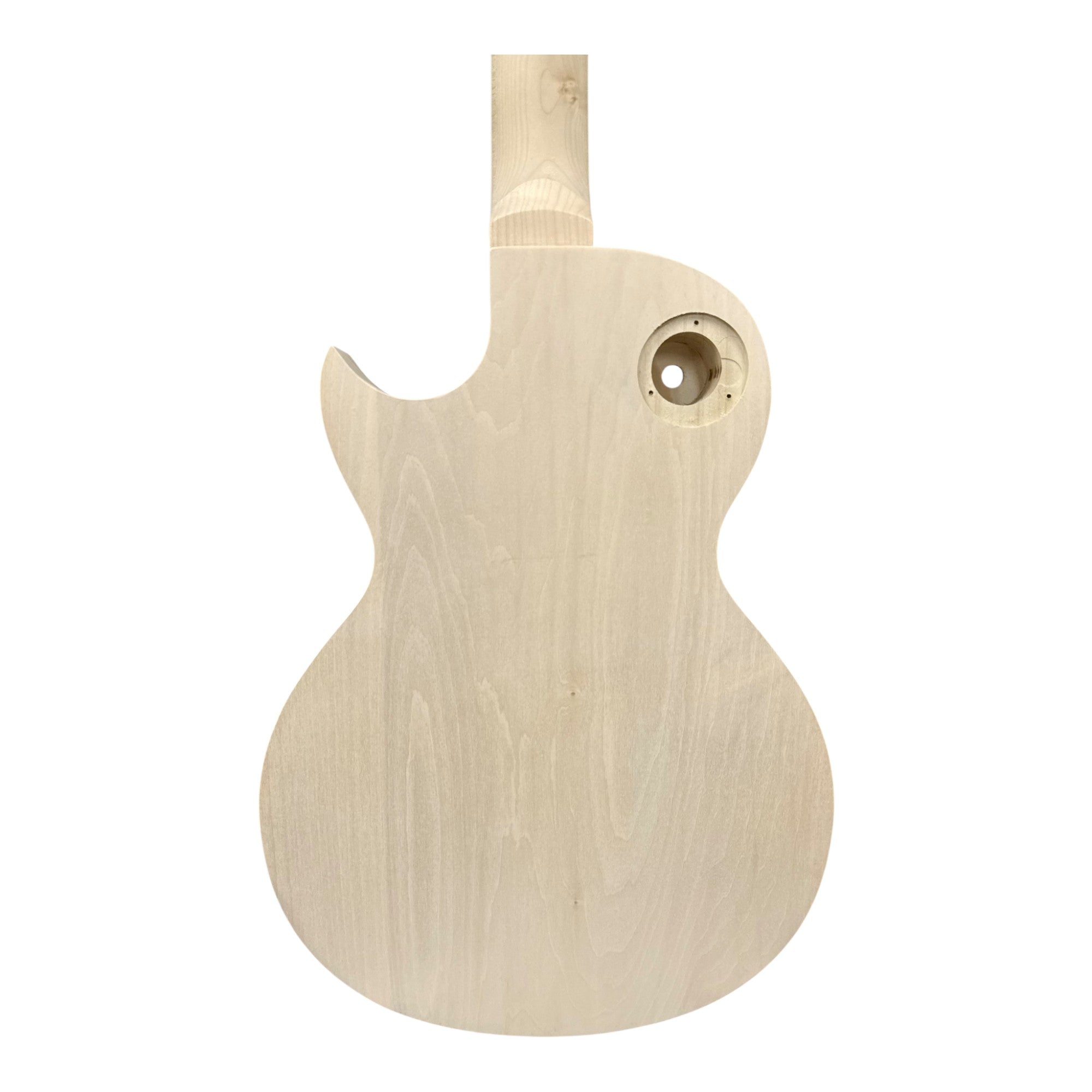

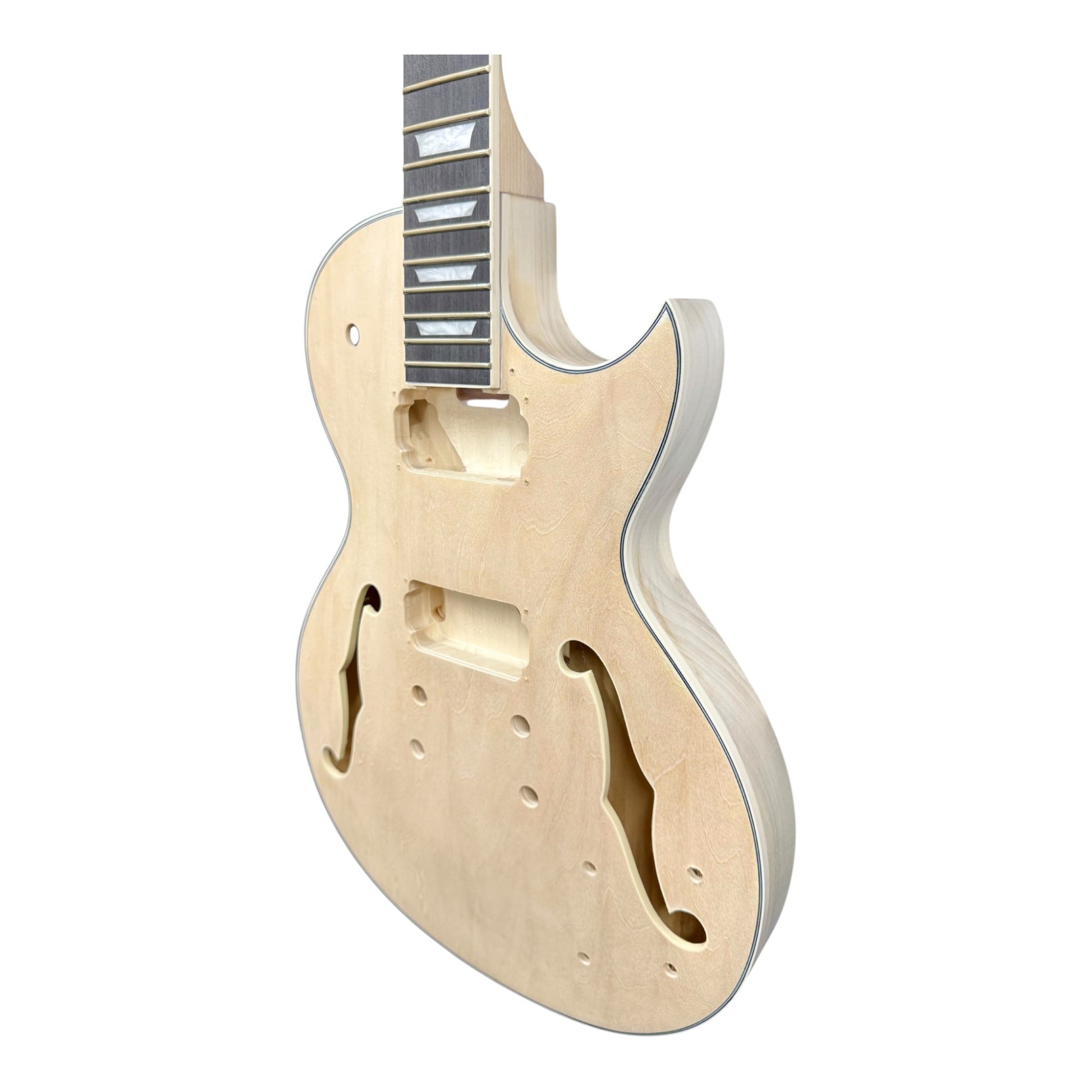

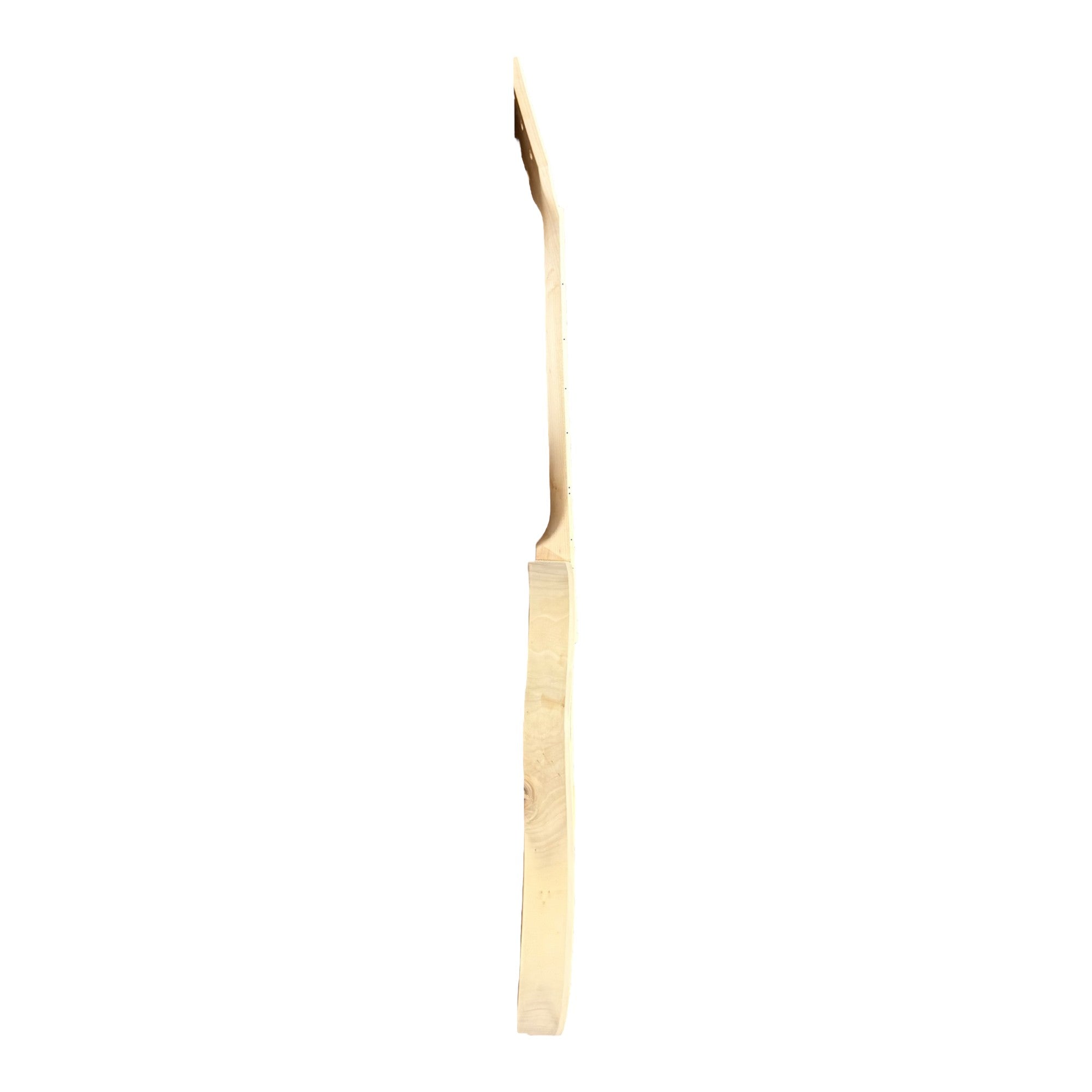

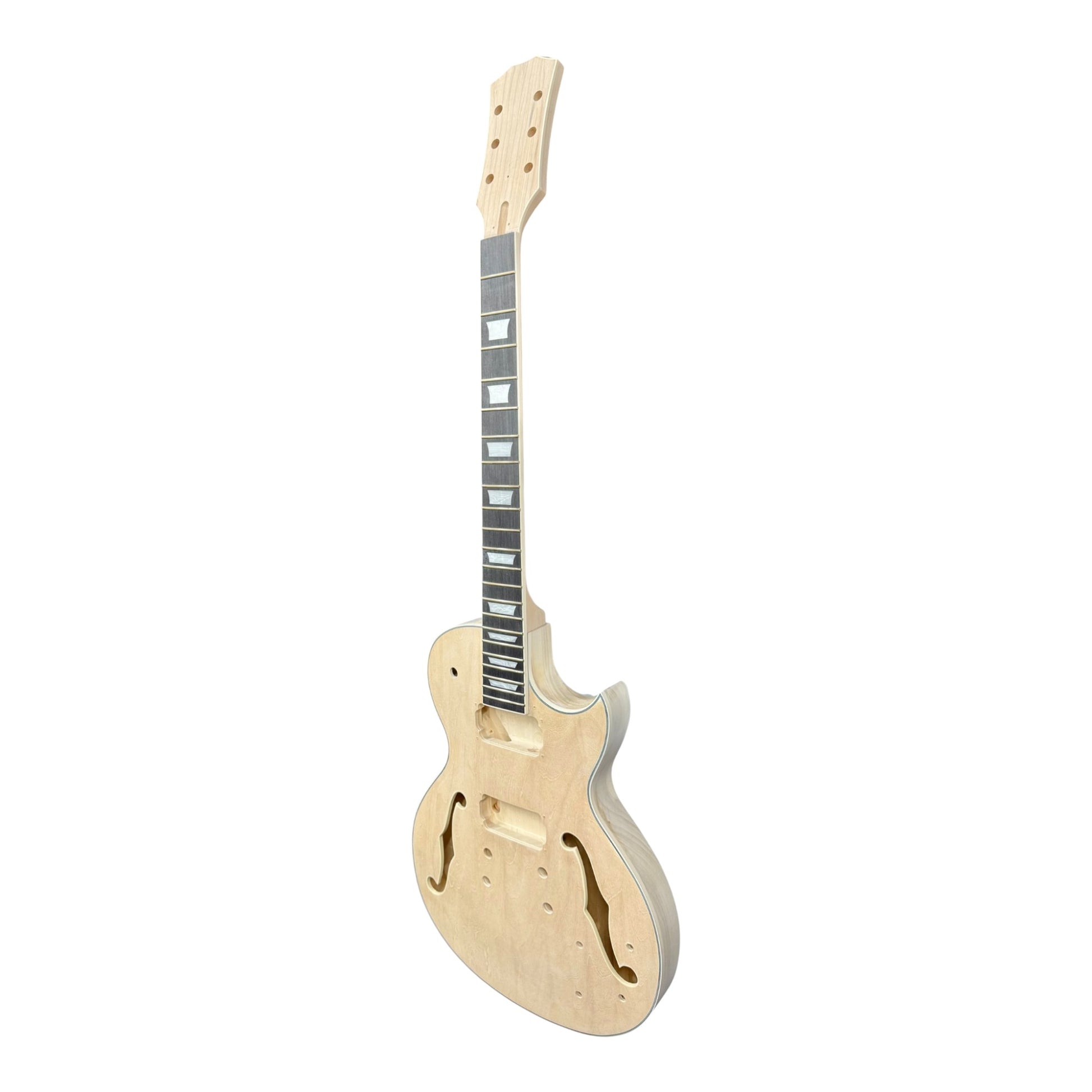

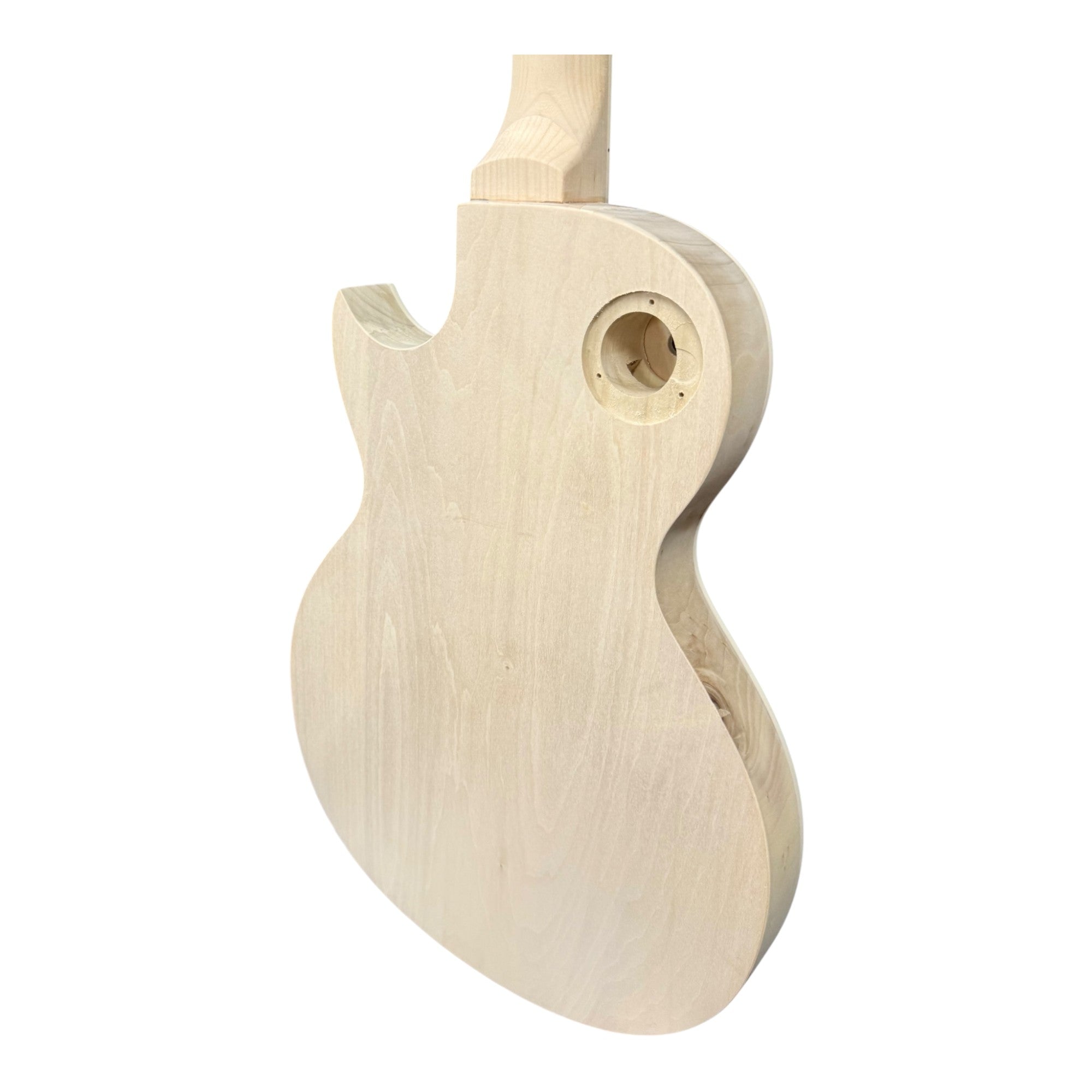

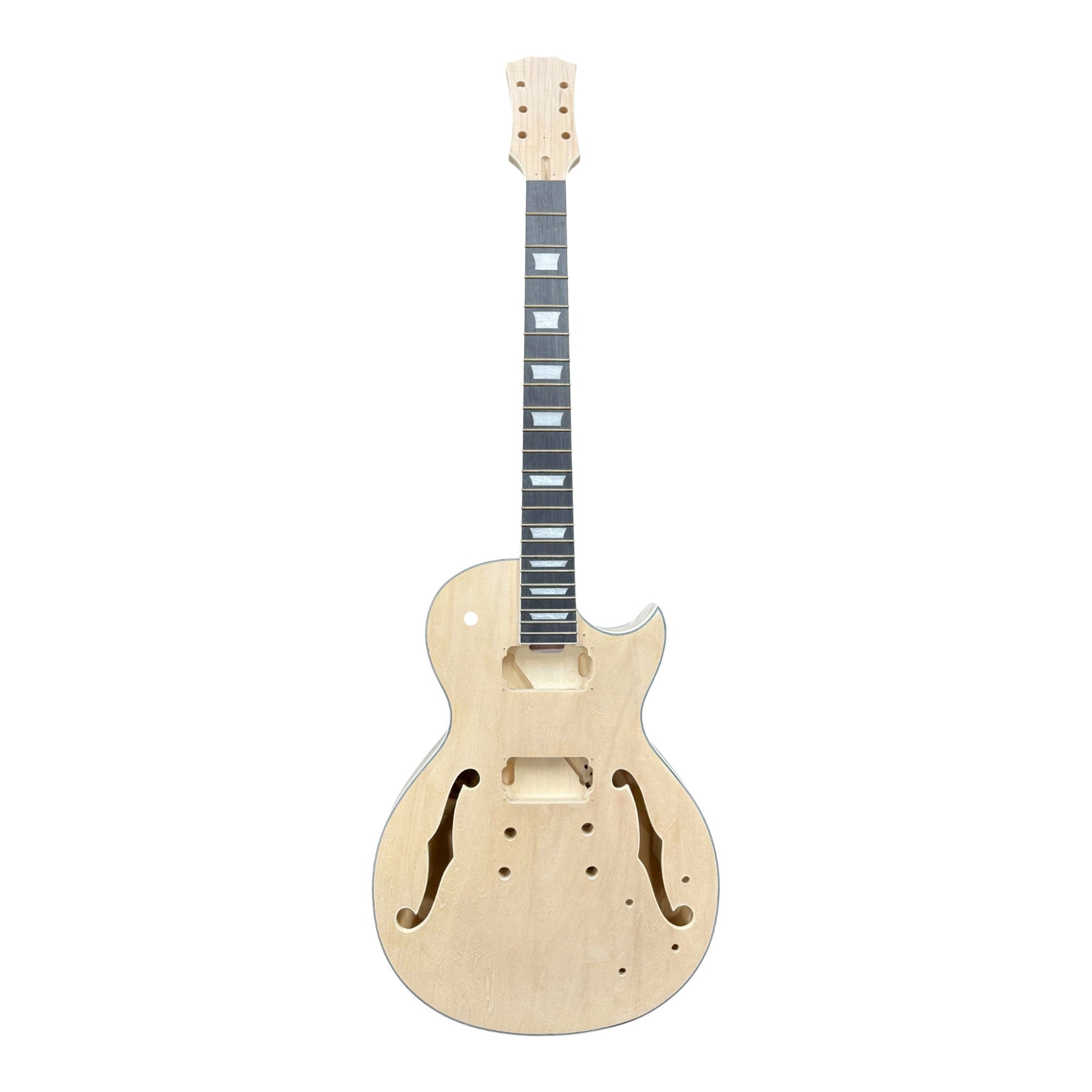

• Built from a basswood body, the E239DIY offers the warm resonance of a hollow-body with the sustain and bite of a solid-body. The arched top, vintage "F" holes, and single pointed cutaway blend classic aesthetics with ergonomic access to higher frets. The raw sanded finish provides the perfect blank canvas for your custom paint, stain, or natural wood showcase.

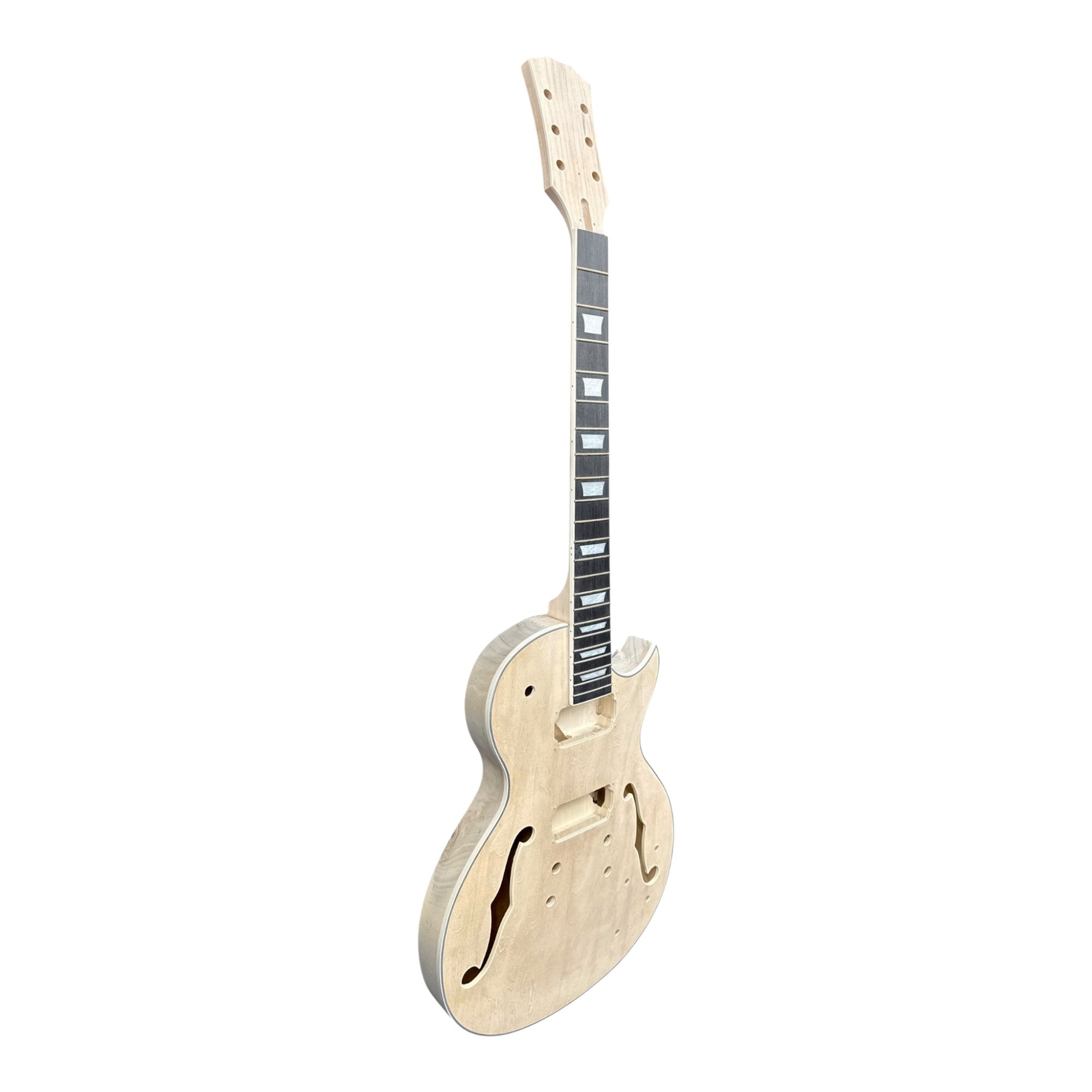

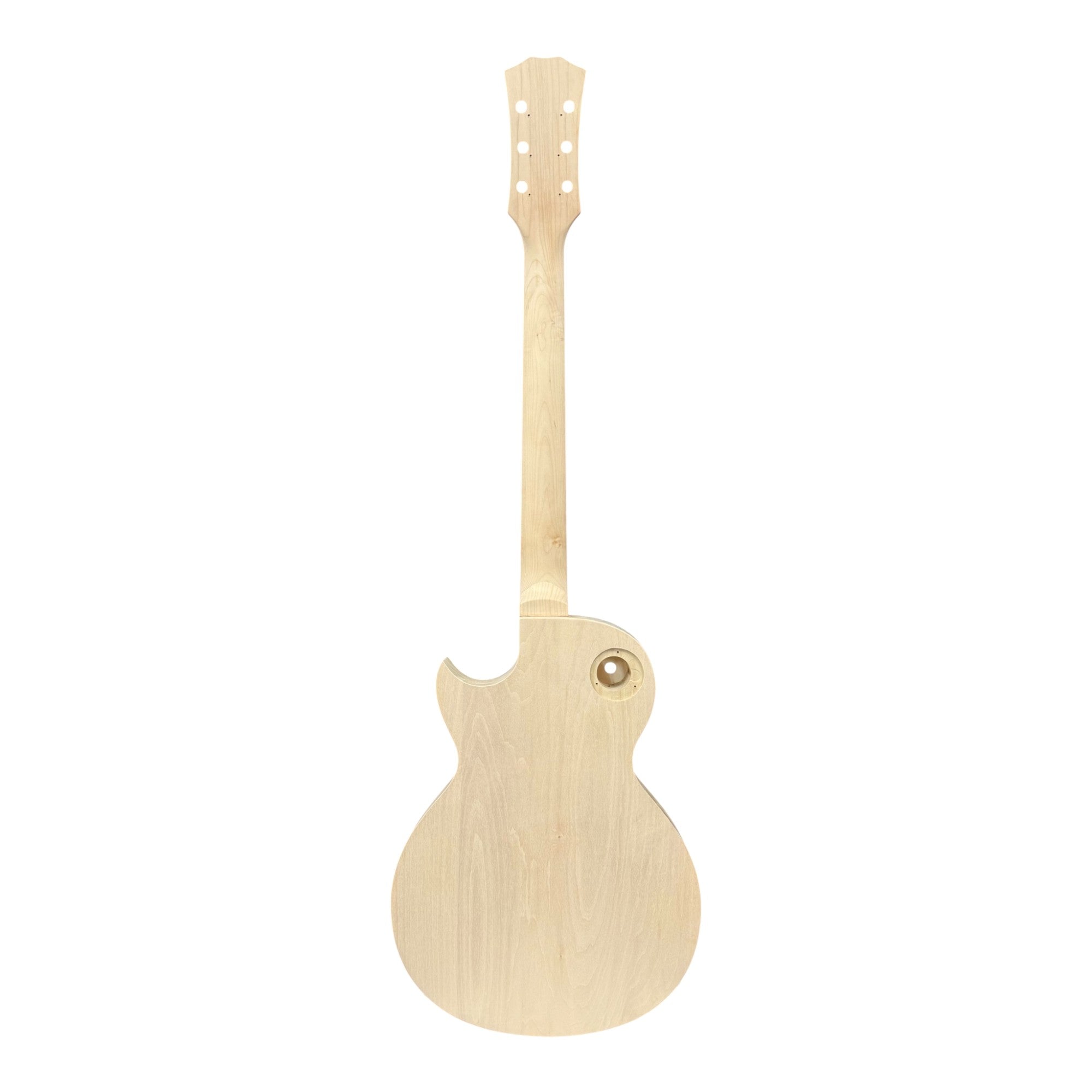

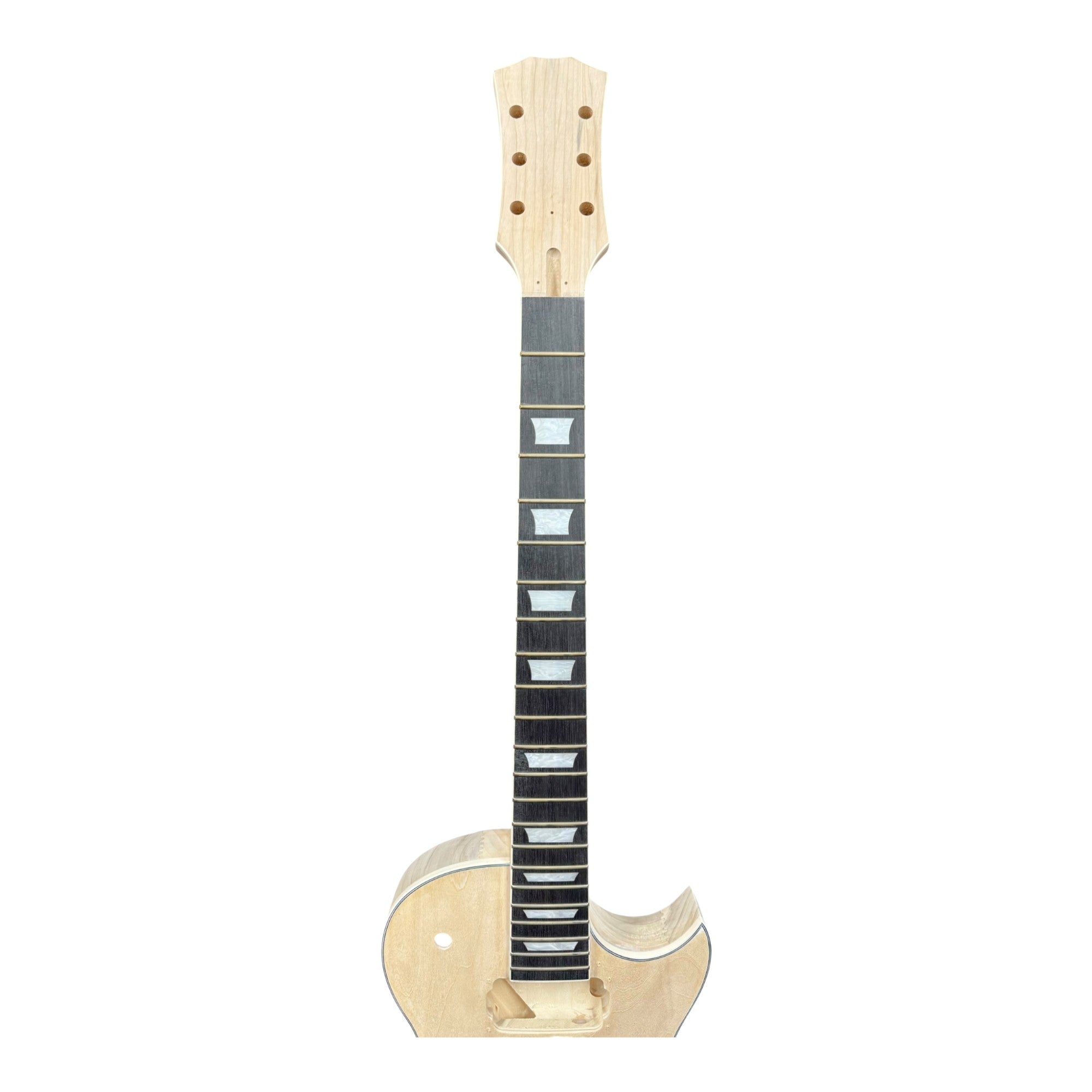

Deluxe Set-Neck Construction

• The maple neck features a smooth Thin-C profile with a traditional set-in joint for enhanced sustain and tonal integrity. A purpleheart fretboard is adorned with trapezoid mother-of-pearl block inlays, giving the guitar a refined, stage-ready look.
• Frets: 22
• Nut: Ivory-colored plastic
• Truss Rod: Preinstalled 2-way adjustable with 3-ply ebony coloured cover
• Strings: Stainless steel, 6-string configuration

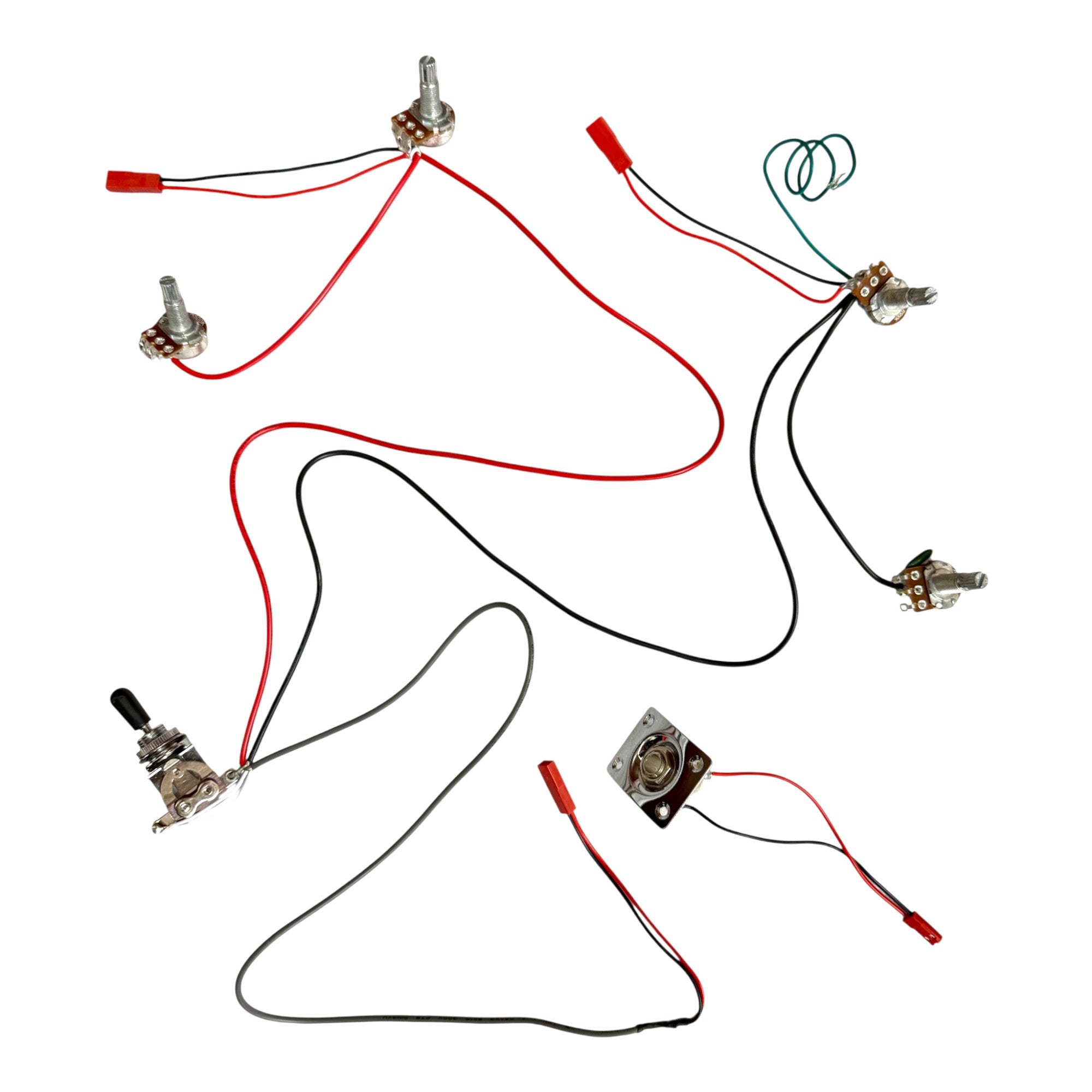

Plug-N-Play Electronics – No Soldering Required

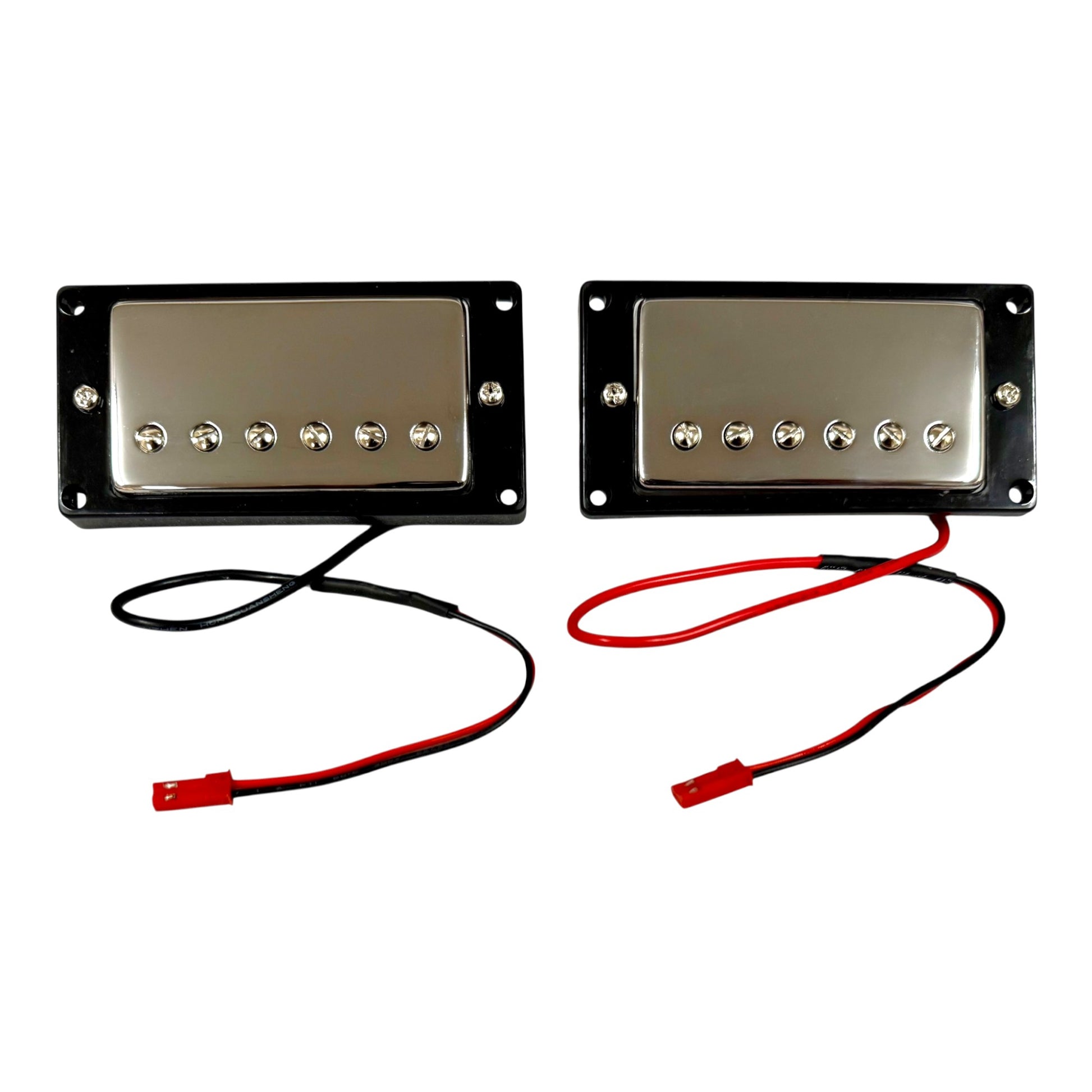

• Skip the soldering and get straight to sound. This kit comes pre-fitted with plug-n-play connections and dual chrome-covered ceramic humbuckers that deliver punchy lows, cutting mids, and articulate highs.
• Neck Pickup: P-3002-50 (8.5K, 3.5H)
• Bridge Pickup: P-3002-52.5 (8.8K, 3.9H)
• Controls: 2 Volume / 2 Tone with gold-clear speed knobs
• Switch: 3-way toggle for flexible tone shaping

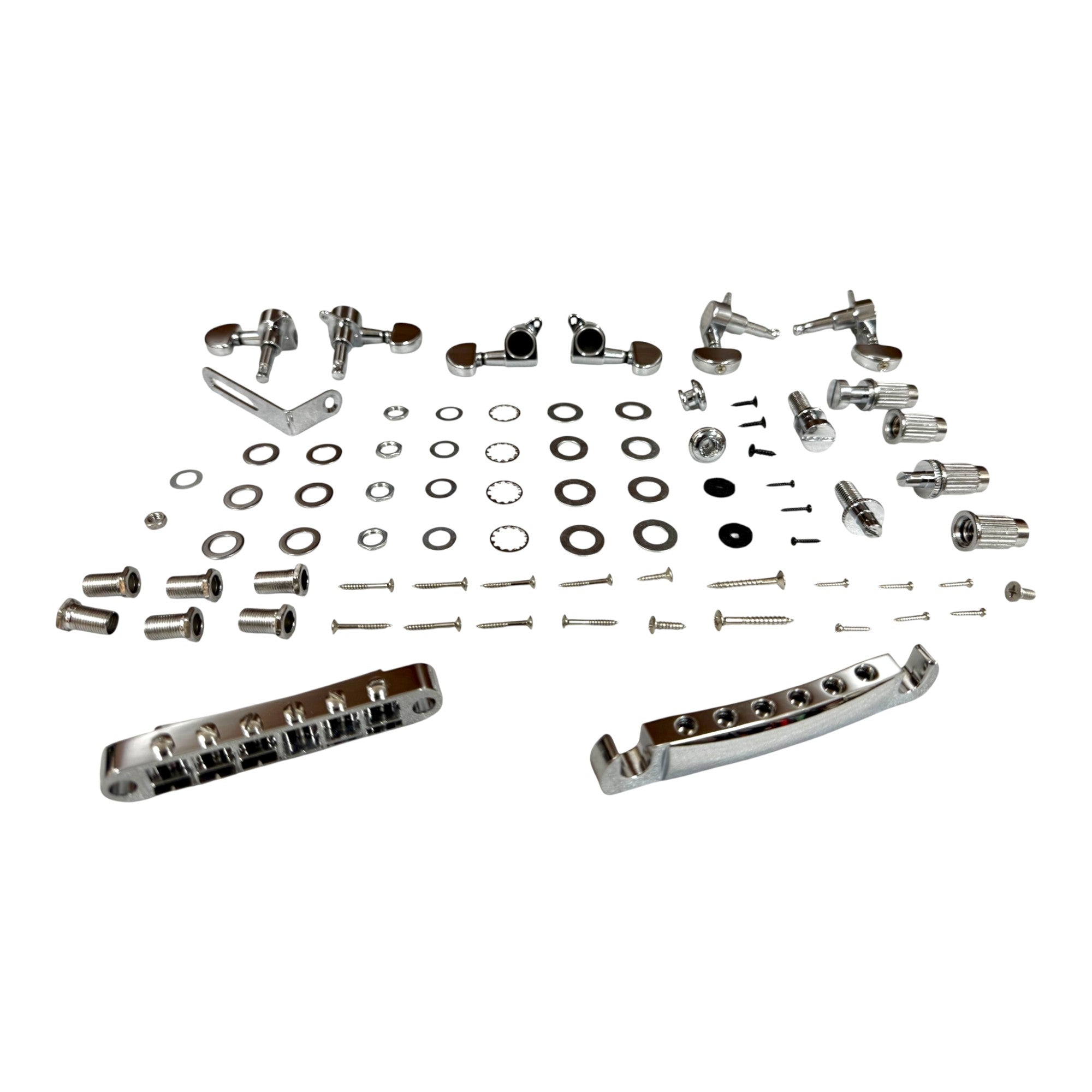

Pro-Level Components

• Outfitted with a Tune-O-Matic bridge and Lock-Tone saddle for rock-solid intonation, plus sealed rotomatic tombstone tuners for accurate and smooth tuning. Chrome-plated hardware throughout ensures both performance and durability.

Vintage Trims & Classic Appointments

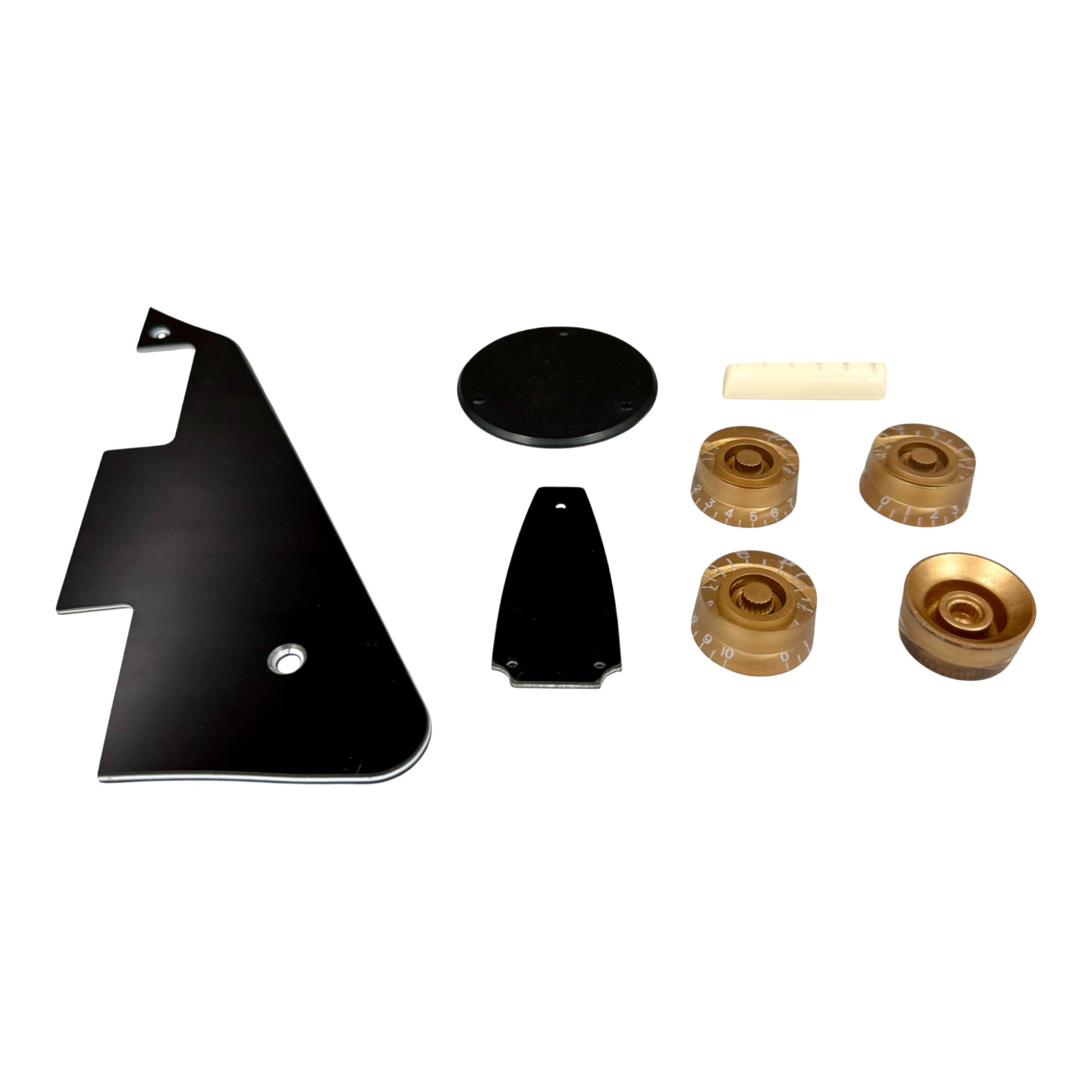

• Vintage-style 3-ply ivory pickguard delivers a vintage aesthetic inspired by iconic ’63-era designs.
• Deluxe 5-ply ABS cream binding on the body adds a bold, traditional accent to the guitar’s silhouette.
• Cream ABS binding on the neck and headstock creates a seamless visual flow with a refined, finished appearance.

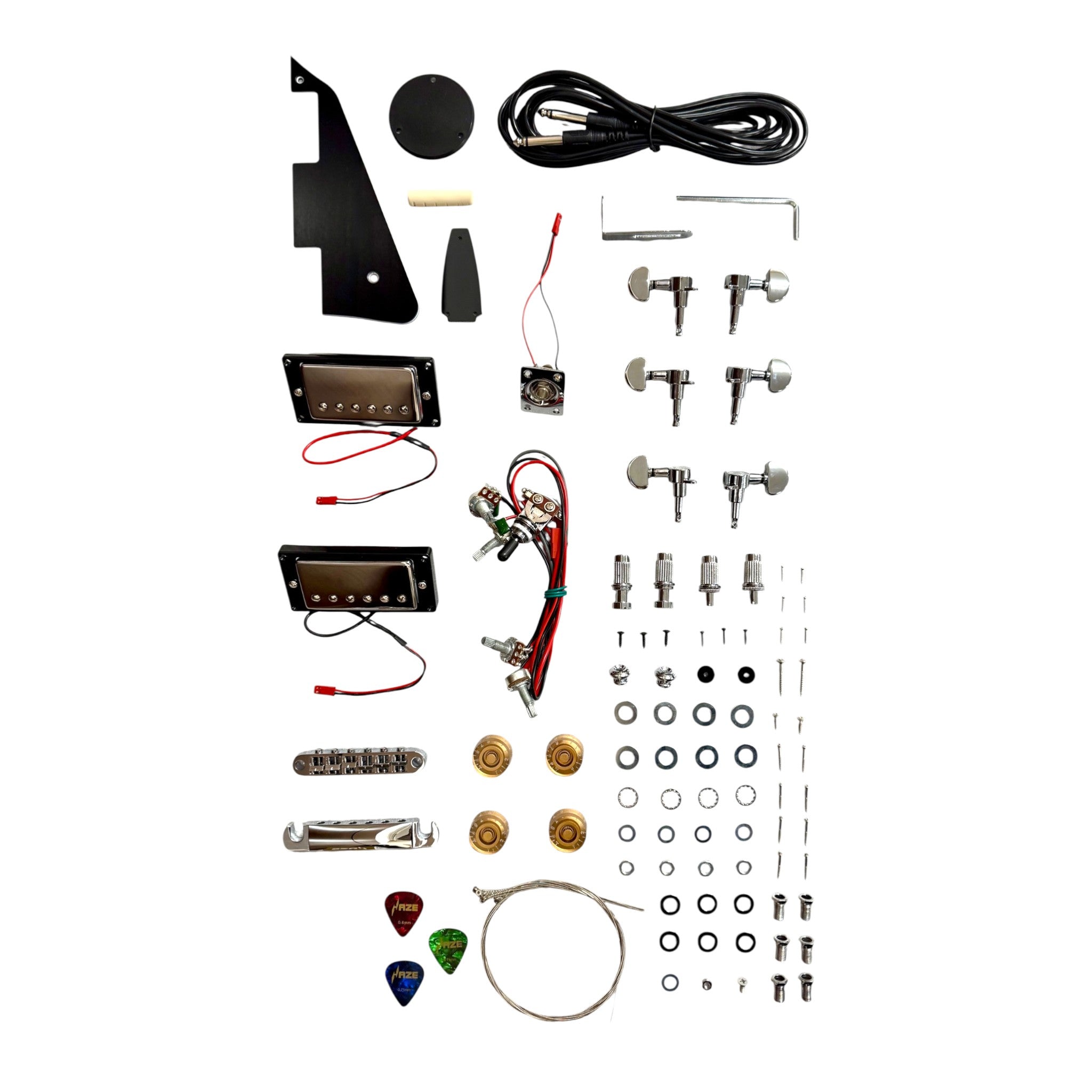

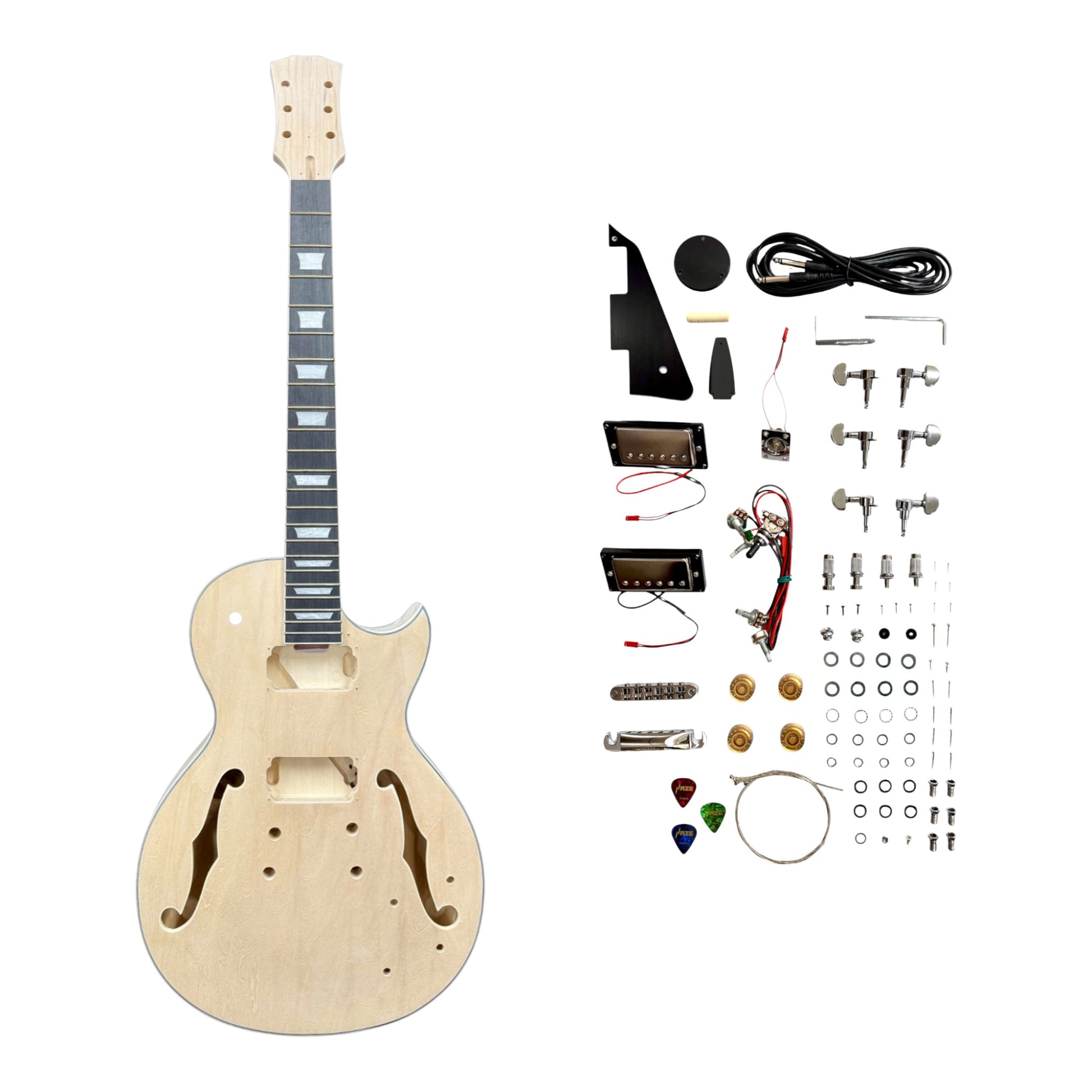

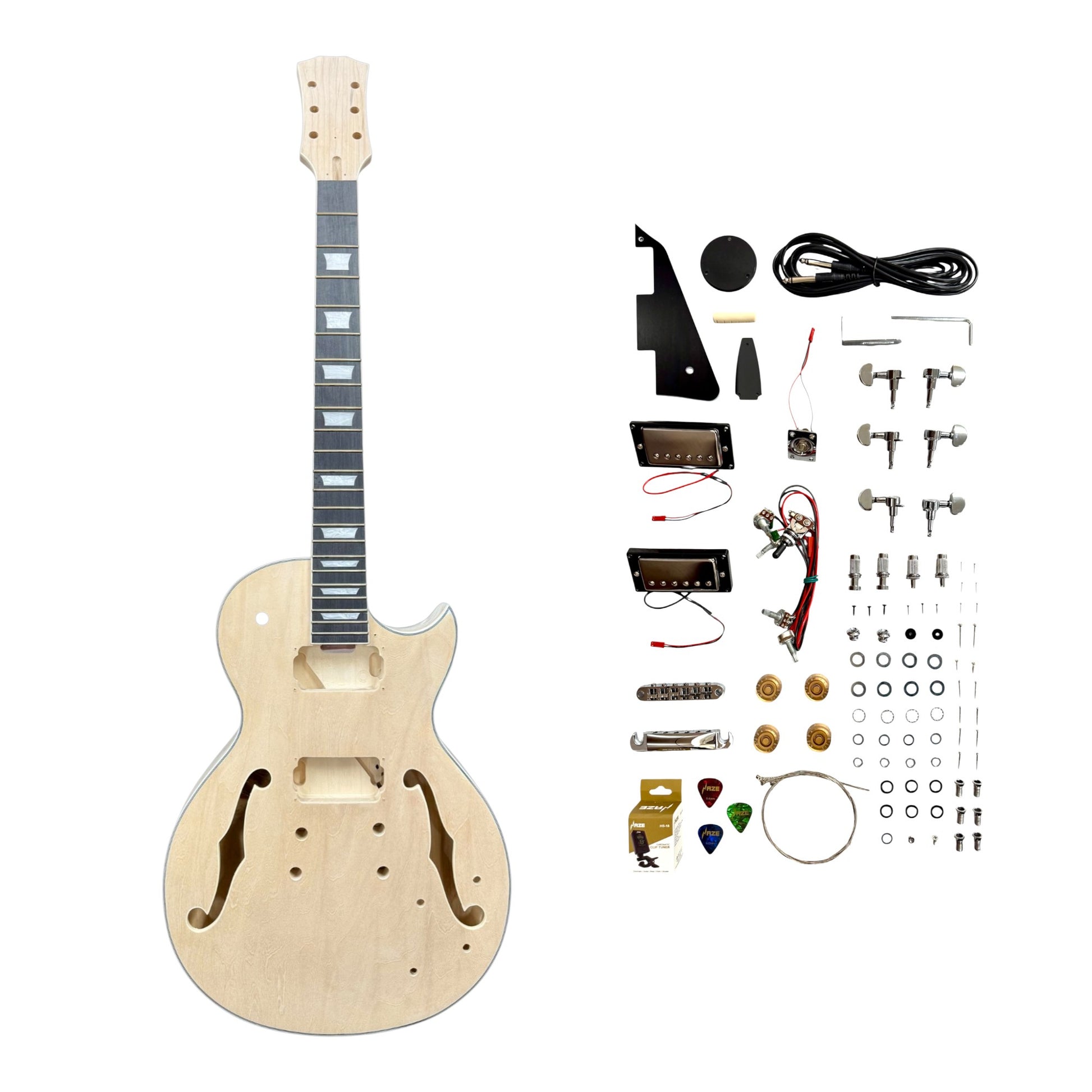

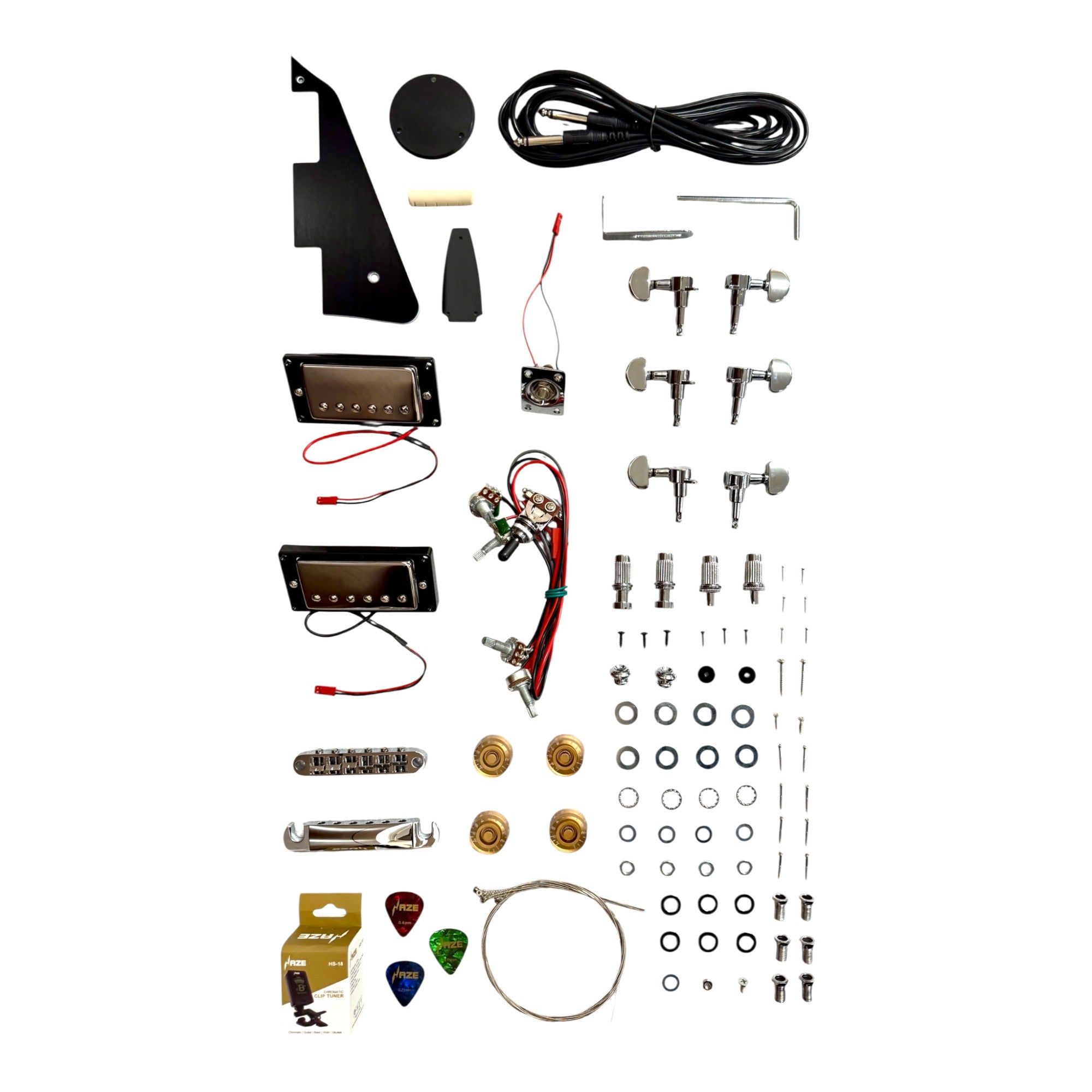

Kit Includes

• 3 Guitar Picks
• Instrument Cable
• Truss Rod Adjustment Key

The E239DIY Kit isn’t just a build—it’s a statement. From its semi-hollow warmth to its fully customizable body and no-solder convenience, it’s the ideal canvas for players who want tone, tradition, and total control. Whether you're chasing smoky jazz cleans, searing blues leads, or indie crunch, the E239DIY is your next great project.

Click to Download

→ DIY Assembly Guide

→ Electronics Overview

→ Electronics Diagram

Specifications

• Model Number : E239DIY
• Instrument : Electric Guitar (LP style) (DIY kit)
• Body : Basswood
• Body - Design : Semi-Hollow / Arched Top / “F” Holes
• Cutaway : Single cutaway (pointed horn)
• Binding - Body : Deluxe 5-ply ABS (vintage cream colour)
• Binding - Neck/Head : Deluxe ABS (vintage cream colour)
• Fretboard : Purpleheart w/ Mother-of-Pearl trapezoid block inlays
• Neck : Maple w/ ABS vintage cream binding (Thin-C)
• Neck Joint : Set-in
• Number of Frets : 22
• Electronics Connections : Plug-n-Play connectors
• Controls - Knobs  : 2 Volume / 2 Tone (gold-clear “speed” knobs)
• Controls - Switch : 3-way toggle switch
• Pickups : H-H (Humbucker-Humbucker) Ceramic  w/ Chrome cover
• Pickups - Neck : P-3002-50 (Ferrites: 8.5K 3.5H / Dimensions: 70.5mm x 38.5mm)
• Pickups - Bridge : P-3002-52.5 (Ferrites: 8.8K 3.9H / Dimensions: 70.5mm x 38.5mm)
• Tuners : 14:1 tombstone rotomatic
• Truss Rod : 2-way adjustable w/ 3-ply cover (ebony colour)
• Nut : Plastic
• Bridge : Tune-O-Matic
• Saddle : Lock-Tone
• Strings : 6 (stainless steel)
• Hardware : Chrome
• Pickguard/Trims : 3-ply ’63 vintage-style (ebony colour)
• Finish : Raw (sanded)
• Includes : 3 Picks, Instrument Cable, & Truss Rod Key

Dimensions

• Length : 1000mm (excluding endpin)
• Scale Length : 628mm
• Weight - Body/Neck : 2.5kg
• Weight - Electronics/Hardware : 0.95kg

Body

• Length : 445mm
• Width - Upper Bout : 235mm
• Width - Inner Body : 185mm
• Width - Lower Bout : 330mm
• Depth : 45mm (includes top, measured on side)

Body Compartments

• Length - Pickups : 42mm
• Width - Pickups : 87mm
• Toggle Switch - Back : 36mm (56mm)
• Line Out : 23mm
• Controls : 8mm
• Switch : 12mm
• Bridge & Saddle : 12mm
• Distance - Pickup Compartments: 60mm
• Distance - Bridge Holes : 60mm
• Distance - Saddle Holes : 70mm

Neck

• Length : 550mm (flat length, measured to body)
• Length - Neck : 378mm (not including headstock)
• Length - Fretboard : 462mm
• Thickness : 23mm
• Thickness - Fretboard : 6mm
• Radius : 15 (Straight)
• Width - Nut : 43mm
• Width - 12th Fret : 53mm

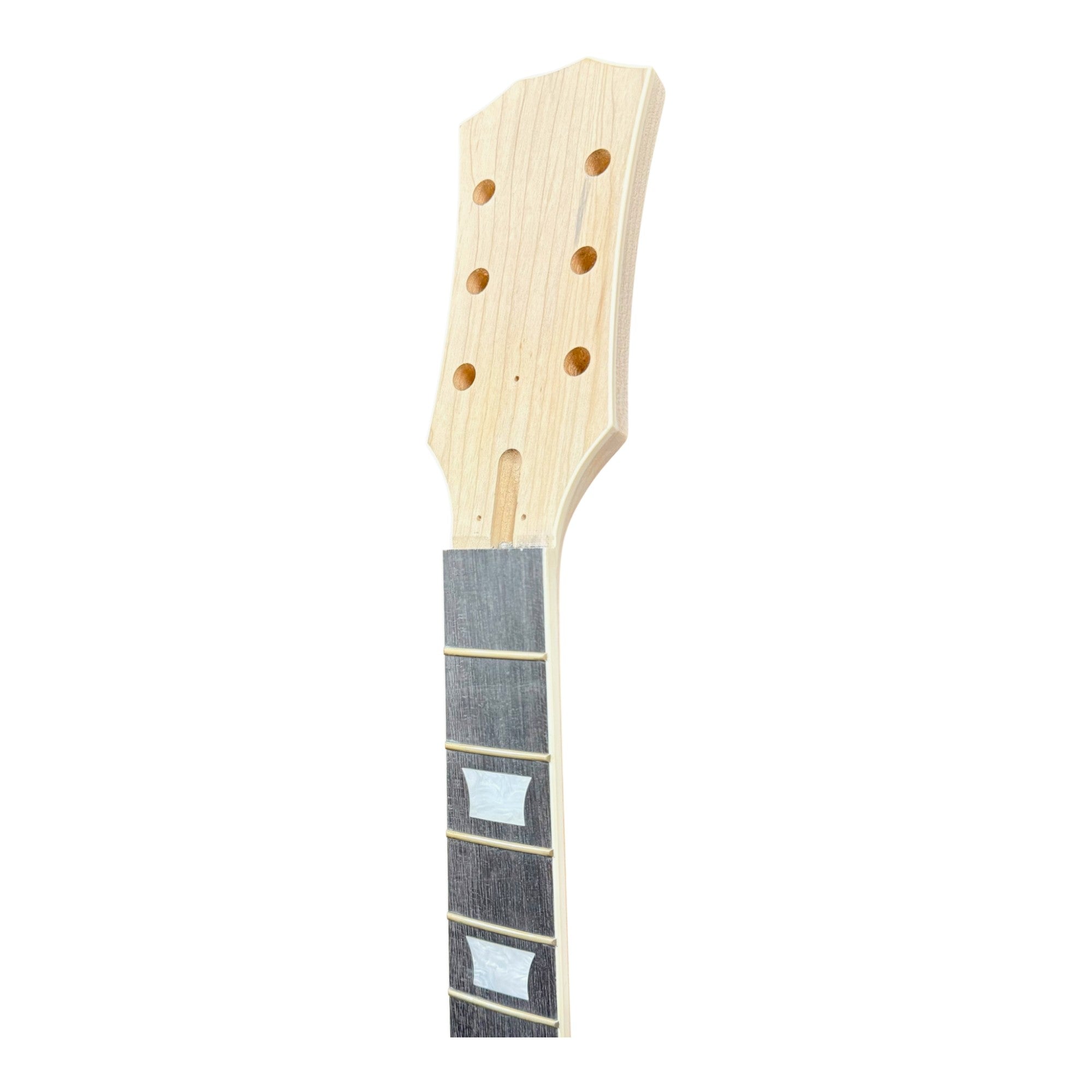

Headstock

• Length : 175mm
• Width - Upper : 80mm
• Width - Inner : 68mm
• Width - Lower : 75mm
• Thickness : 15mm
• Tuner Holes : 10mm

Nut

• Length : 43mm
• Width : 8mm
• Height : 6mm

Note: All product measurements are taken by hand and may vary slightly. Please allow for minor differences in size and dimensions.

Bridge Ground Wire Hole

This small hole inside the larger bridge-post hole is for the earth (ground) wire connection.

Steps:

1. Locate the small drilled hole inside the larger bridge-post hole.

2. Feed the earth (ground) wire through the small hole from the control cavity side.

3. Pull the wire through until enough length remains to make firm contact under the bridge post or metal hardware.

4. Make sure the exposed end of the wire sits securely against the metal part when the bridge hardware is installed.

5. Check that the wire is tight and properly positioned to ensure good grounding and reduce unwanted electrical noise.

Diagram wording:
A. Bridge-post hole
B. Ground wire hole
C. Earth wire to control cavity
D. Wire contact point under bridge hardware

-
