Haze HLP380BK Full Set LP-Style Electric Guitar
Black Hardware & Electronics Parts Kit
Upgrade, repair, or complete your LP-style electric guitar project with the Haze HLP380BK Full Hardware & Electronics Parts Set.

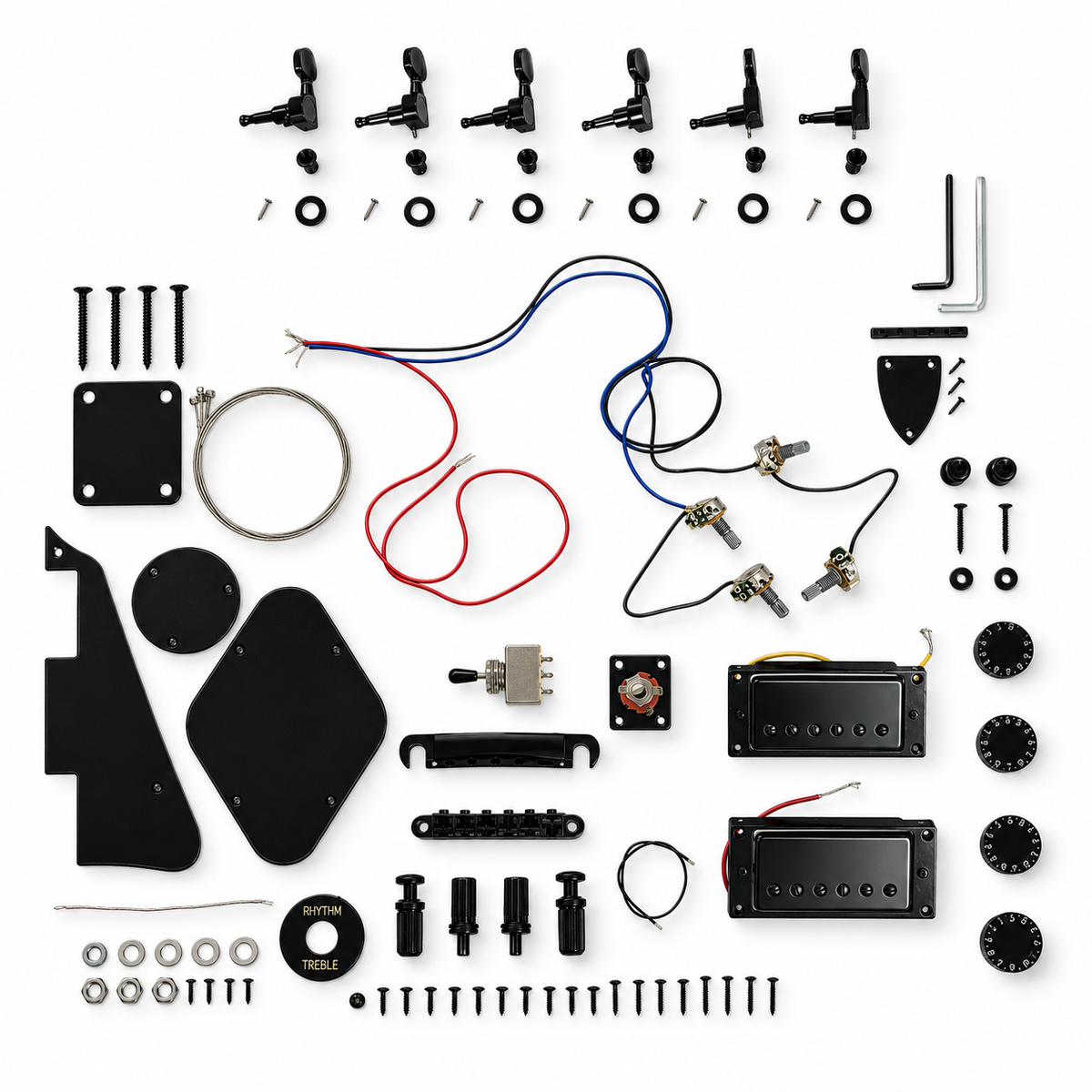

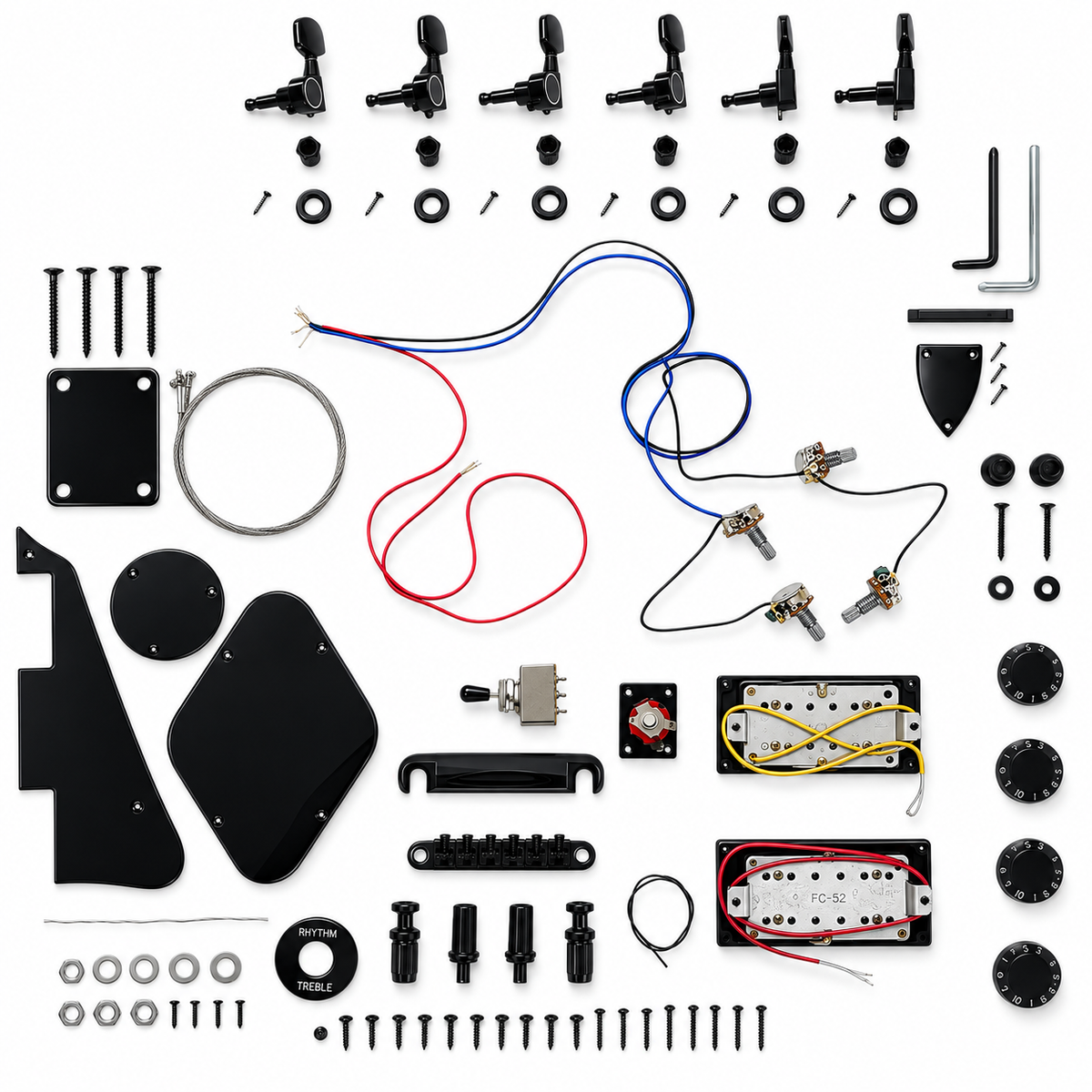

This comprehensive set includes the major hardware, electronics, fittings, controls, and accessories required for an LP-style electric guitar. Featuring Classic Alnico V humbuckers, black hardware, Tune-O-Matic bridge system, 14:1 tuners, controls, wiring, covers, and installation accessories, it is an ideal choice for DIY guitar builders, replacement projects, restorations, and custom builds.
Features
Body Hardware & Electronics
-

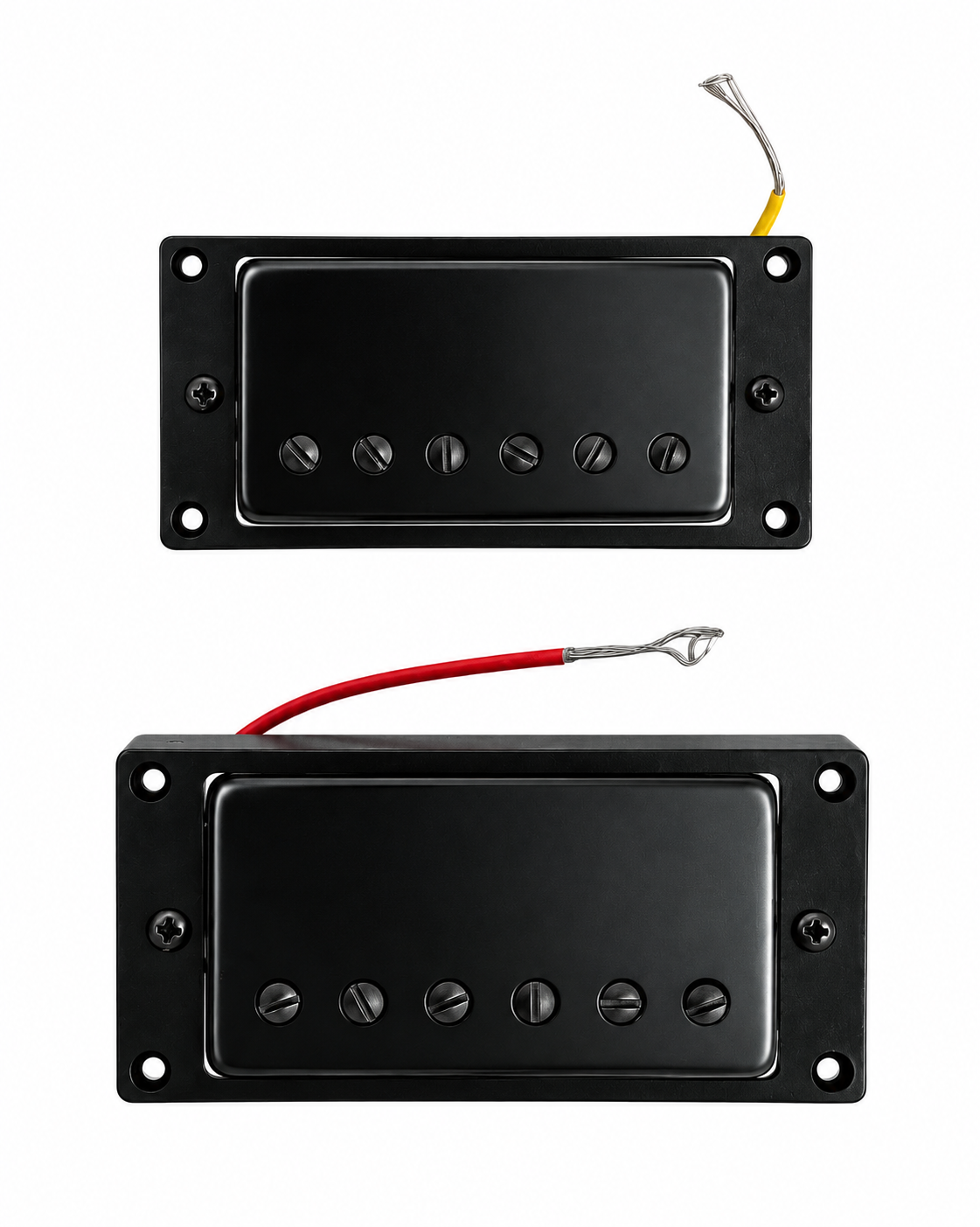

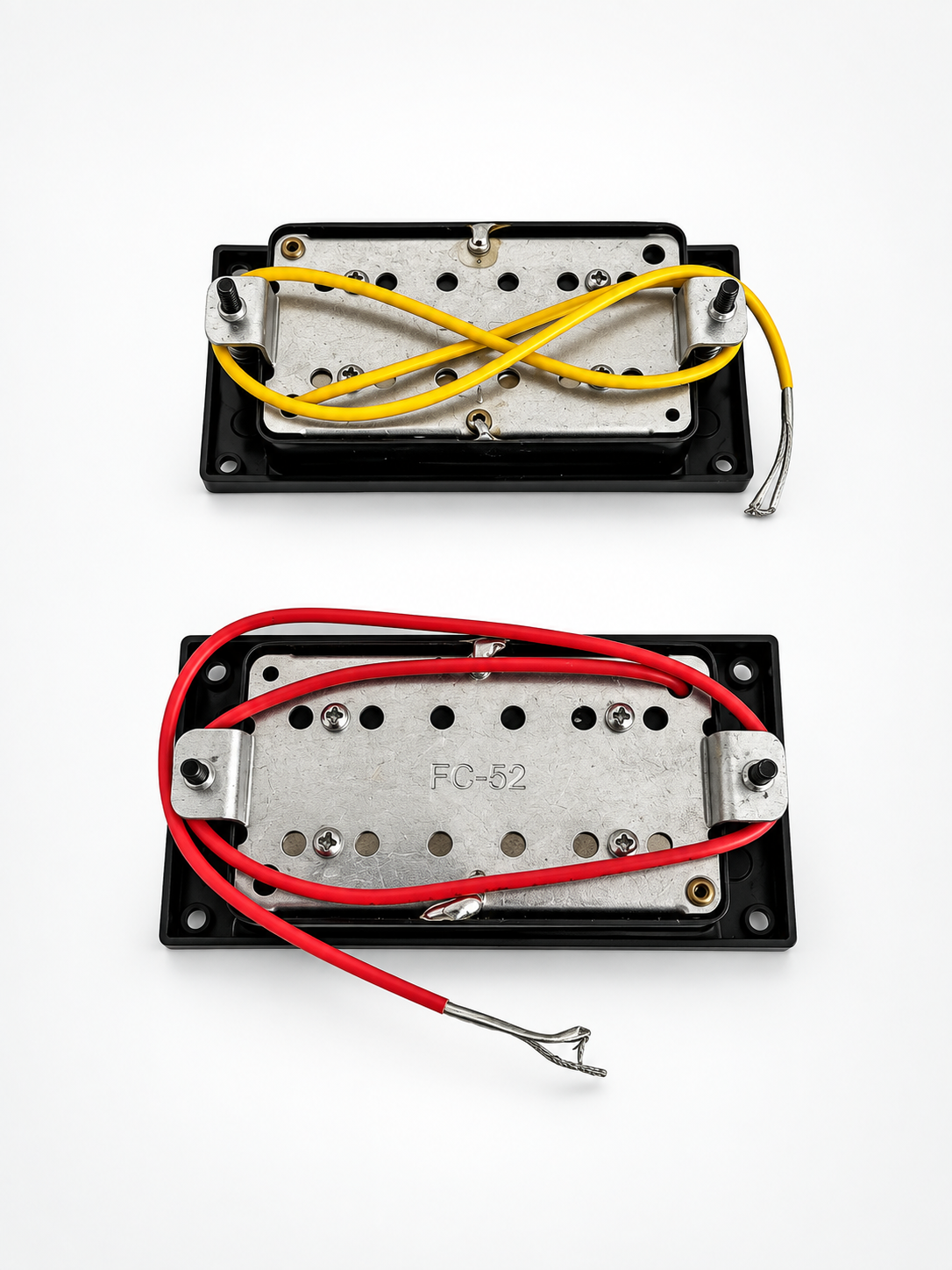

2 × Classic Alnico V Humbucker Pickups
- Vintage-style tone
- Black pickup covers
- Black pickup mounting rings
- 2 × Volume Controls
- 2 × Tone Controls
- 4 × Black Speed Knobs
-

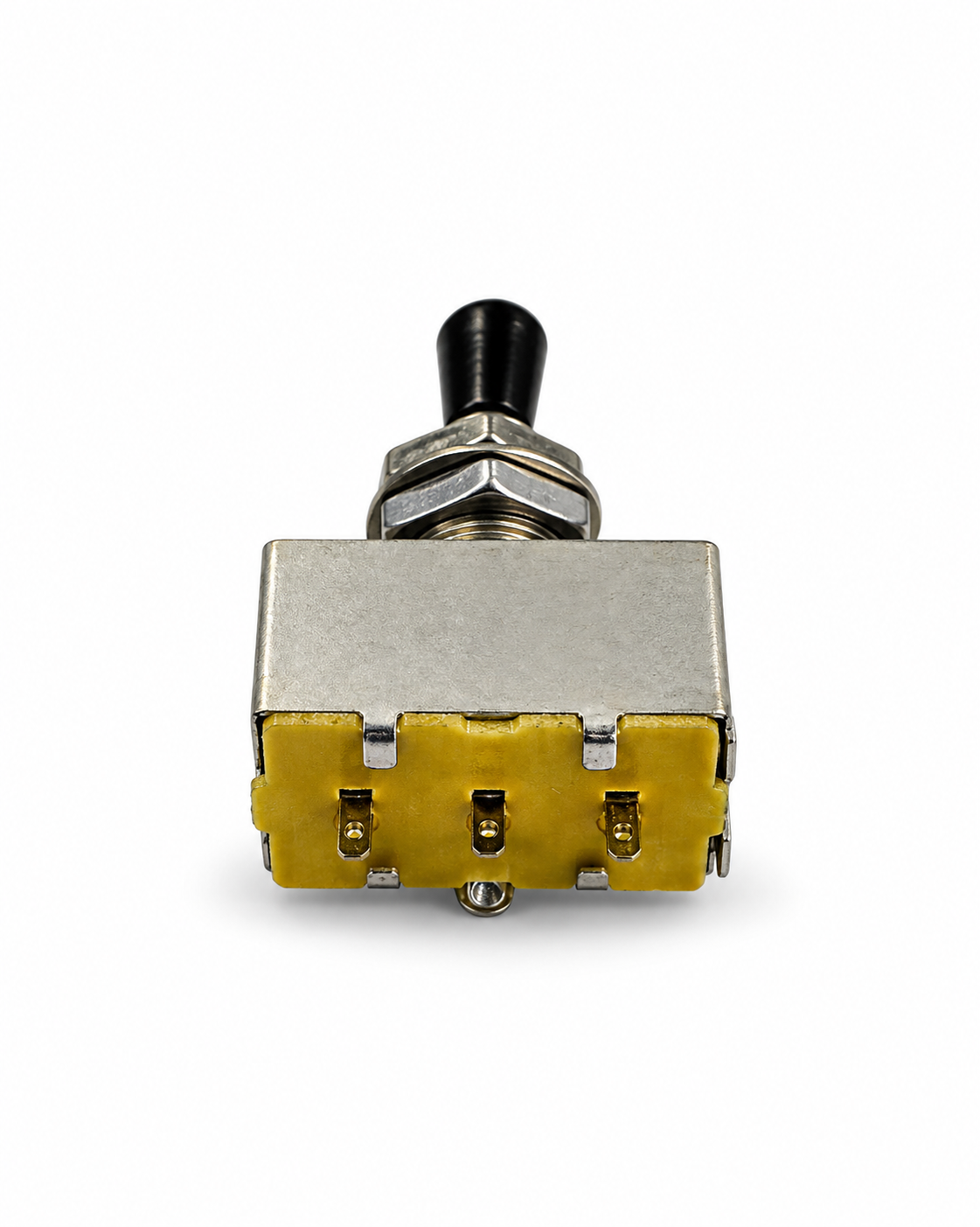

3-Way Toggle Pickup Selector Switch
- Black switch tip
- Vintage-Style Black Pickguard
- Black Tune-O-Matic Bridge
- Black Lock-Tone Stop Tailpiece

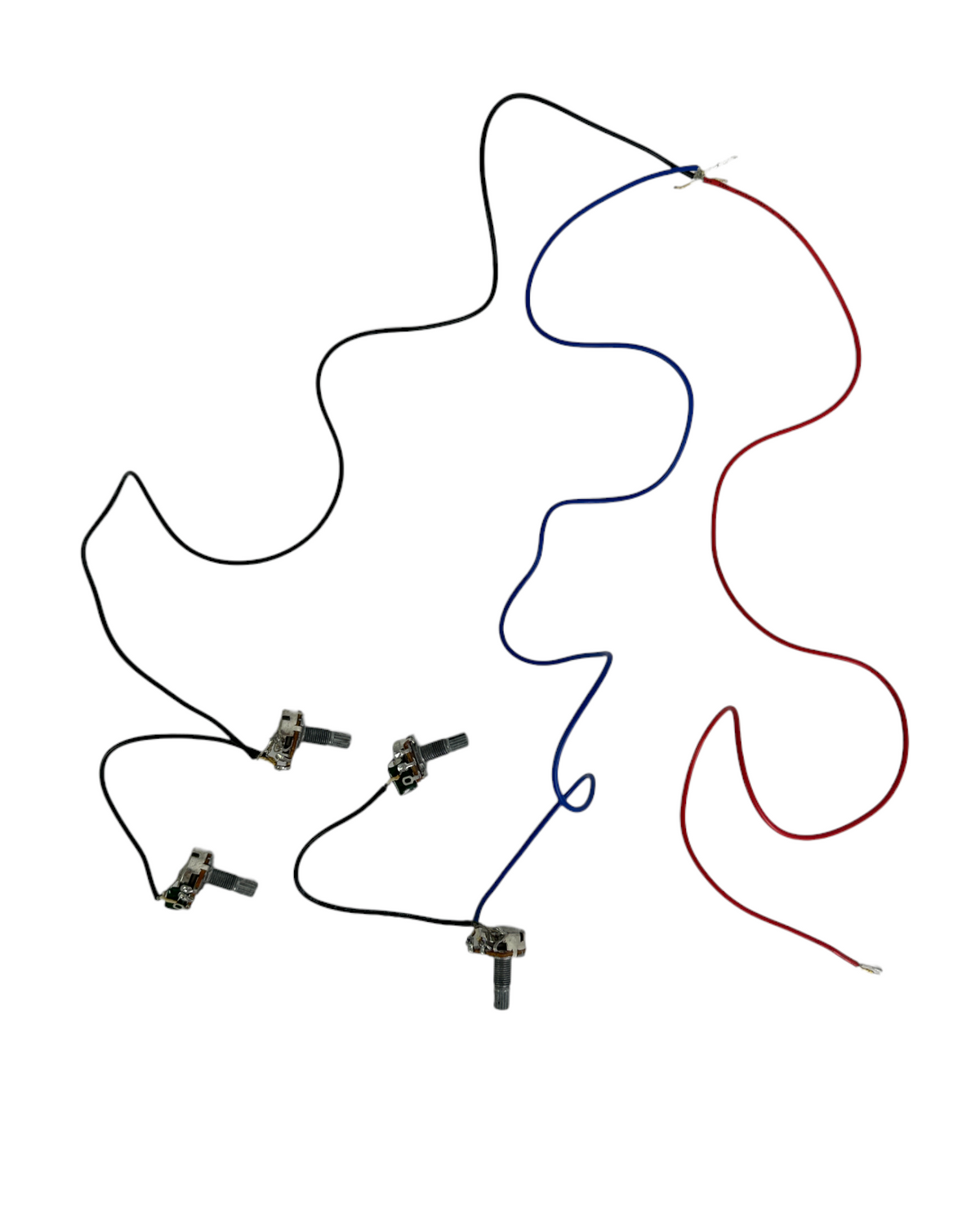

- Complete potentiometers and wiring components

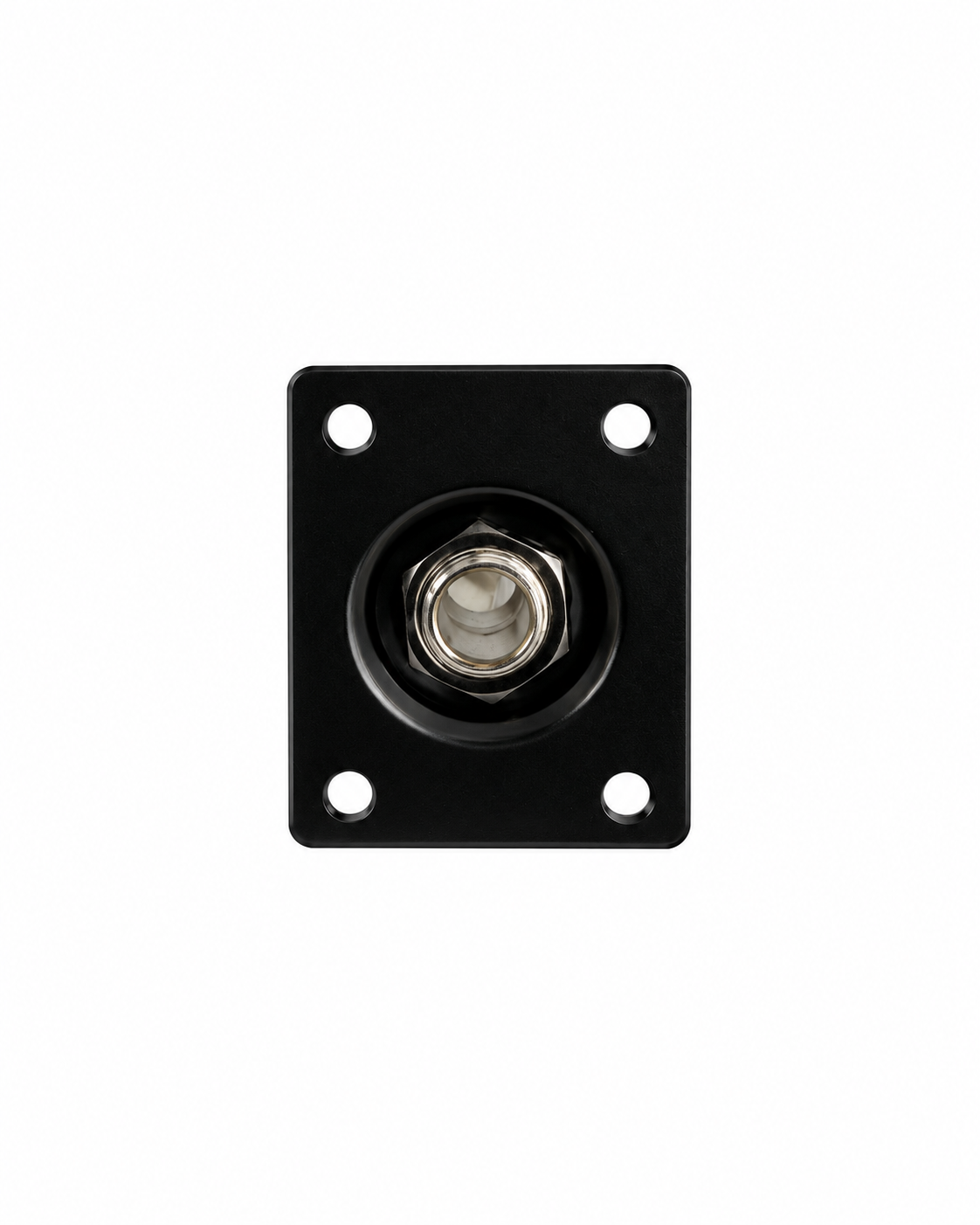

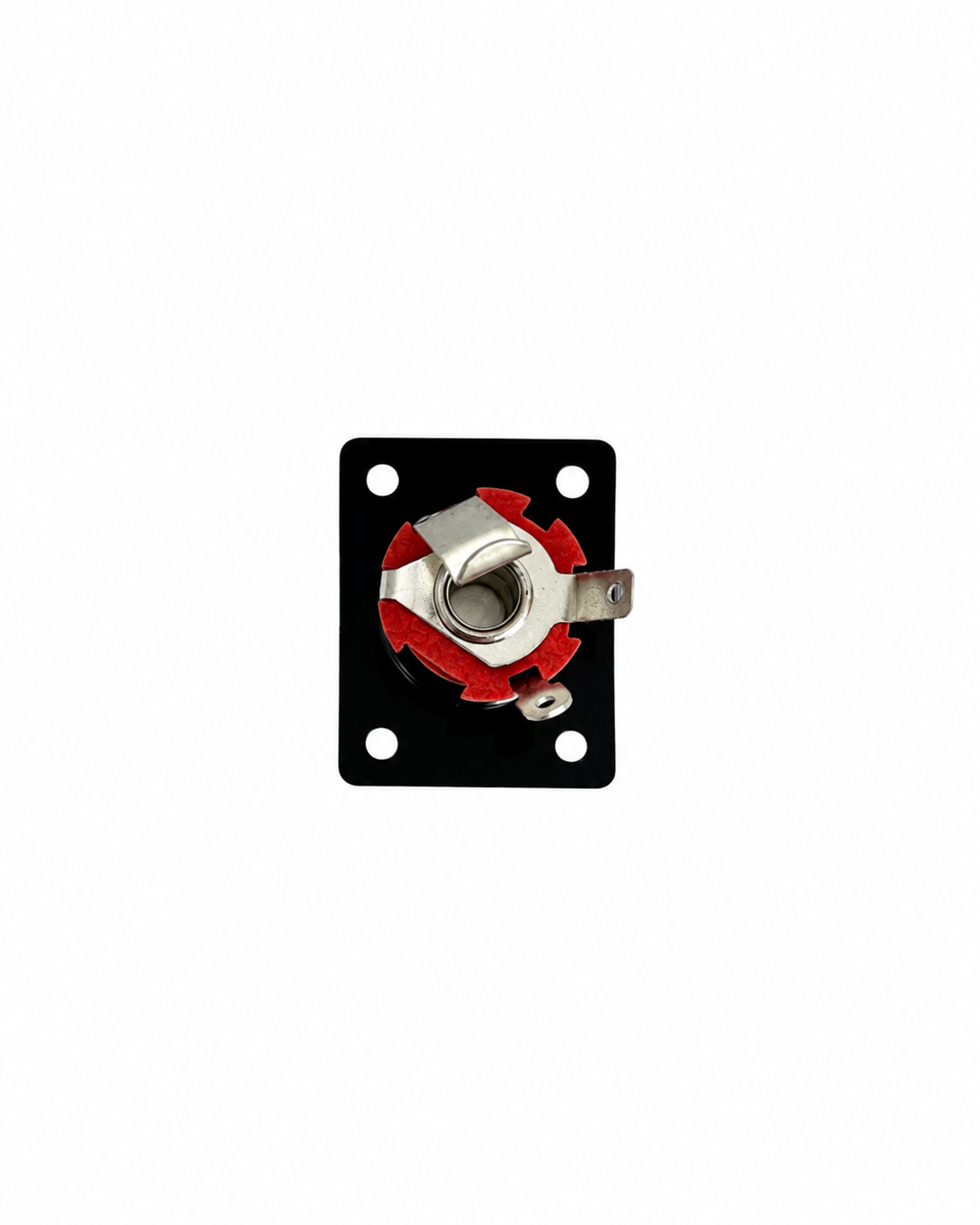

- Output jack and mounting hardware
- Pickup and control mounting hardware included
Neck Hardware
-
6 × Black 14:1 Tombstone Rotomatic Tuners
- 3-left / 3-right configuration
- Smooth and accurate tuning operation
-
Black Nut
- Nut width: 42 mm
- Black truss rod cover
- Truss rod adjustment key
Other Accessories
- 2 × Black Strap / End Pins
- Rubber protection pads
- Mounting screws
- 2 × Black Rear Control Covers / Back Plates
- Complete screw, washer and nut set
- 1 × Set of XL Guitar Strings
- Guitar lead / cable
- Wiring and installation accessories
Specifications
- Model: HLP380BK
- Guitar Style: LP-Style Electric Guitar

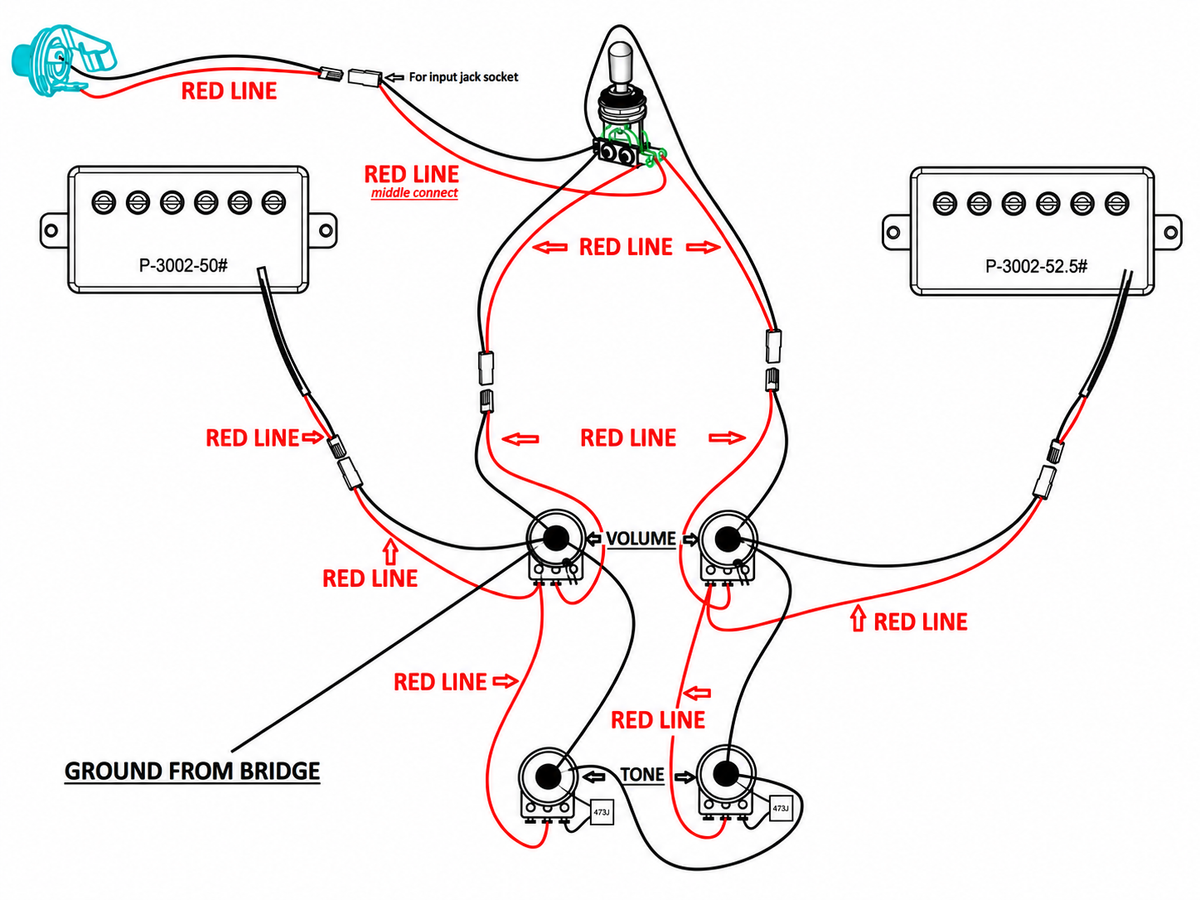

- Connections: Plug-N-Play (No Soldering Required)
- Hardware Finish: Black
- Pickups: Classic Passive Humbuckers w/ Covers
- Neck Pickup: Alnico V N-10 (Resistance: 10kΩ)
- Bridge Pickup: Alnico V B-10.4 (Resistance: 10.4kΩ)

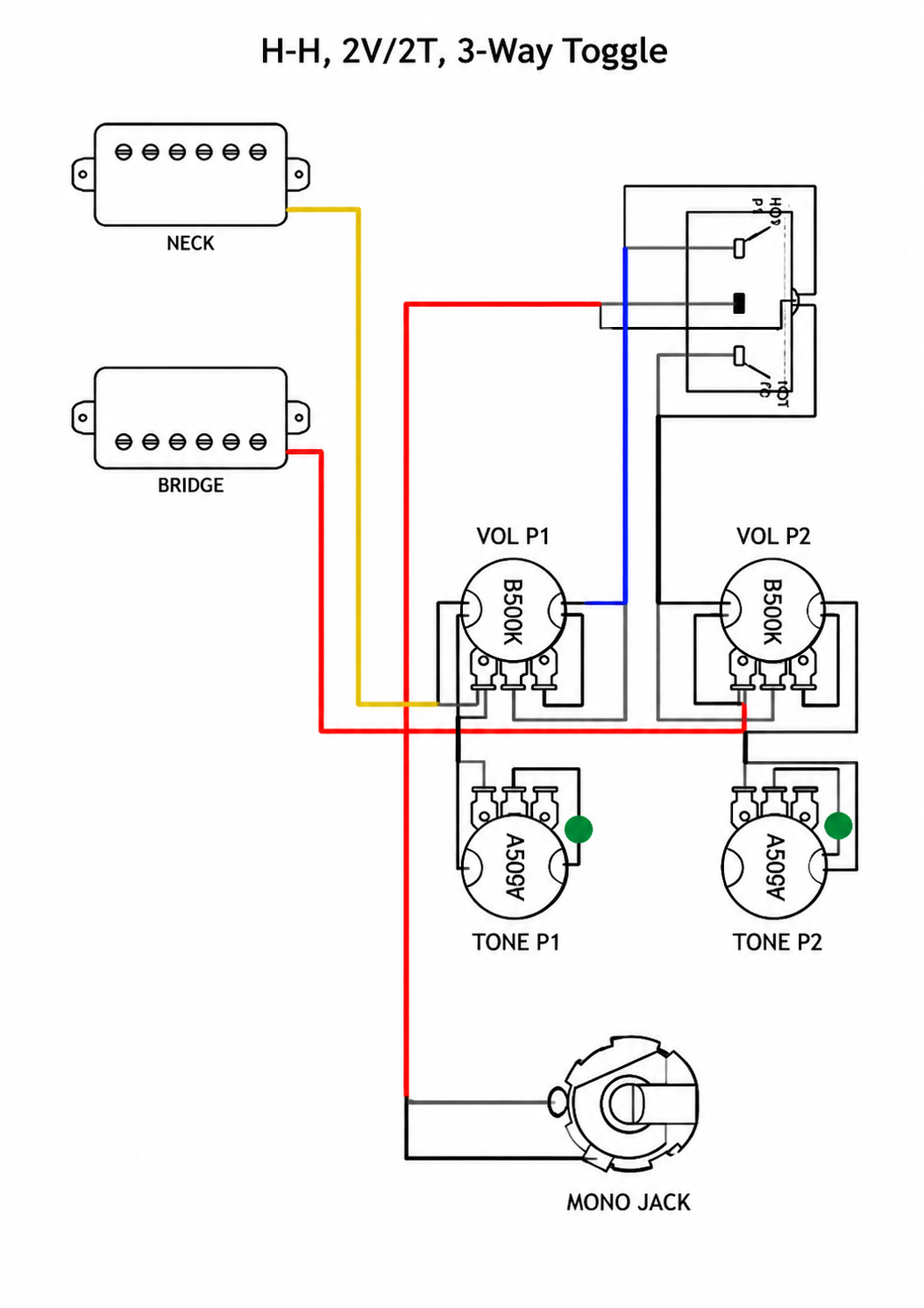

- Controls: 2 Volume, 2 Tone
- Volume Potentiometers: A500K Split-Shaft (Resistance: 500kΩ, Logarithmic Taper)
- Tone Potentiometers: B500K Split-Shaft (Resistance: 500kΩ, Linear Taper)
- Tone Capacitor: 2A473J Metallised Polyester Film (Capacitance: 0.047µF, Rating: 100V, Tolerance: ±5%)

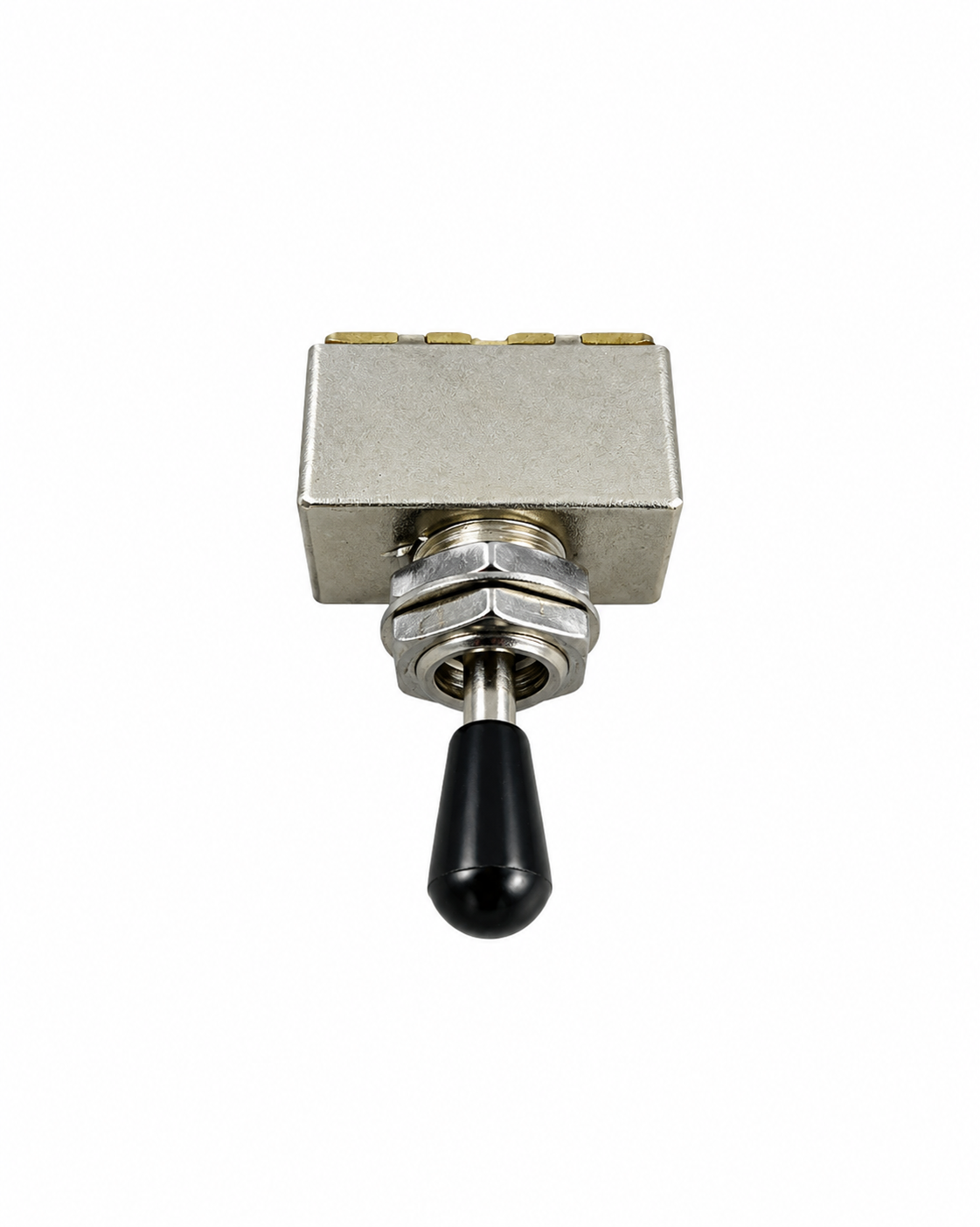

- Pickup Selector: 3-Way Box-Style Toggle Switch w/ Black Plastic Tip

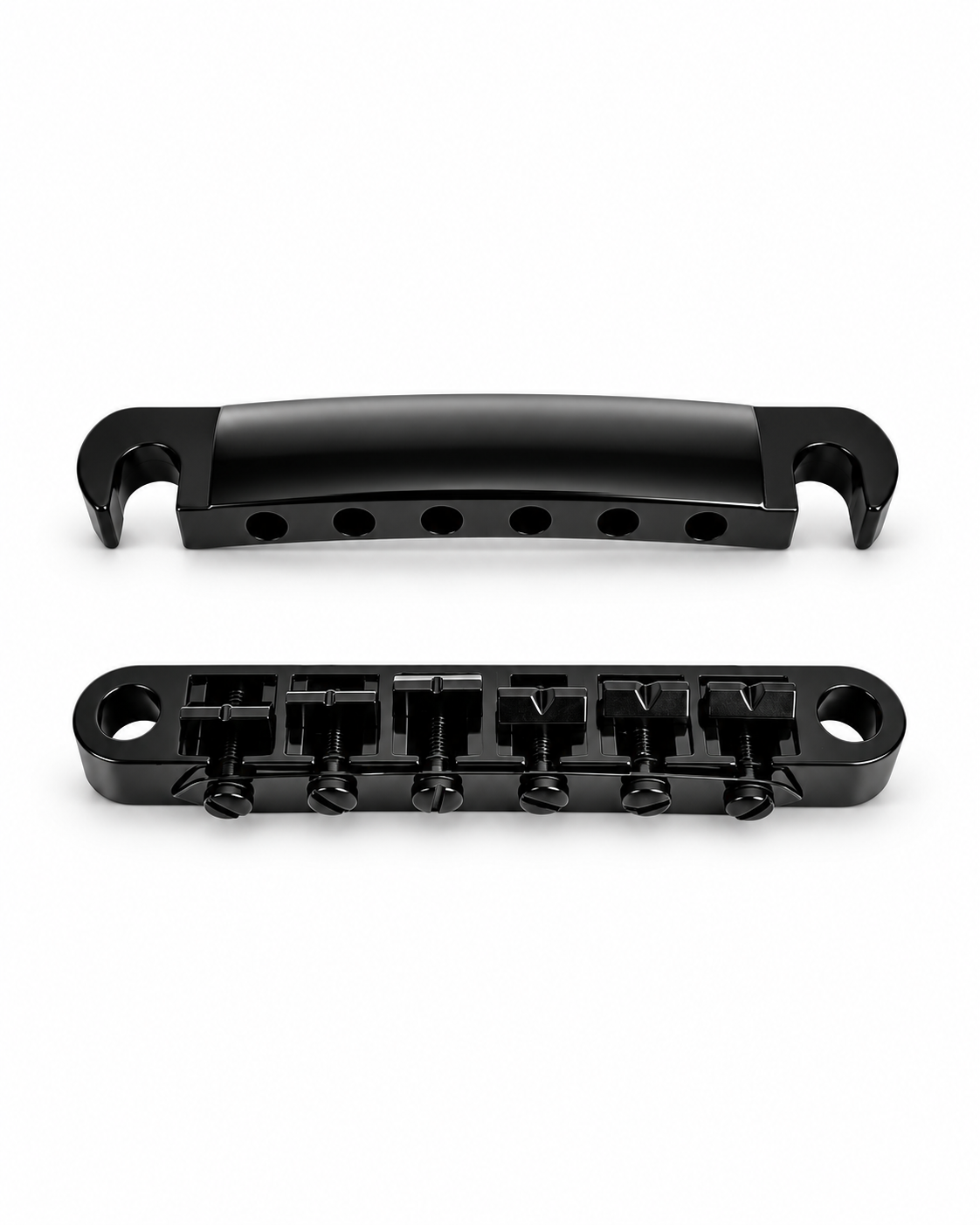

- Bridge: Tune-O-Matic
- Tailpiece: Lock-Tone Stop
- Tuners: Fully Sealed Die-Cast 14:1 Tombstone Rotomatic
- Tuner Configuration: 3 Left / 3 Right
- Nut: Black Plastic
- Nut Width: 42mm
- Scale Length: 630mm
- Pickup Configuration: H-HIdeal For
The HLP380BK is suitable for LP-style DIY guitar kits, custom guitar builds, replacement hardware, restoration projects, upgrades and spare parts.
Please check the measurements, mounting-hole positions, and compatibility with your guitar before ordering, particularly when fitting the parts to a guitar from another manufacturer.
