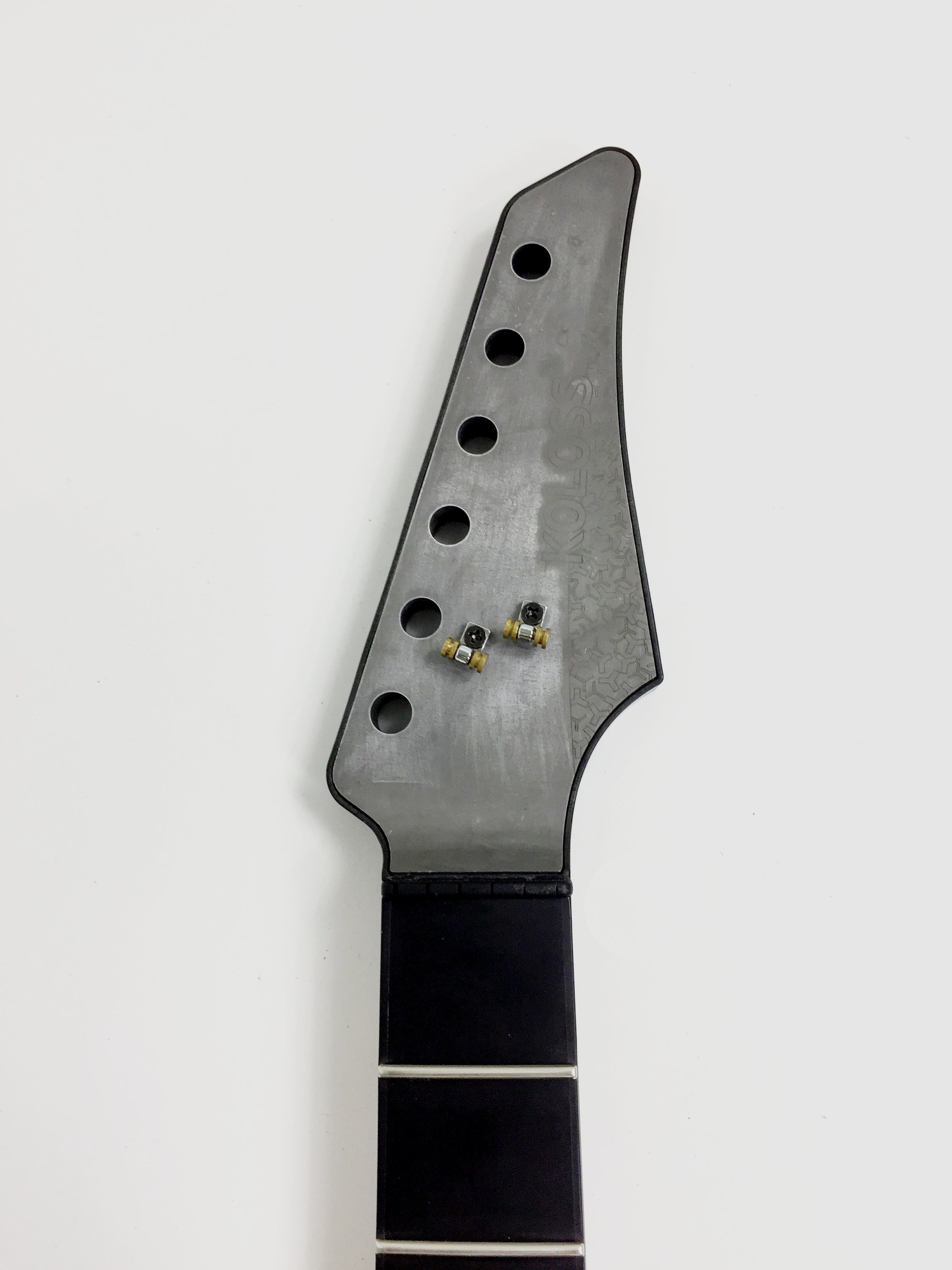

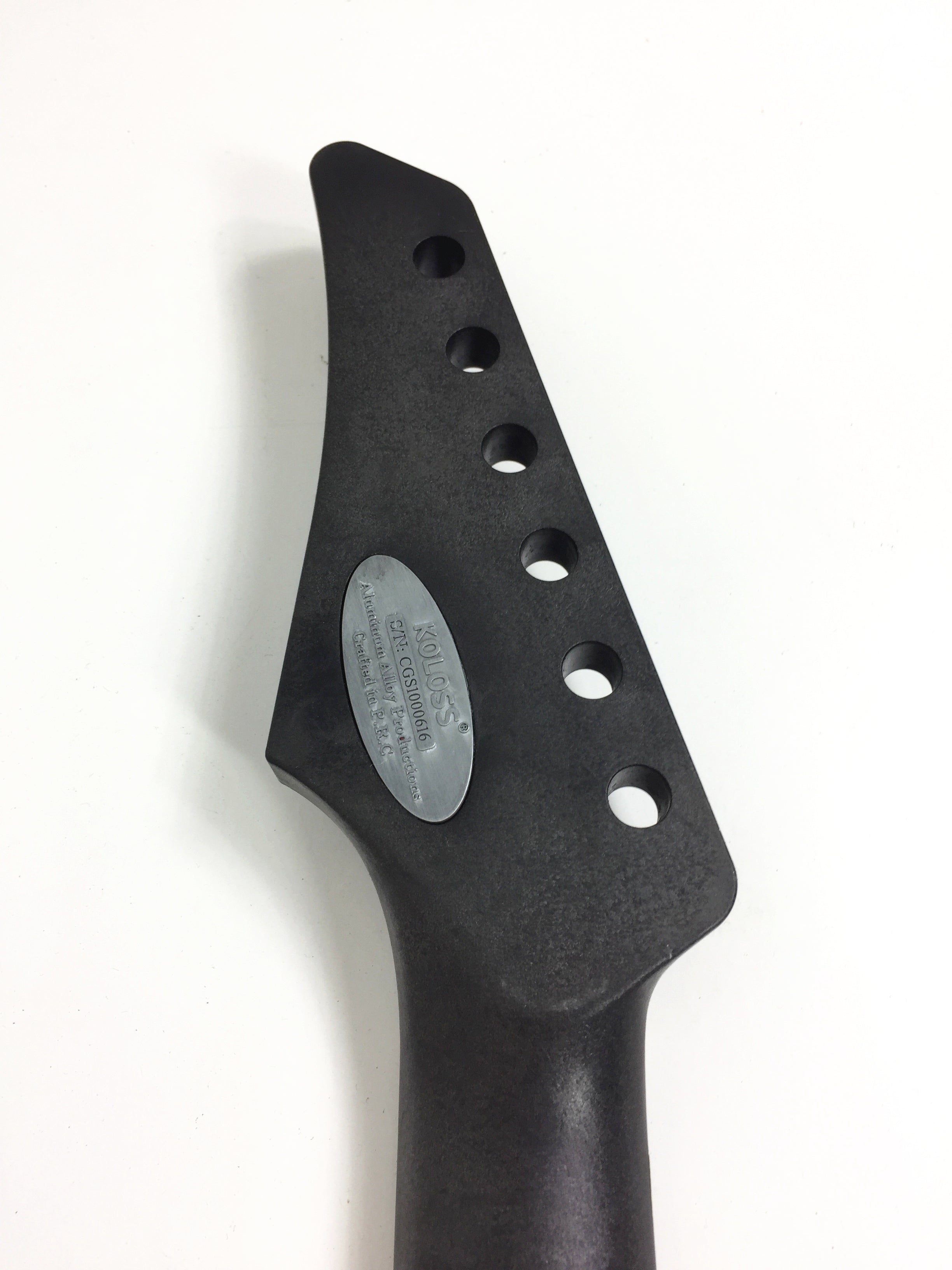

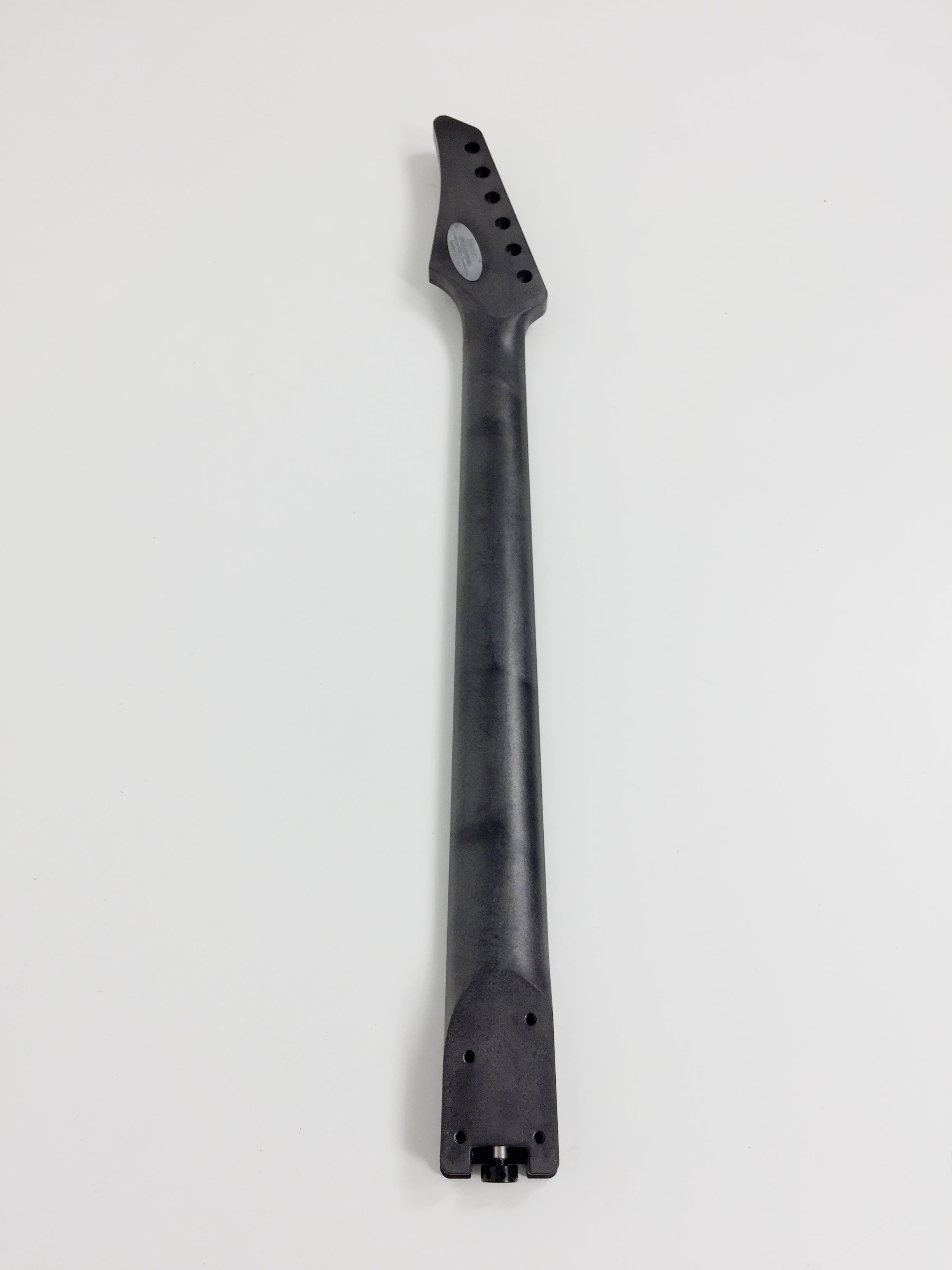

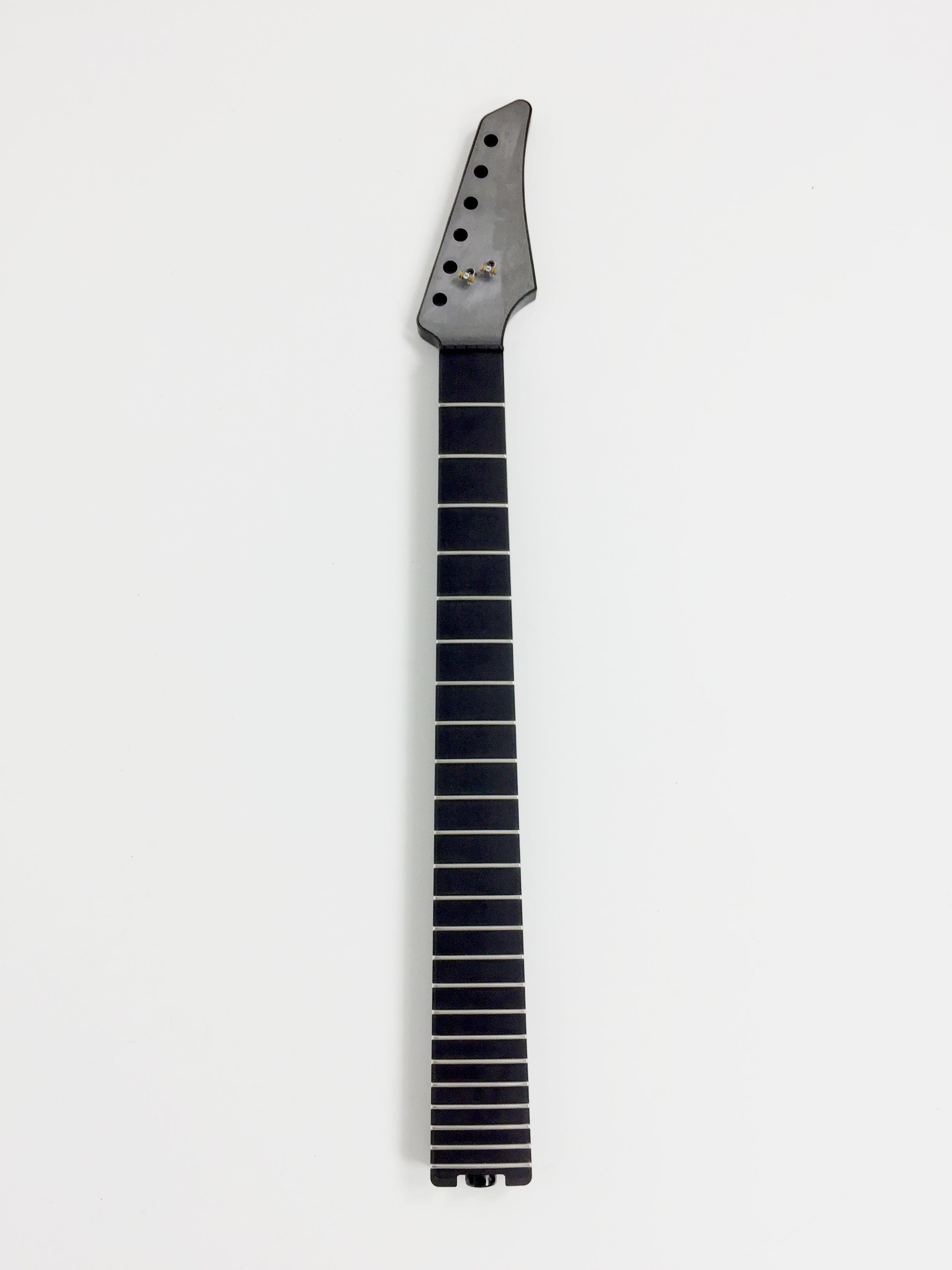

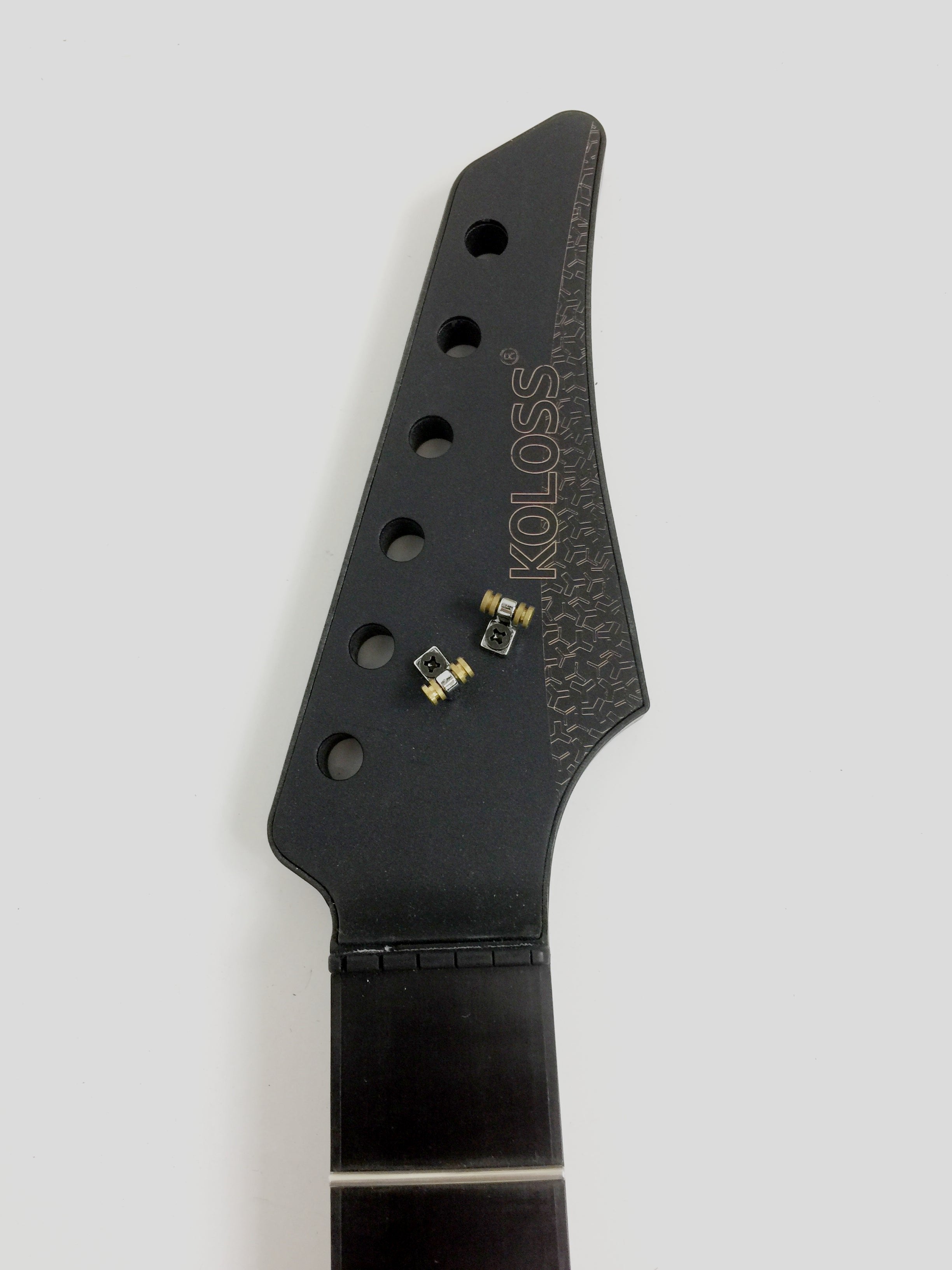

KOLOSS GT-4 NECK

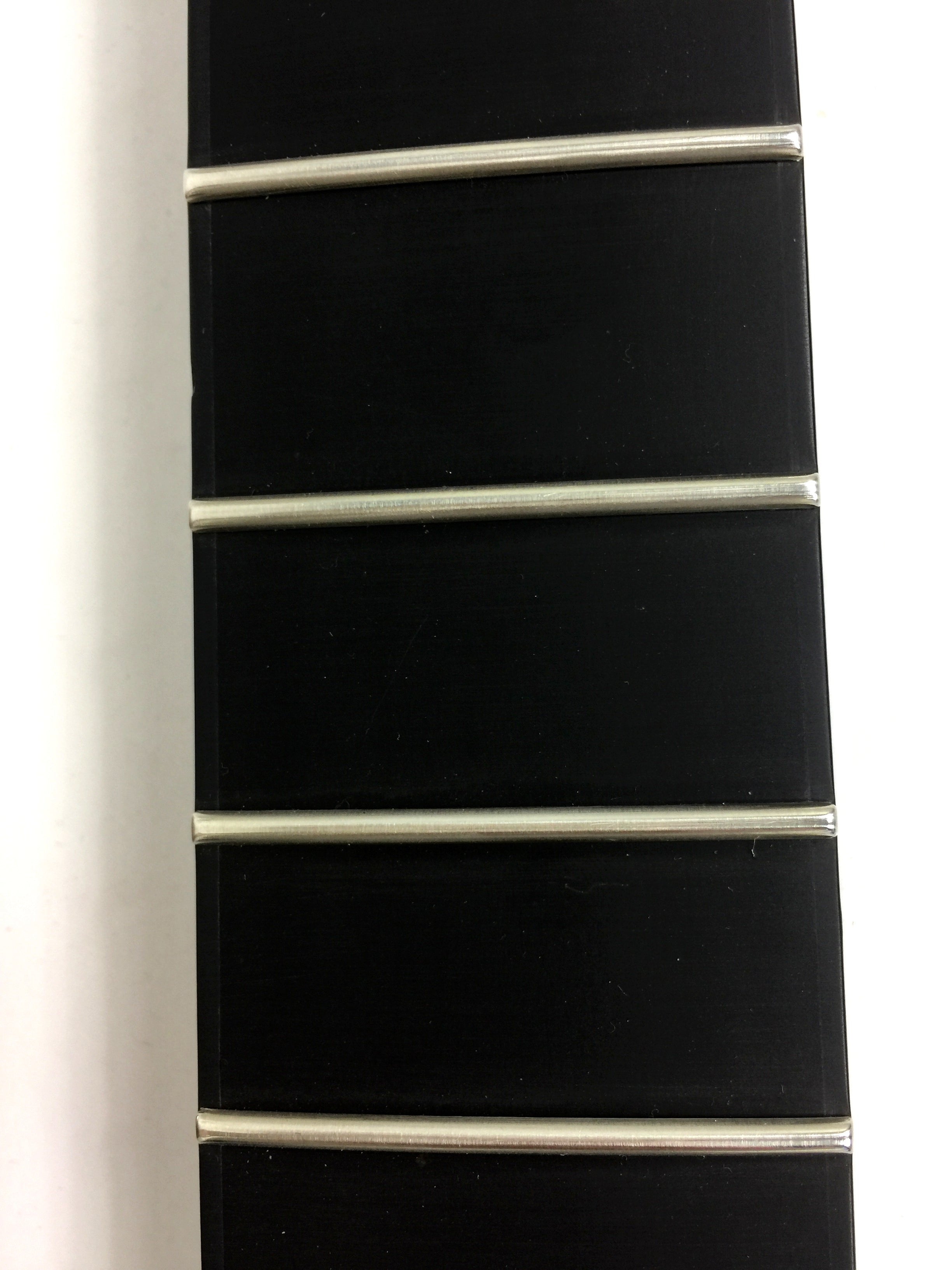

All challenging machining, cutting and shaping is already done professionally, as well as fret levelling and dressing.
Specifications:
Neck radius 15"
Scale 25.19” (640mm)
Nut Width 1.65” (42mm)

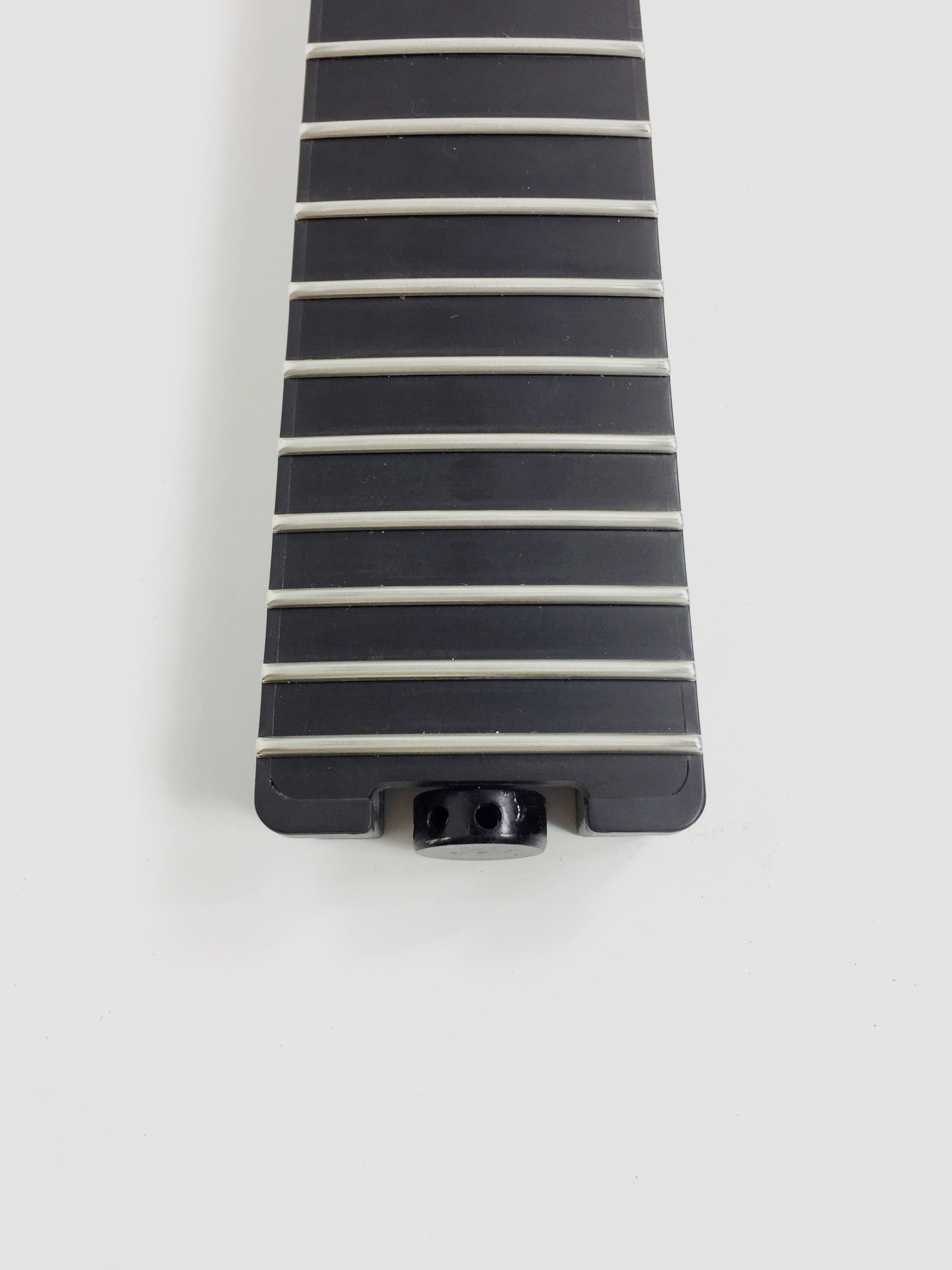

Fret 24
Tuner hole 10mm

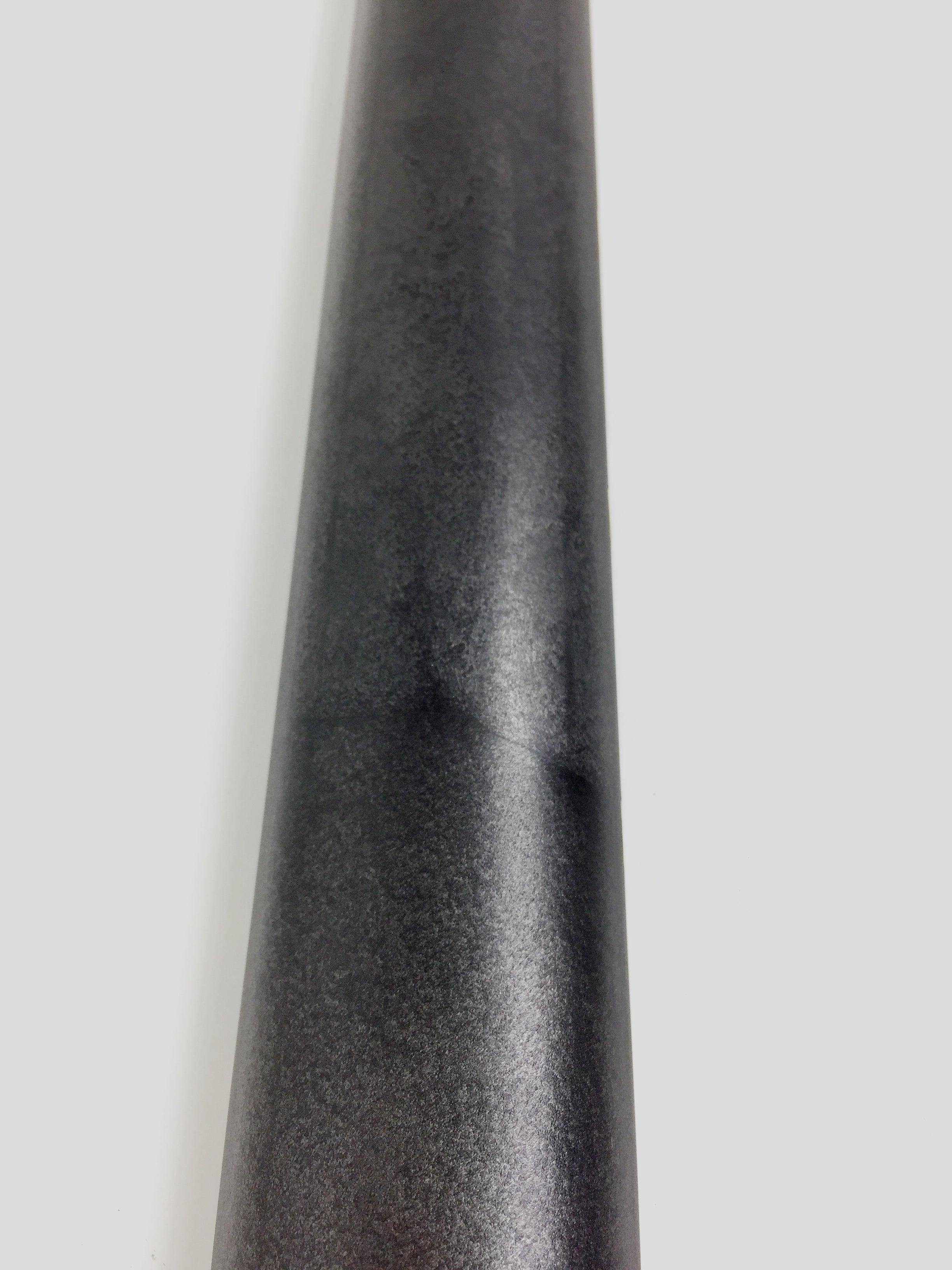

Neck Material Solid carbon teflon polymer
Fingerboard Solid carbon teflon polymer
Total neck length 687mm (Approximate)
Neck Weight 850g (Approximate)
Fret Height 1.4mm(Approximate)
Fret Width 2.7mm(Approximate)

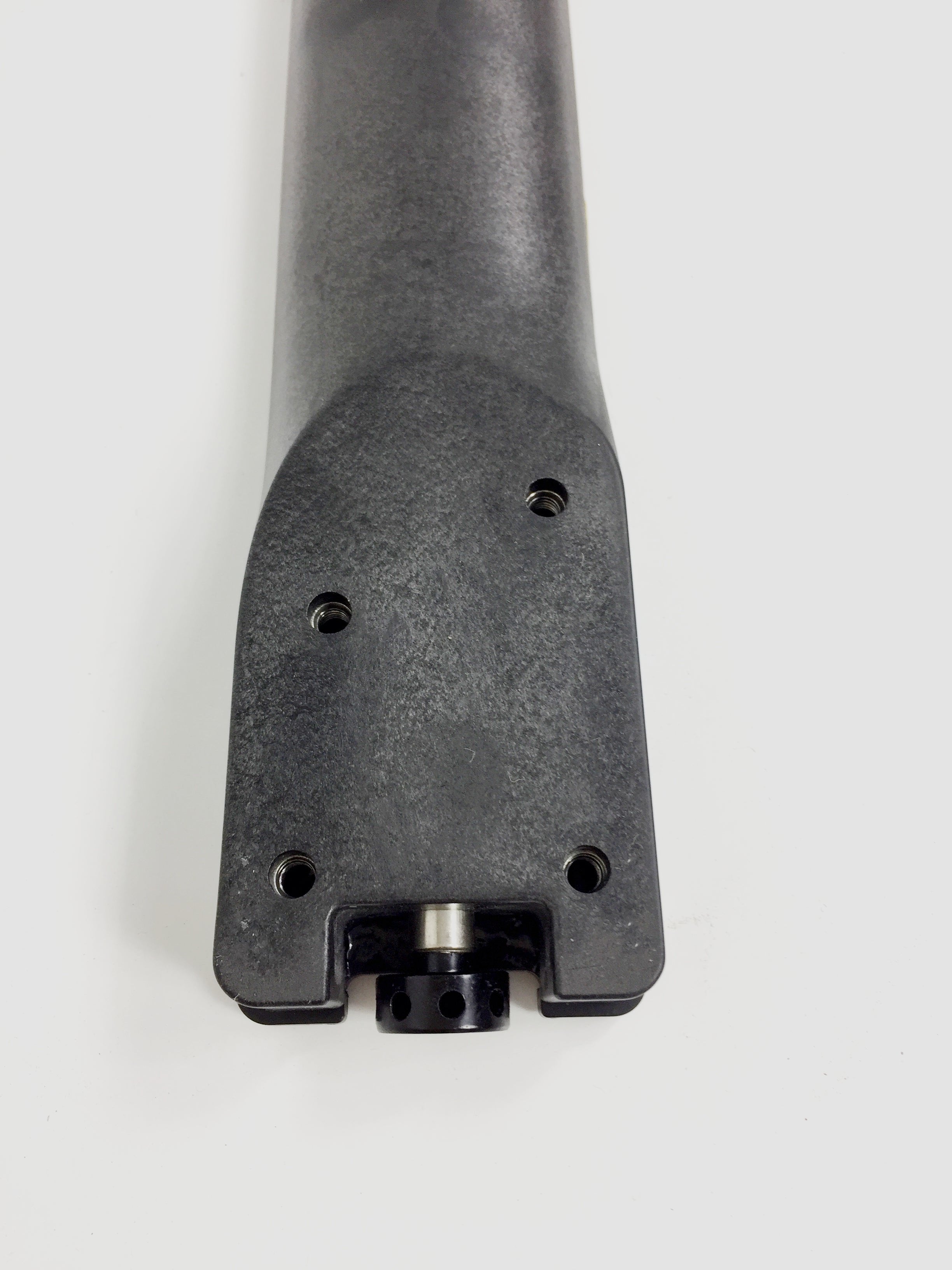

Connection Bolt-on (M5 Thread)
Length from Nut to Heel 498mm / 19.6in

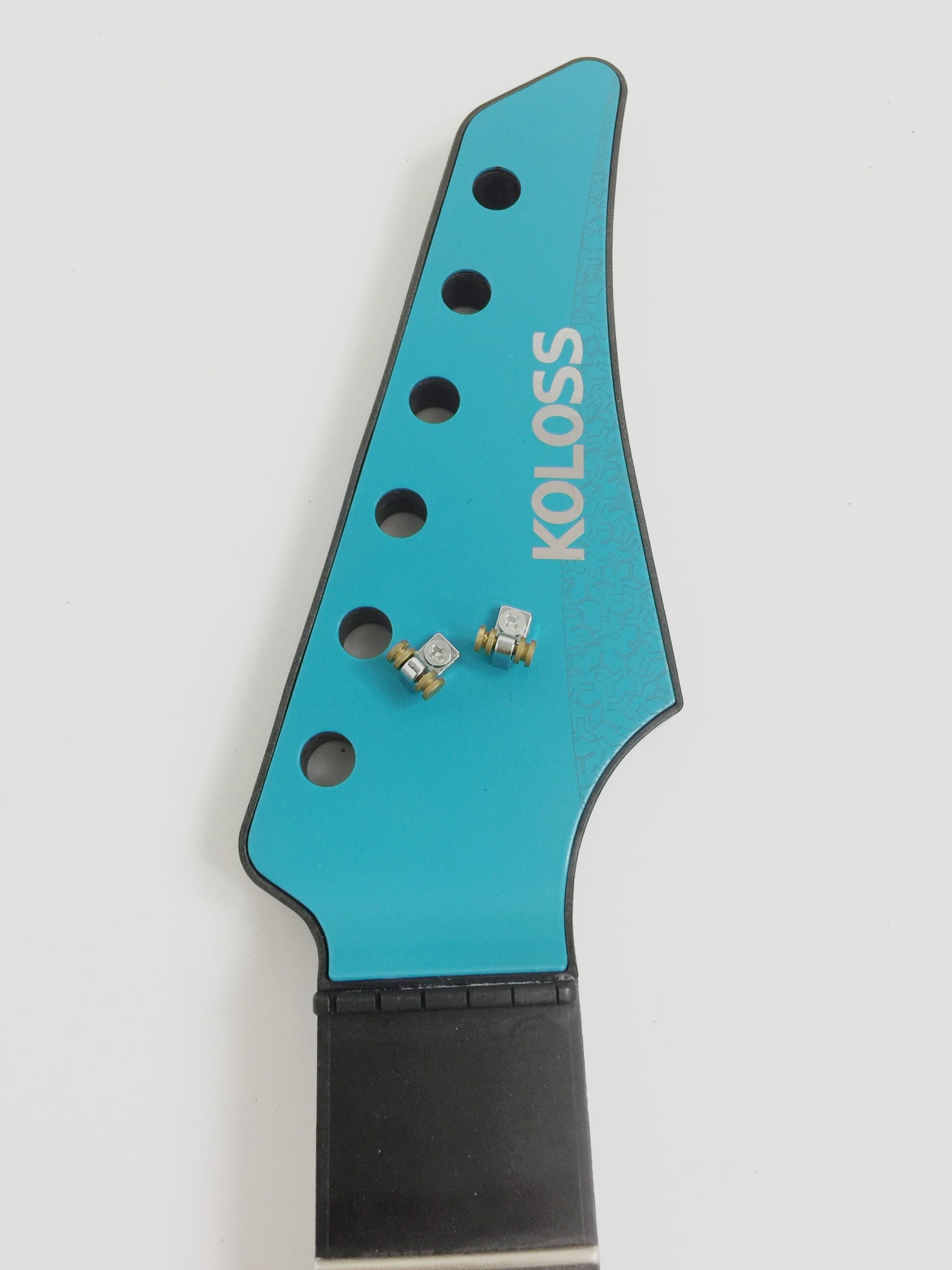

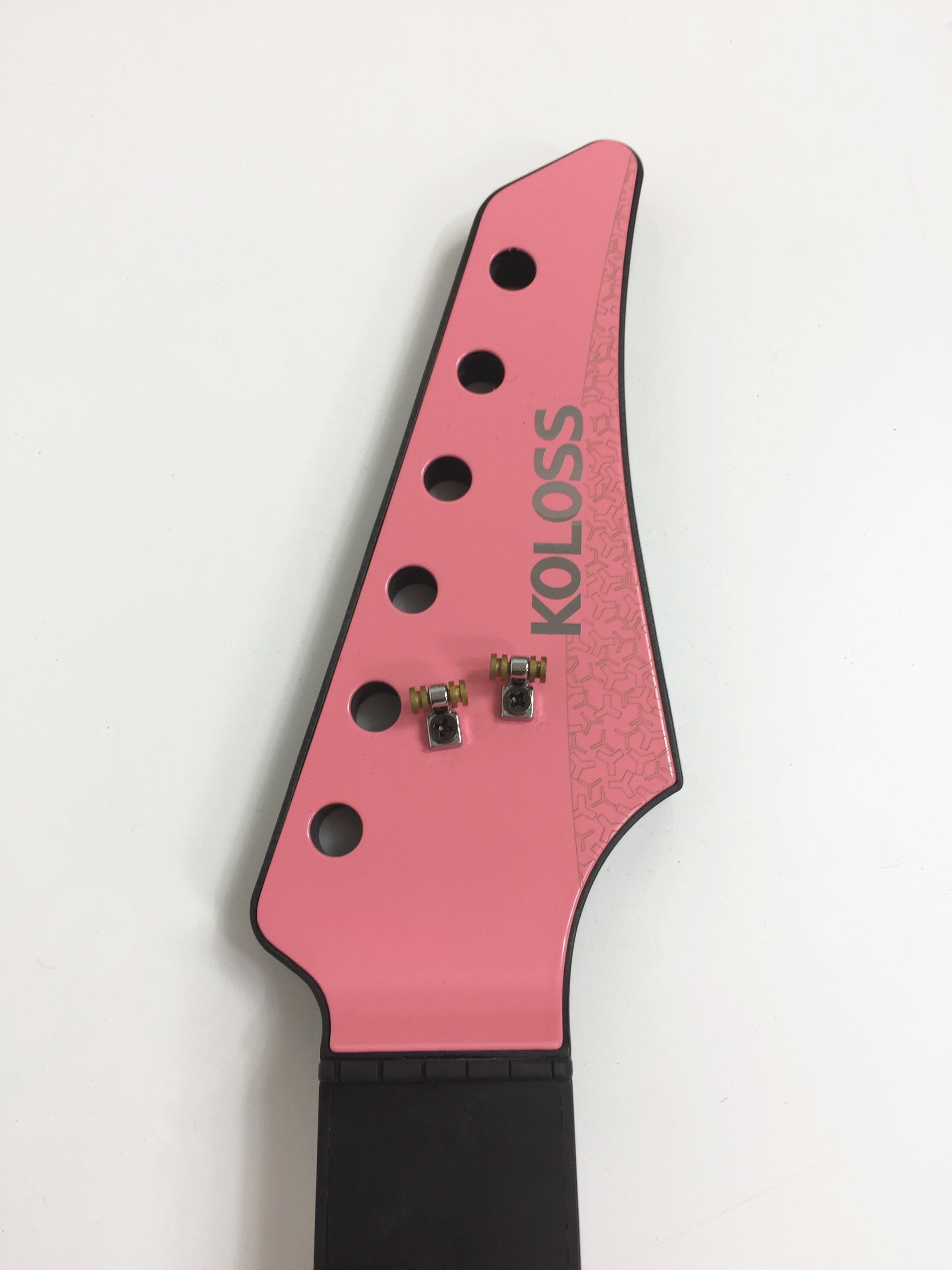

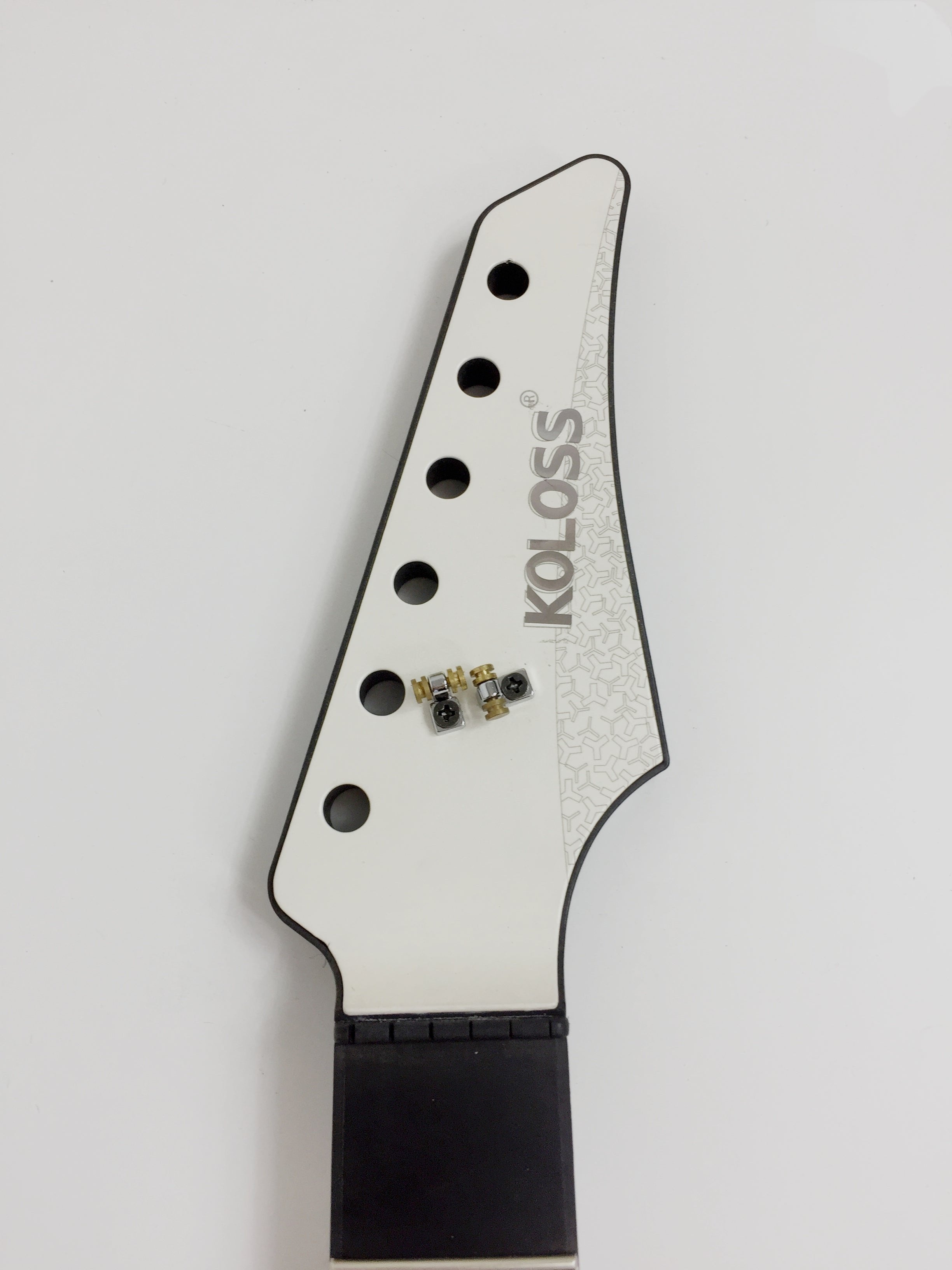

Included Black Nut x1; String Tree x2
Dimensions:
| Koloss Guitar Neck Measurements | Measurements in mm ± 1mm | measurements in Inches ± .04in |
| Base of Neck | ||
| Lower Width | 56 | 2.2 |
| Upper Width | 54 | 2.12 |
| Length | 96 | 3.77 |
| Length (@ beginning of curve) | 60 | 2.36 |

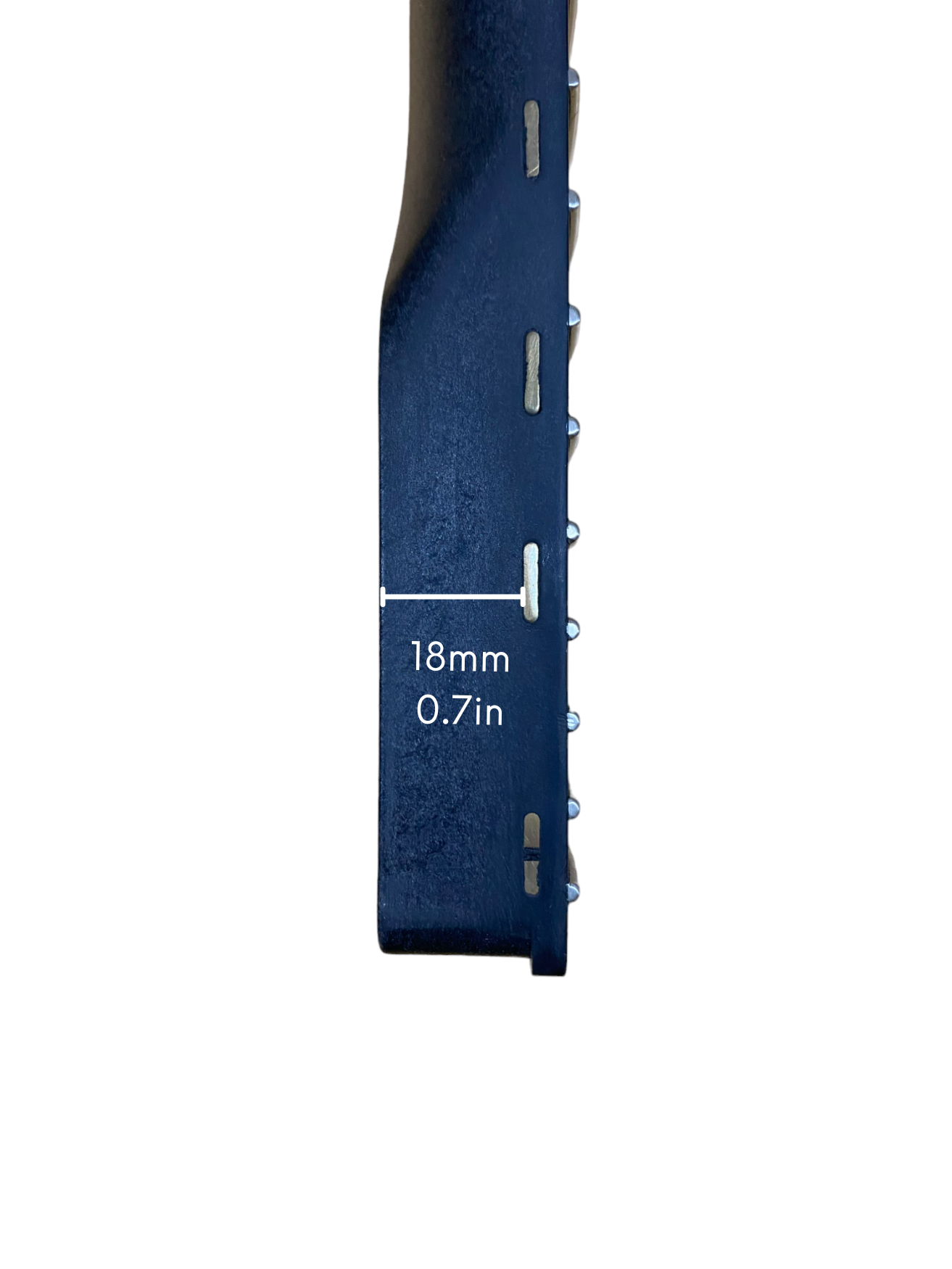

| Height (Excluding Fretboard) | 18 | 0.7 |
| Height (Including Fretboard) | 23 | 0.9 |

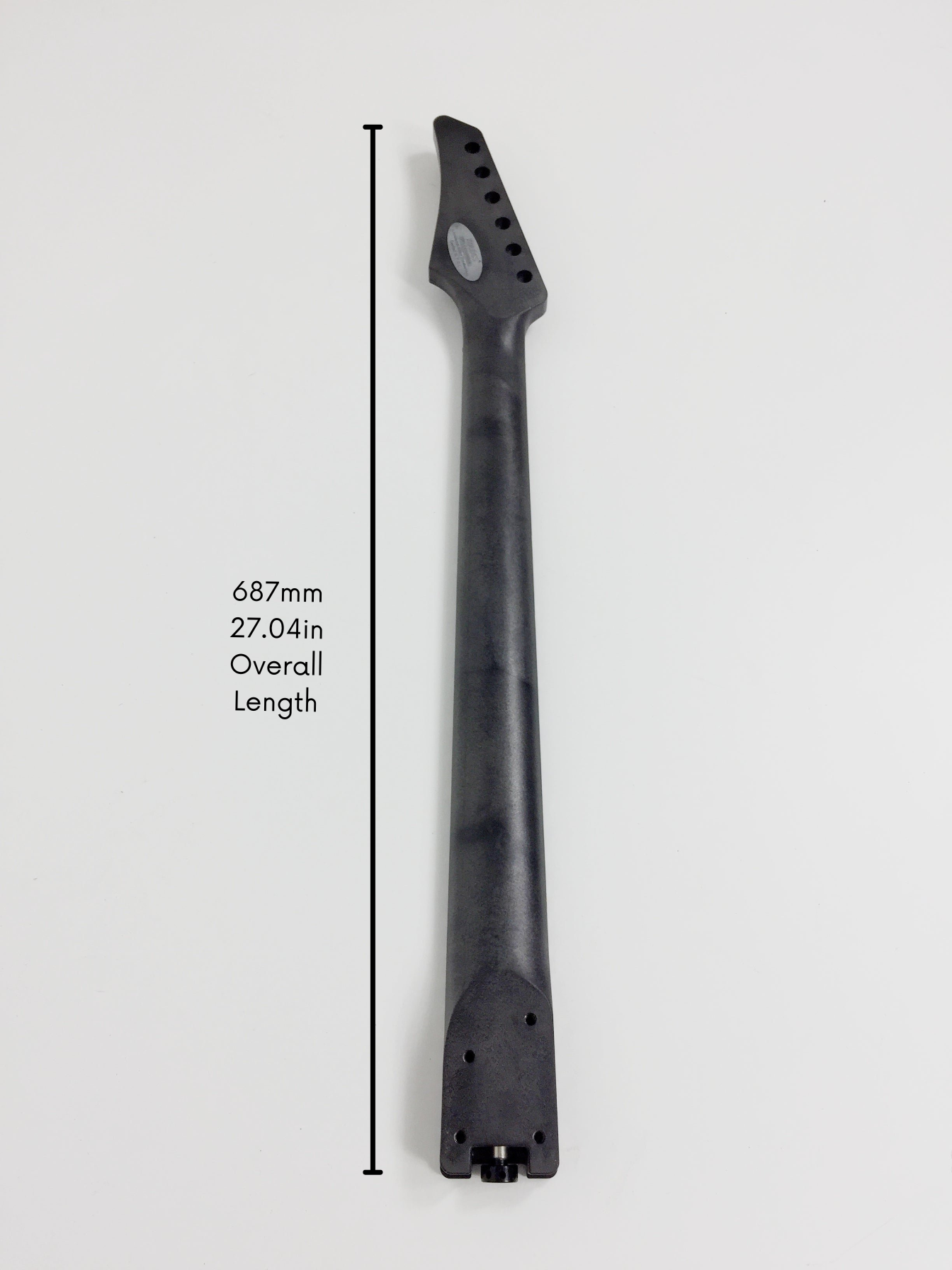

| Length of entire Neck | 687 | 27.04 |

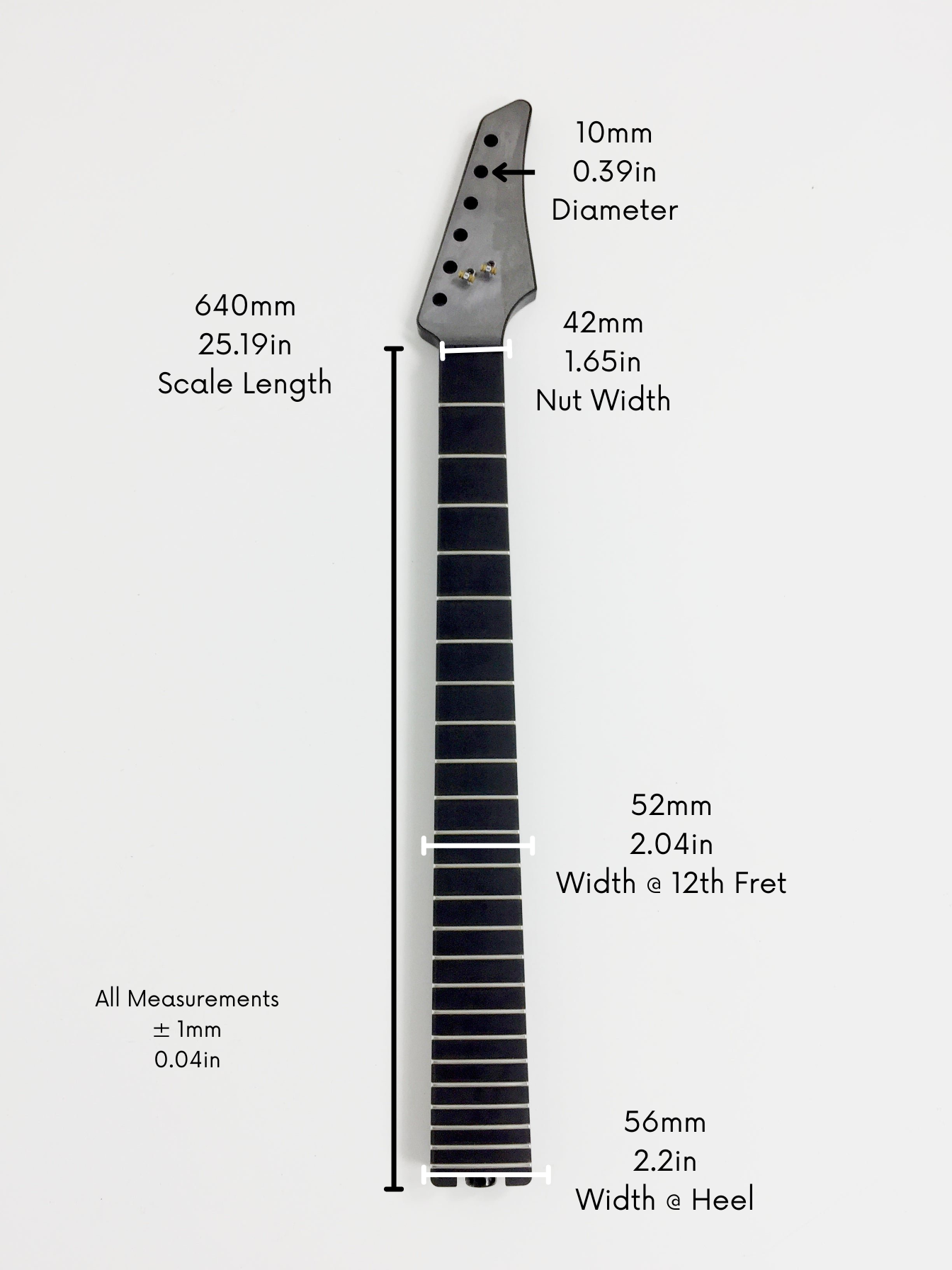

| Scale Length | 640 | 25.19 |
| Width @ Nut | 42 | 1.65 |
| Width @ 12th Fret | 52 | 2.04 |
| Width @ Heel | 56 | 2.2 |
| Diameter of Tuning holes | 10 | 0.39 |

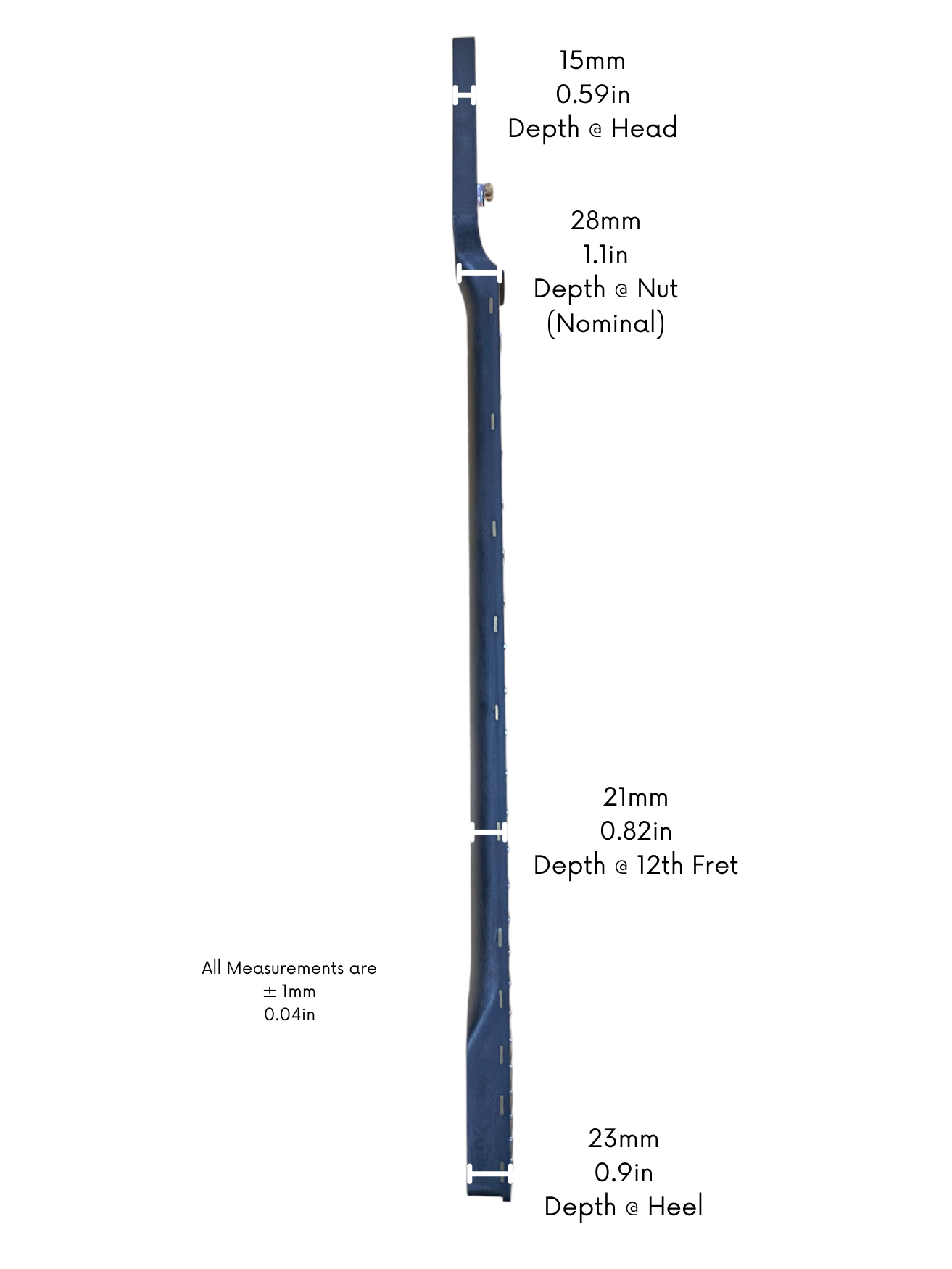

| Depth of Head | 15 | 0.59 |
| Depth of Nut (Nominal) | 28 | 1.1 |
| Depth @ 12th Fret | 21 | 0.82 |
| Depth @ Heel | 23 | 0.9 |
