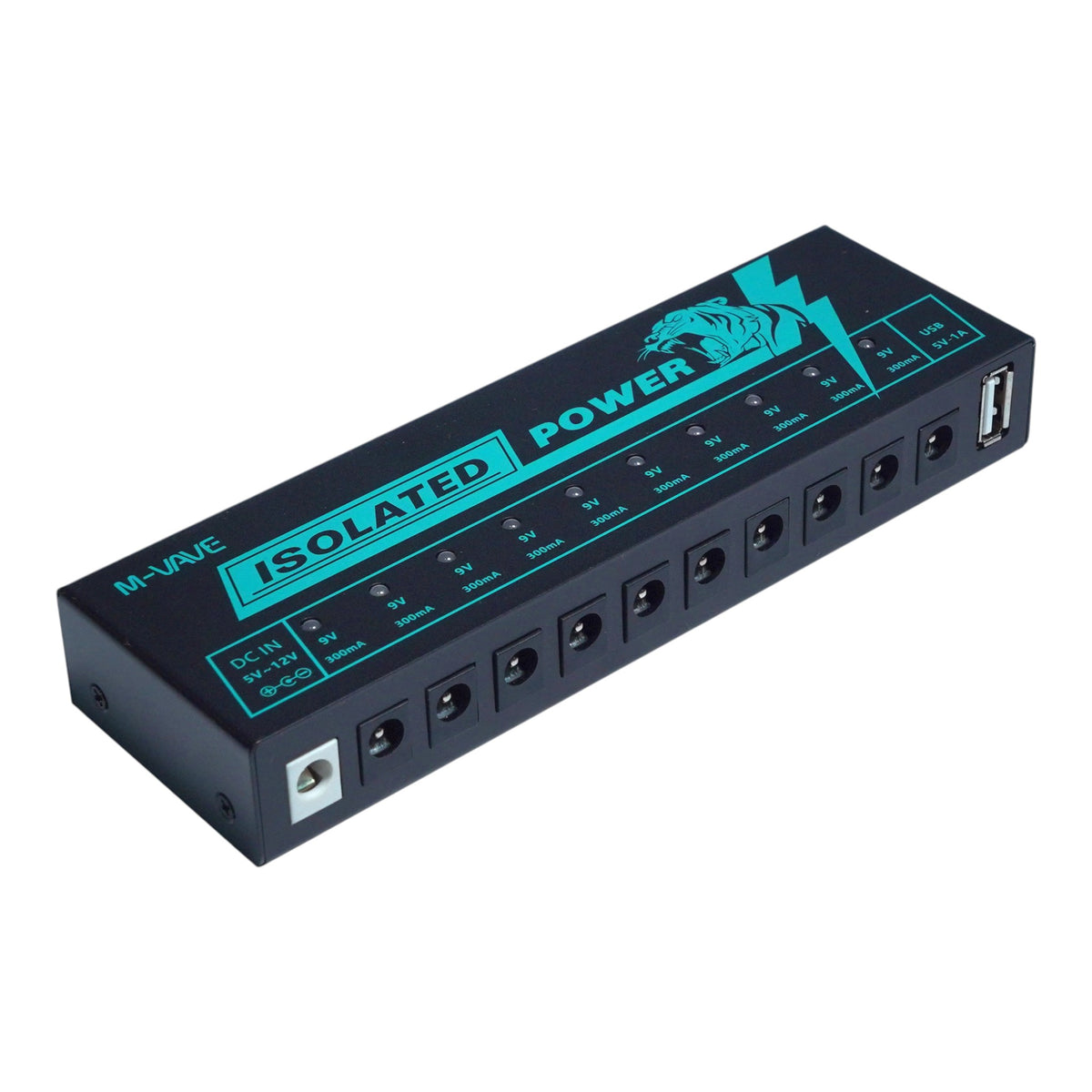

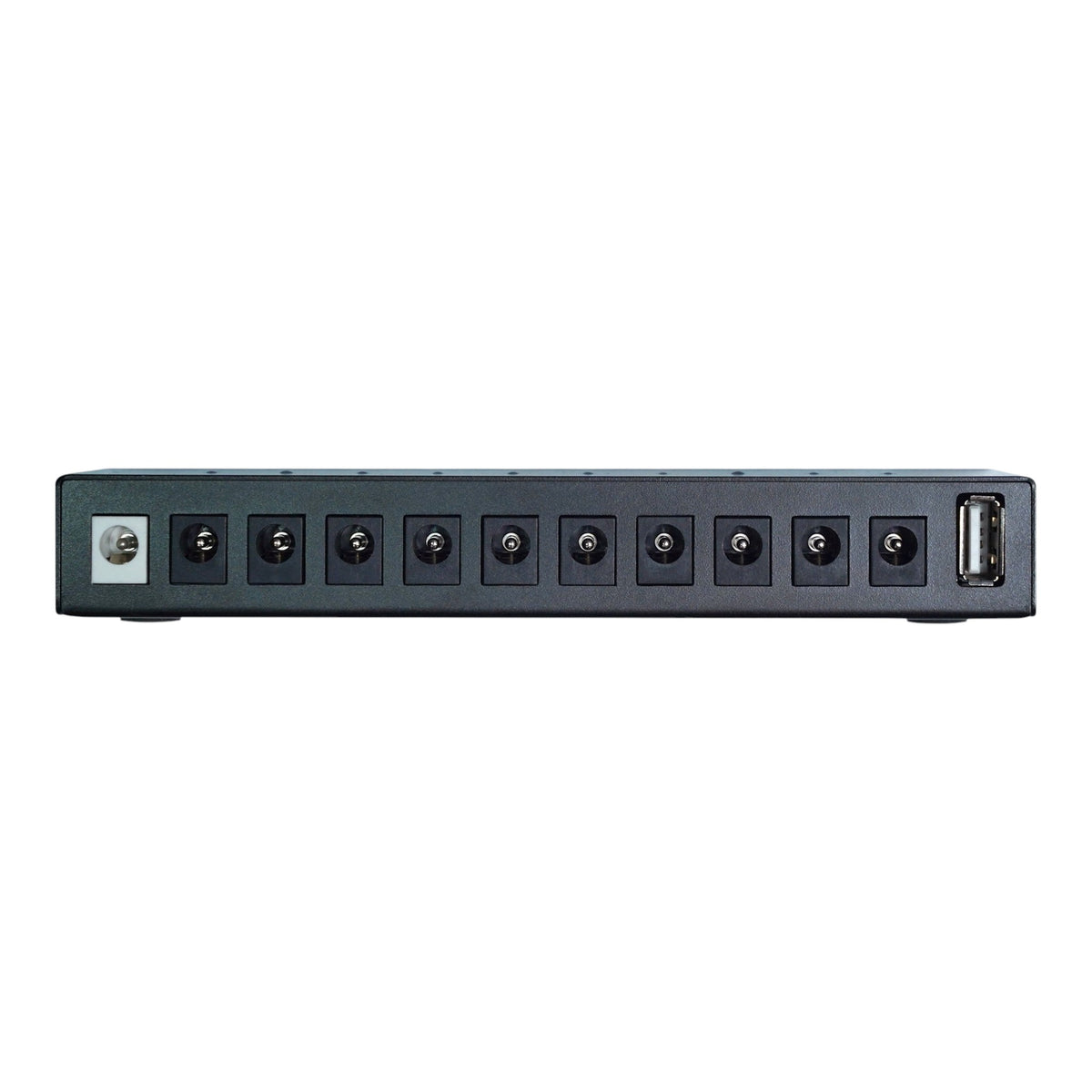

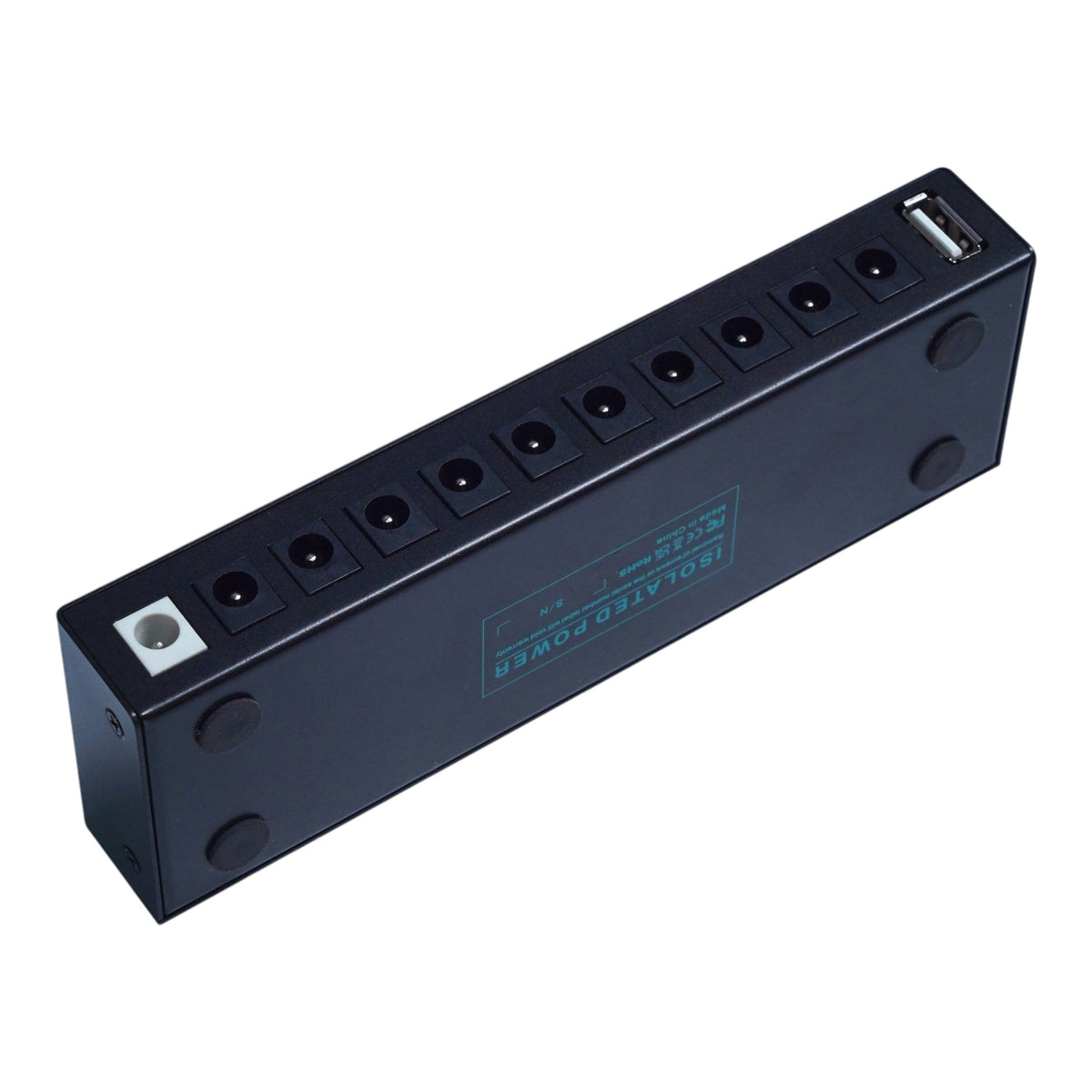

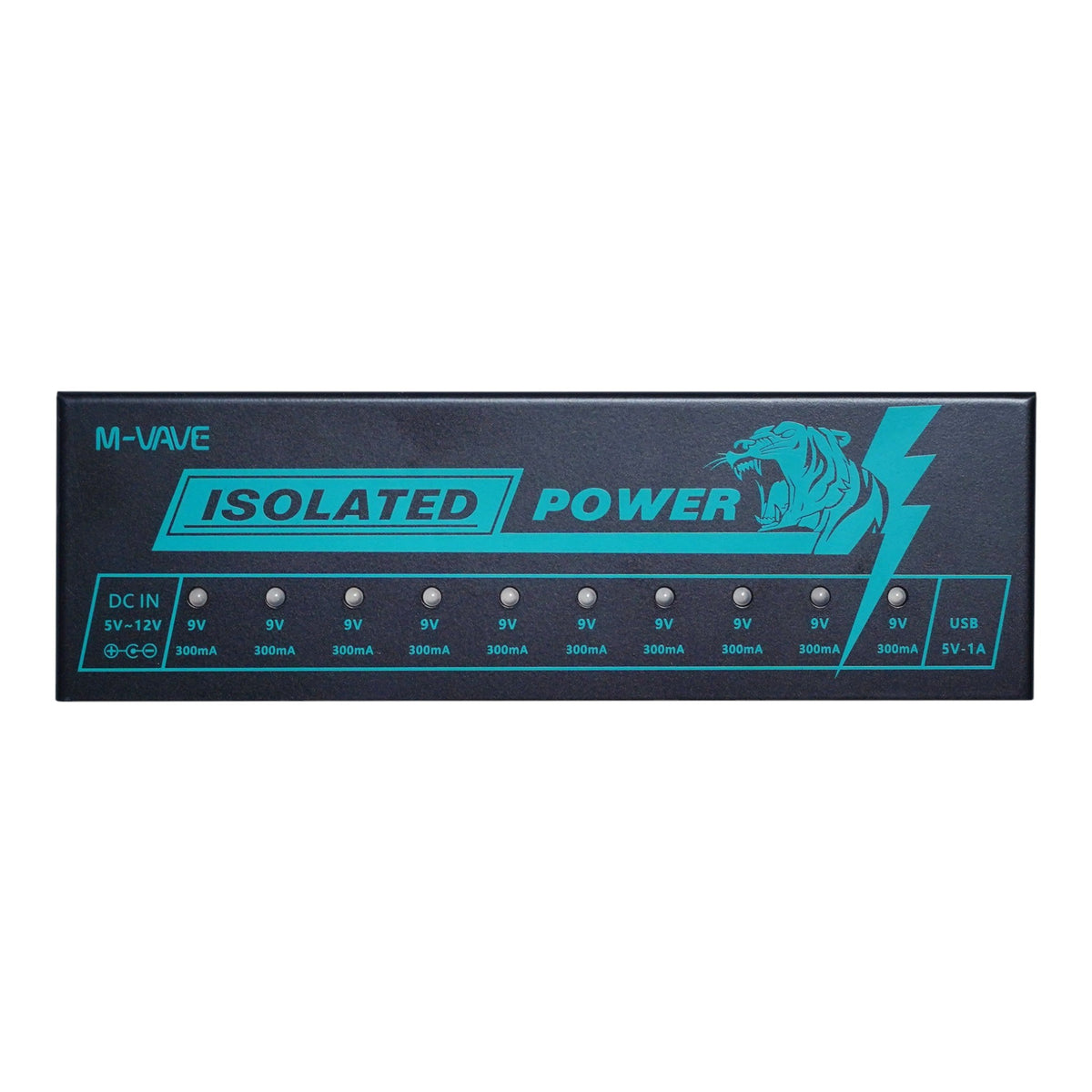

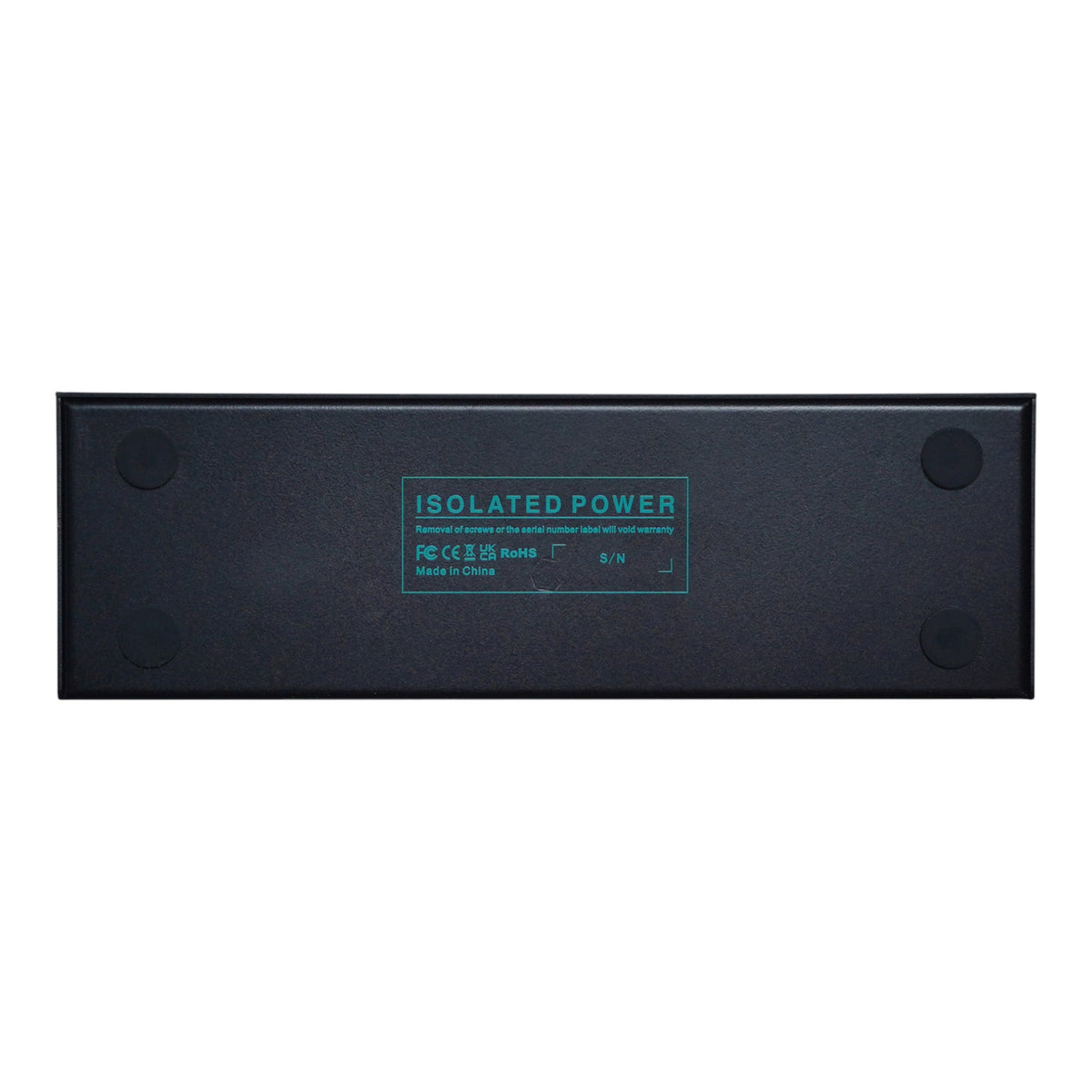

Keep your pedalboard powered with the M-VAVE ISOLATED POWER, a compact power supply designed to deliver stable, low-noise power to multiple guitar effects pedals and compatible devices. Featuring ten individually ground-isolated 9V DC outputs and an additional 5V USB output, it provides a practical power solution for musicians looking to organise their pedalboard setup.

Each of the ten 9V DC outputs supplies up to 300mA, while the dedicated USB output delivers 5V at up to 1A for compatible devices. Individual LED indicators display the status of each channel, making it easier to identify power interruptions. With independent over-current protection on every channel, a fault on one output will not affect the operation of the remaining channels.

Measuring just 158 x 50 x 23mm, the M-VAVE ISOLATED POWER offers a space-saving design that fits neatly into a variety of pedalboard configurations. Supplied with a DC power adapter and ten DC power cables, it provides the essential connections for powering a multi-pedal setup.

Features

• 11 Power Outputs: Ten 9V DC outputs plus one dedicated 5V USB output for compatible devices.
• Ground-Isolated Outputs: Ten individually isolated 9V outputs help minimise unwanted noise and ground-loop interference between connected pedals.
• Independent Over-Current Protection: Each channel has its own protection, helping prevent a fault on one output from affecting the others.
• Individual LED Indicators: Each channel features an LED status indicator that switches off when its corresponding output enters an over-current condition.
• Stable, Low-Noise Power: Designed to provide consistent power for compatible guitar effects pedals and other suitable devices.
• Compact Design: The slim 158 x 50 x 23mm housing helps conserve valuable pedalboard space.
• Included Power Accessories: Supplied with a DC power adapter and ten DC power cables for convenient pedalboard integration.

Specifications

• Brand: M-VAVE
• Model: ISOLATED POWER
• Product Type: Isolated Pedalboard Power Supply
• Number of Outputs: 11
• 9V DC Outputs: 10
• 9V DC Output Current: 300mA per output
• 5V USB Output: 1
• USB Output Current: 1A
• Power Input: DC 12V, 2A
• Output Isolation: Ten ground-isolated 9V DC channels
• Protection: Independent over-current protection for each channel
• Status Indicators: Individual LED indicators for each channel
• Dimensions: 158 x 50 x 23mm
• Weight: 228g

Package Contents

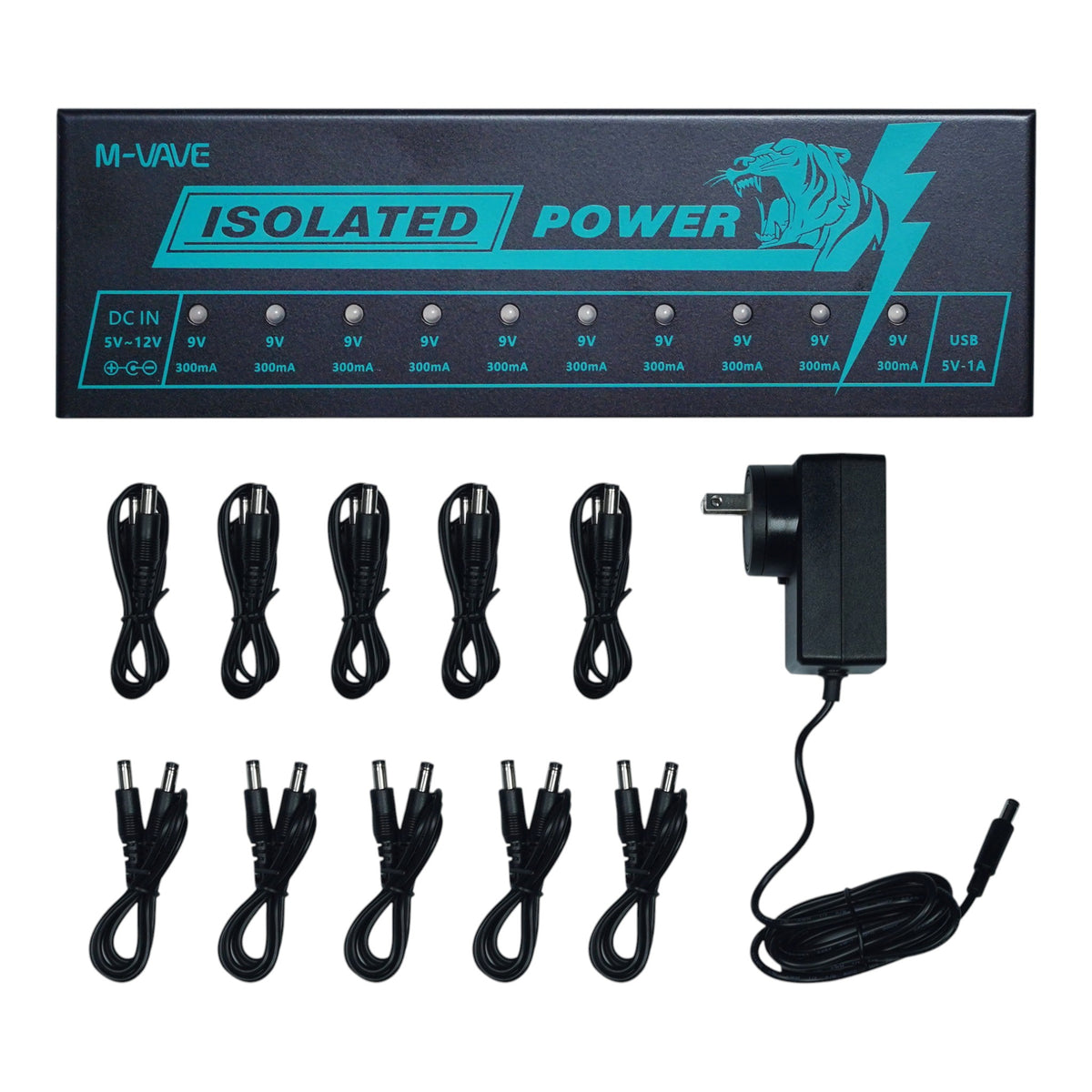

• 1 x M-VAVE ISOLATED POWER power supply
• 1 x DC power adapter
• 10 x DC power cables

Note: Ensure pedals match the outputs’ voltage, polarity and current ratings. The ten isolated DC outputs provide 9V at up to 300mA each, while the USB output provides 5V at up to 1A. Use the supplied 12V, 2A adapter and check cable compatibility before connecting devices.
