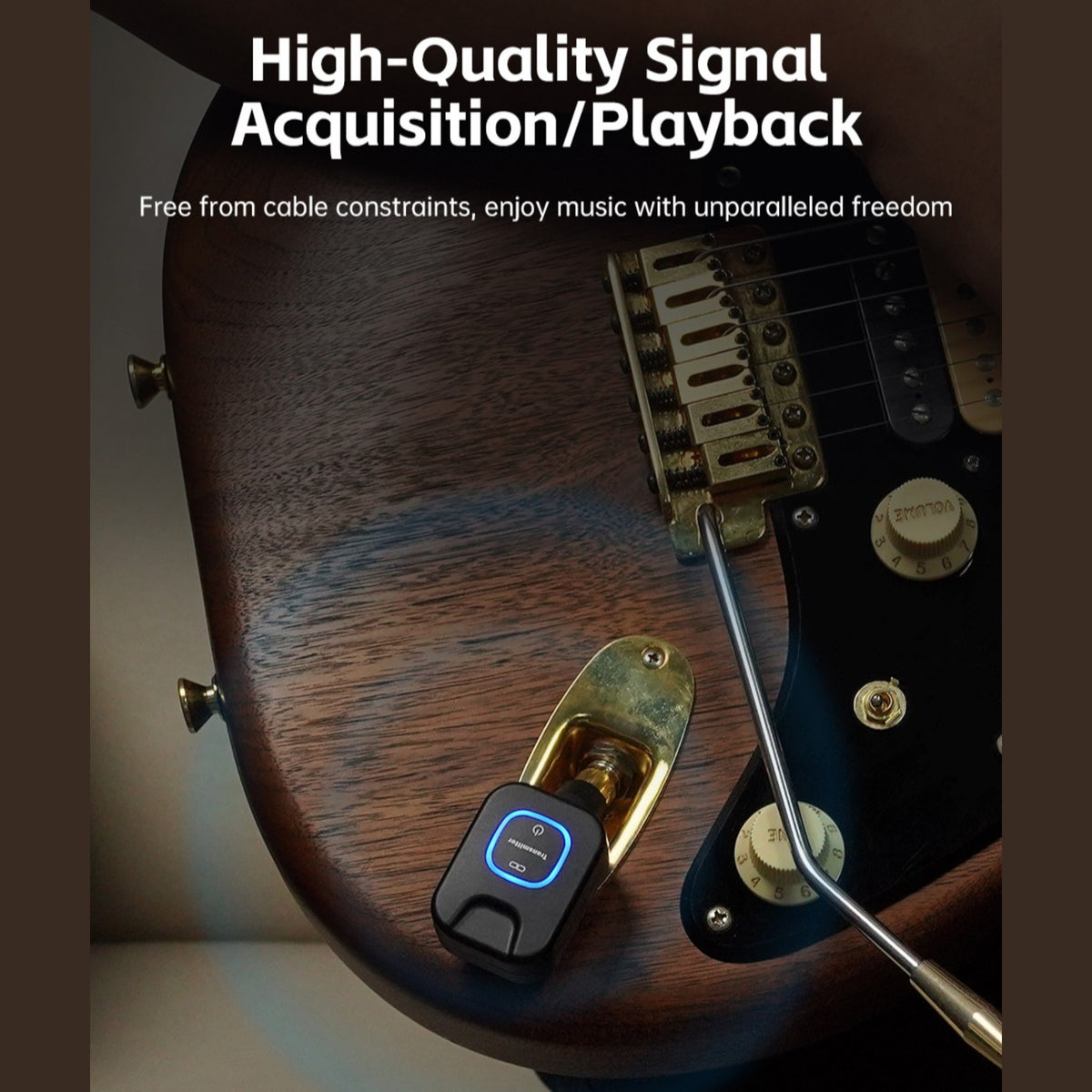

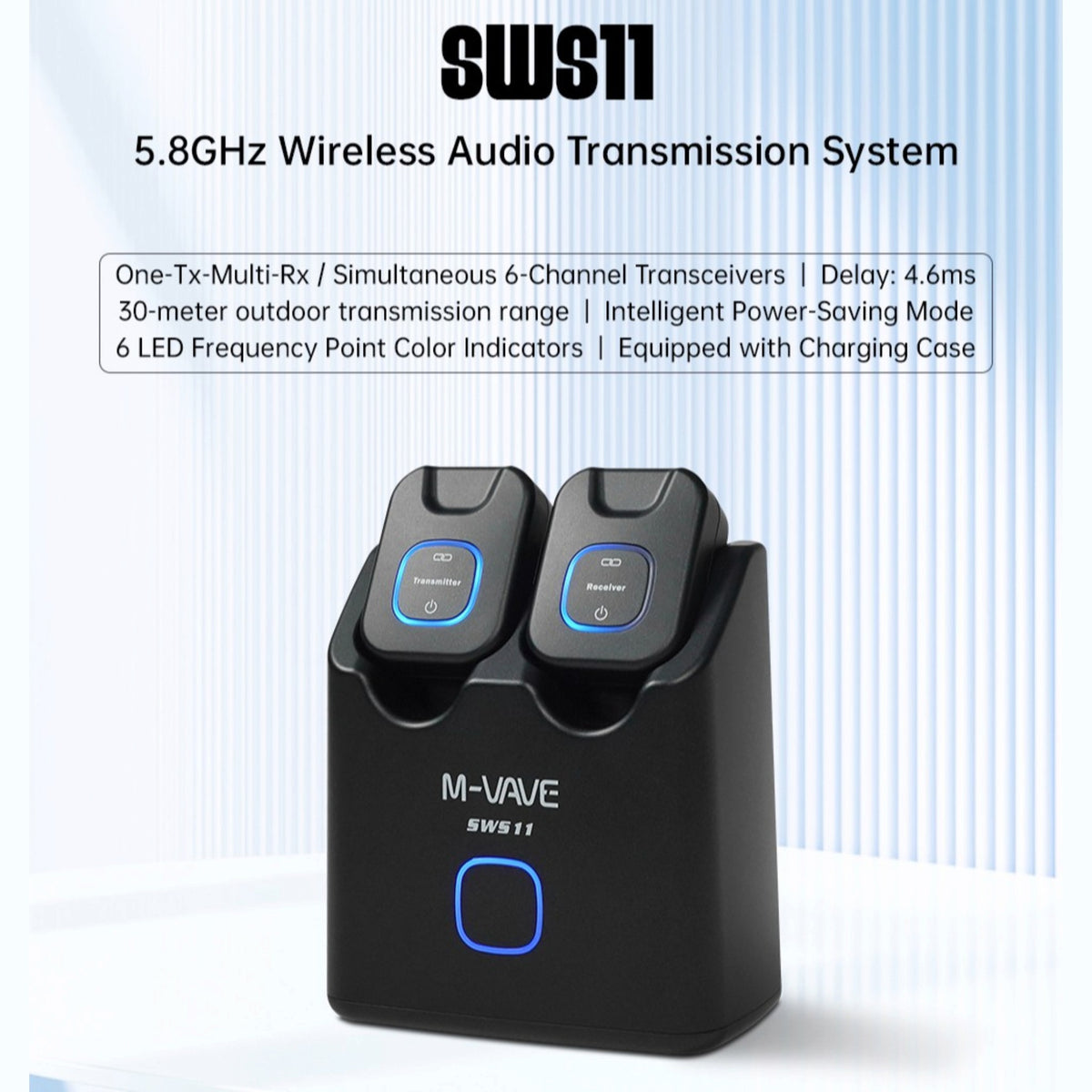

Enjoy greater freedom of movement with the M-VAVE SWS11 5.8GHz Wireless Audio Transmission System. Designed for musicians and audio applications requiring reliable wireless connectivity, this compact system delivers low-latency audio transmission, high-resolution audio conversion and an extended operating range without the restrictions of a traditional cable.

Operating on the 5.8GHz ISM frequency band, the SWS11 uses Multi-layer Adaptive Frequency Hopping (AFH) technology to help maintain a stable connection in environments with wireless interference. With typical end-to-end latency of just 3ms and a transmission range of up to 50 metres in open environments, it is well suited to rehearsals, live performances and other applications where freedom of movement matters.

The system supports 96kHz/24-bit AD/DA sampling and 48kHz/24-bit lossless wireless transmission, delivering a 20Hz–20kHz frequency response and 110dB dynamic range. Its Neural-Network Lossless Audio Engine (NLAE) and dual-core DSP architecture are designed to support audio quality and connection stability through dedicated audio processing and intelligent signal management.

For larger setups, one transmitter can broadcast to up to 32 receivers simultaneously, allowing multiple receiving devices to monitor the same audio source. Six selectable frequency channels, identified by colour-coded LEDs, provide additional flexibility when managing wireless interference. The included charging case helps keep the transmitter and receiver powered, with more than five hours of operating time per charge and approximately two hours required for a full charge.

Combining convenient portability, low latency and multi-receiver capability, the M-VAVE SWS11 is a versatile wireless audio solution for musicians and performance environments.

Features

• 5.8GHz Wireless Transmission: Operates in the 5725–5850MHz ISM band to help avoid congestion associated with the 2.4GHz band.
• Ultra-Low Latency: Typical end-to-end latency of just 3ms for responsive audio transmission.

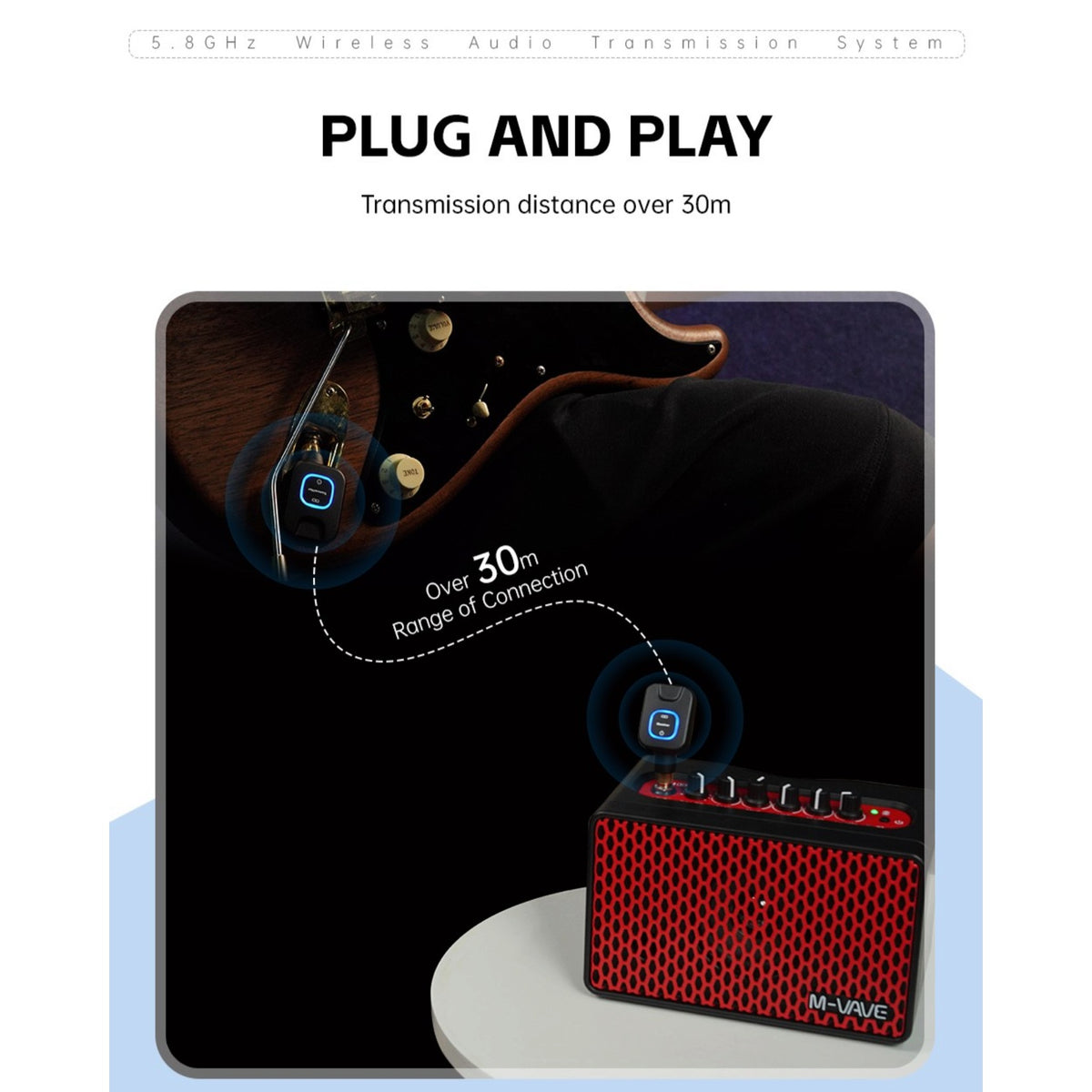

• Extended Wireless Range: Up to 50 metres in open, unobstructed environments.

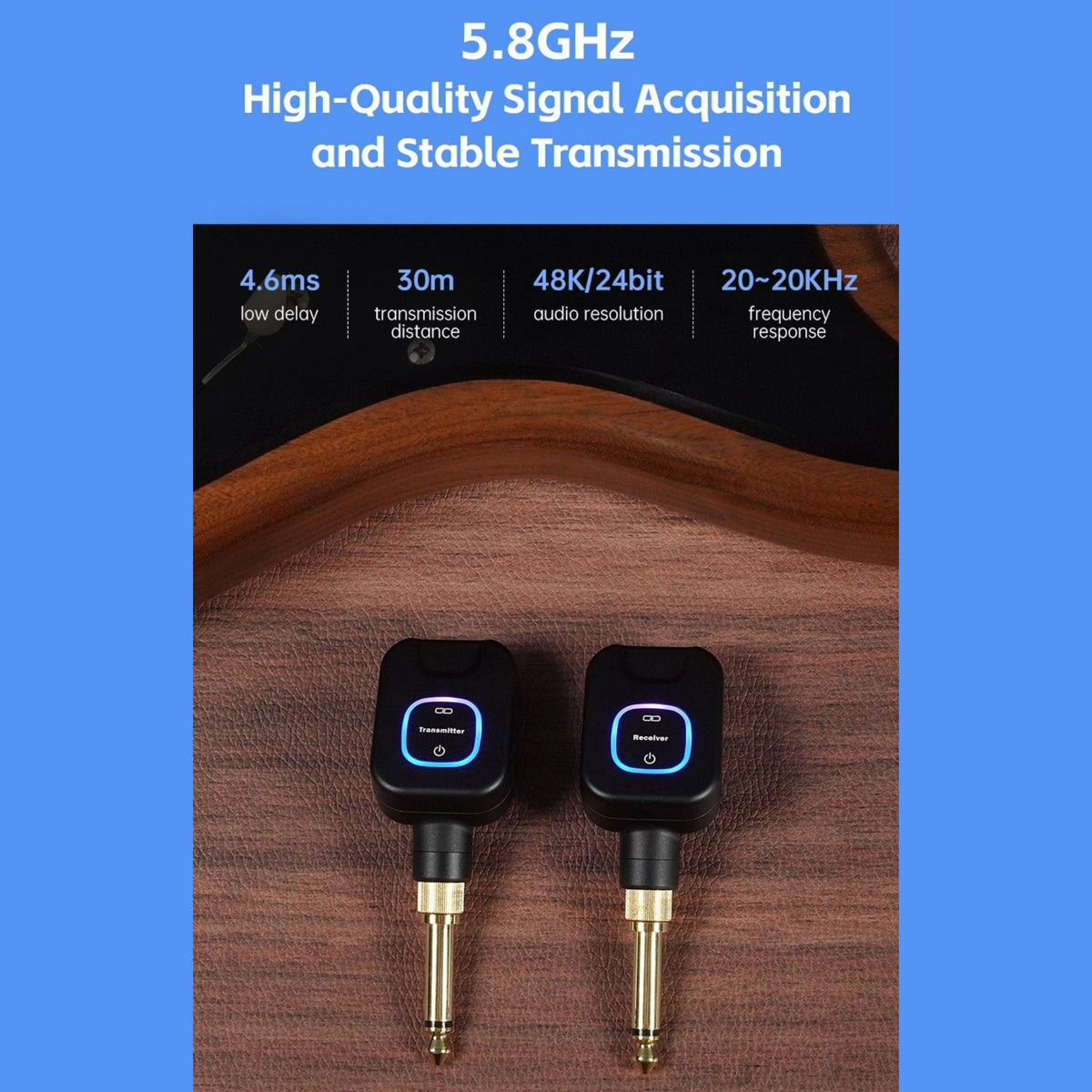

• High-Resolution Audio: 96kHz/24-bit AD/DA sampling and 48kHz/24-bit lossless wireless transmission.
• Adaptive Frequency Hopping: Automatically scans and switches frequencies to help maintain a stable connection in environments with interference.

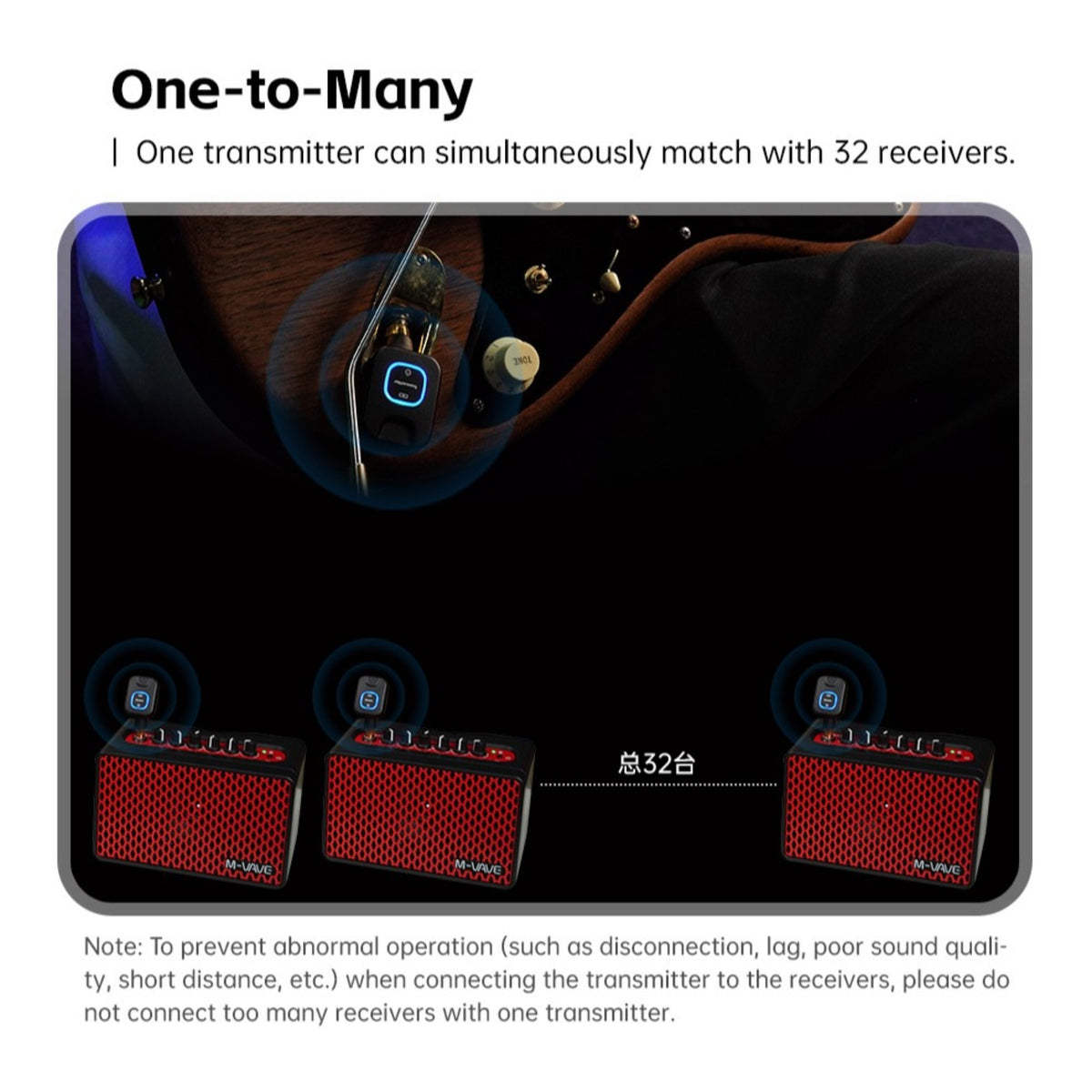

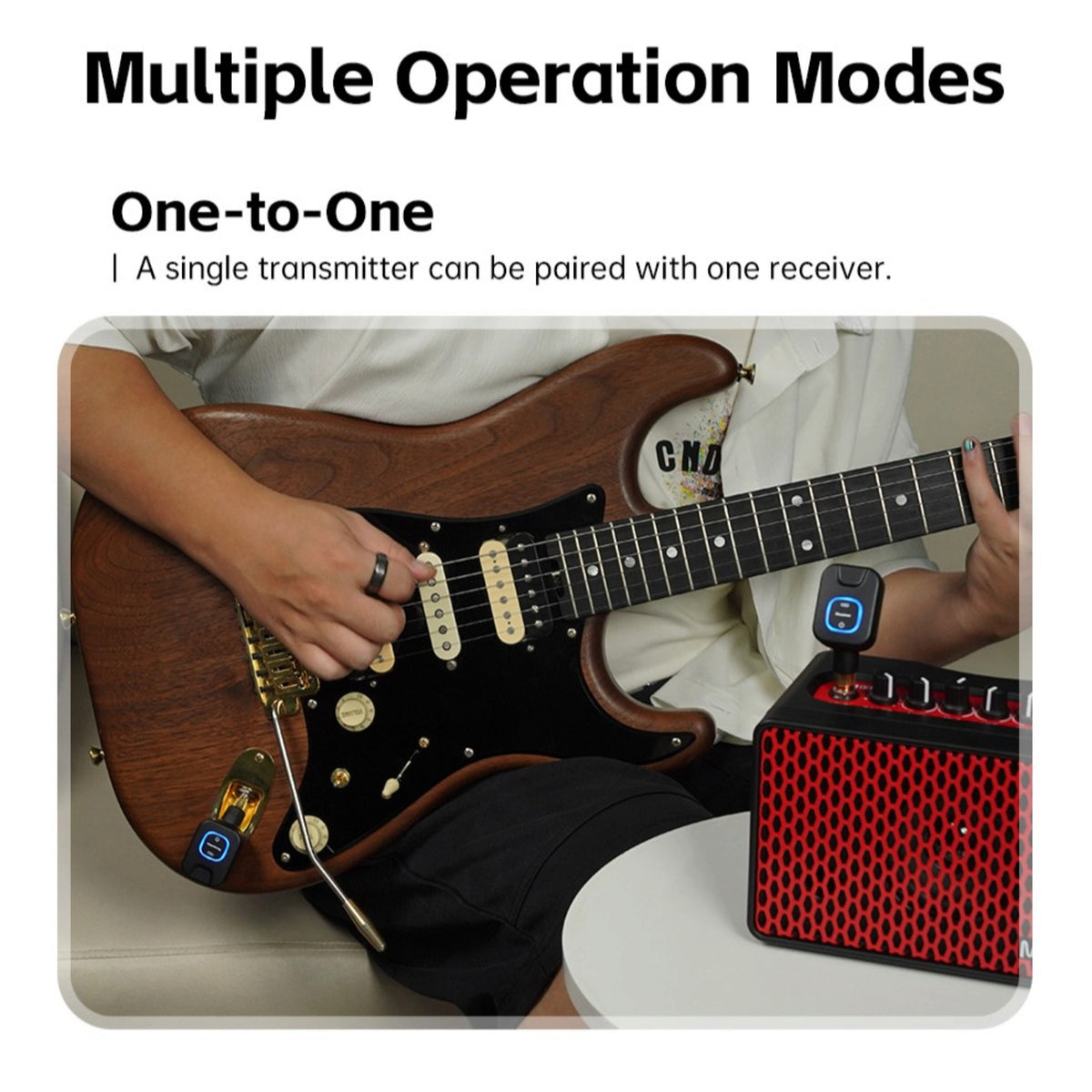

• One-to-Many Connectivity: Supports up to 32 receivers connected to a single transmitter simultaneously.

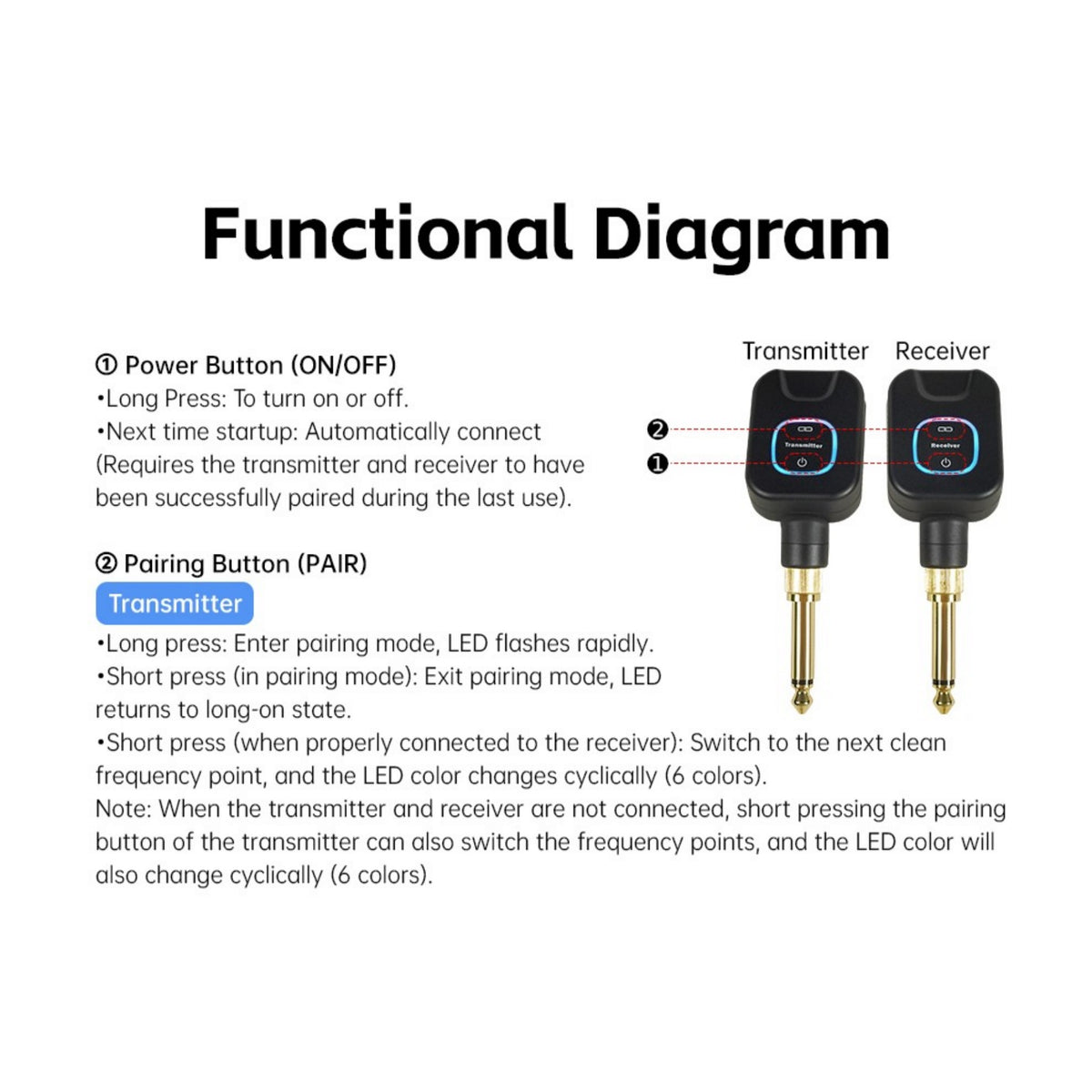

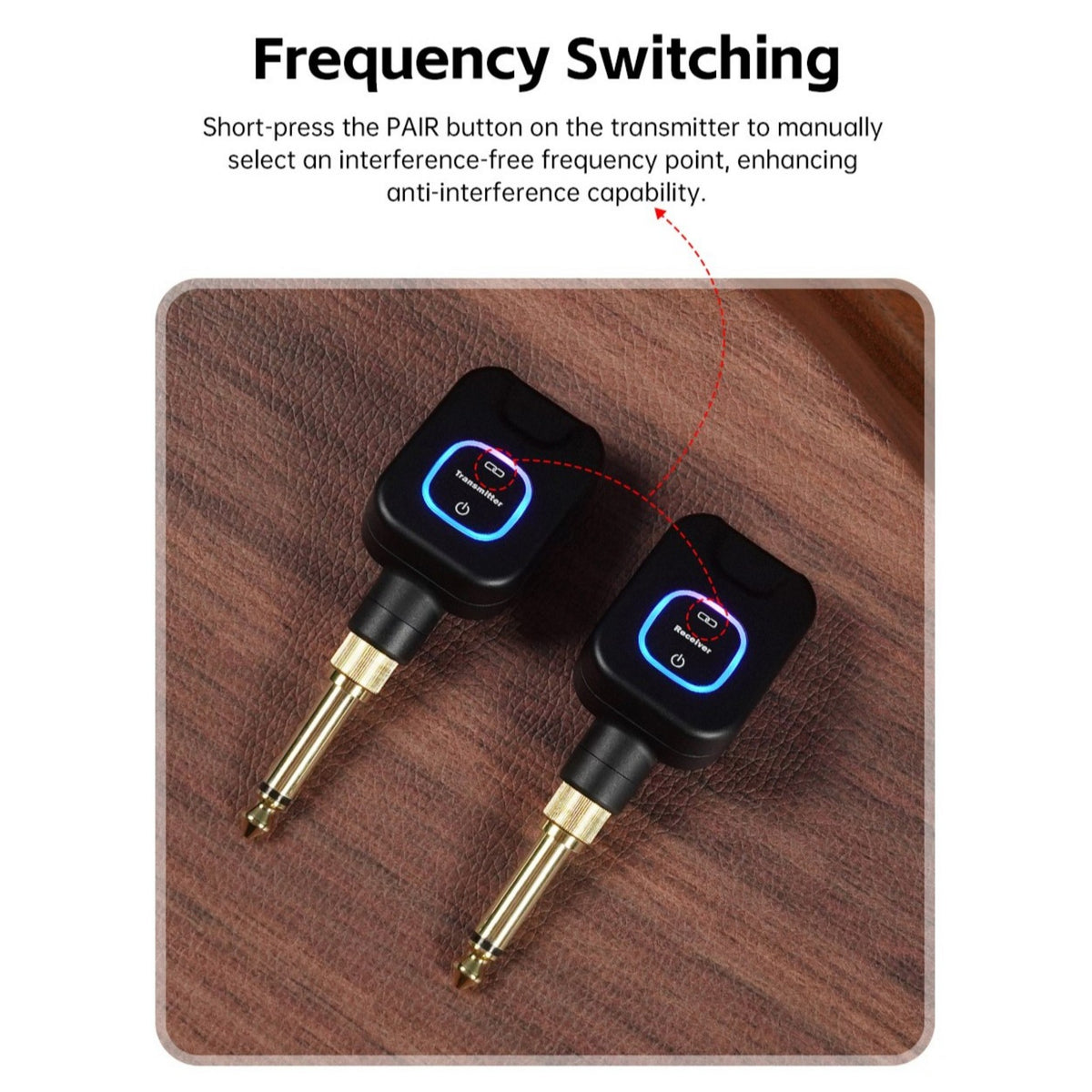

• Six Colour-Coded Frequency Channels: Red, green, blue, yellow, magenta and cyan LED indicators simplify channel identification.
• Neural-Network Lossless Audio Engine: AI-assisted audio processing and predictive signal repair designed to help maintain audio continuity.
• Built-In Rechargeable Batteries: More than five hours of continuous operation per charge under specified conditions.

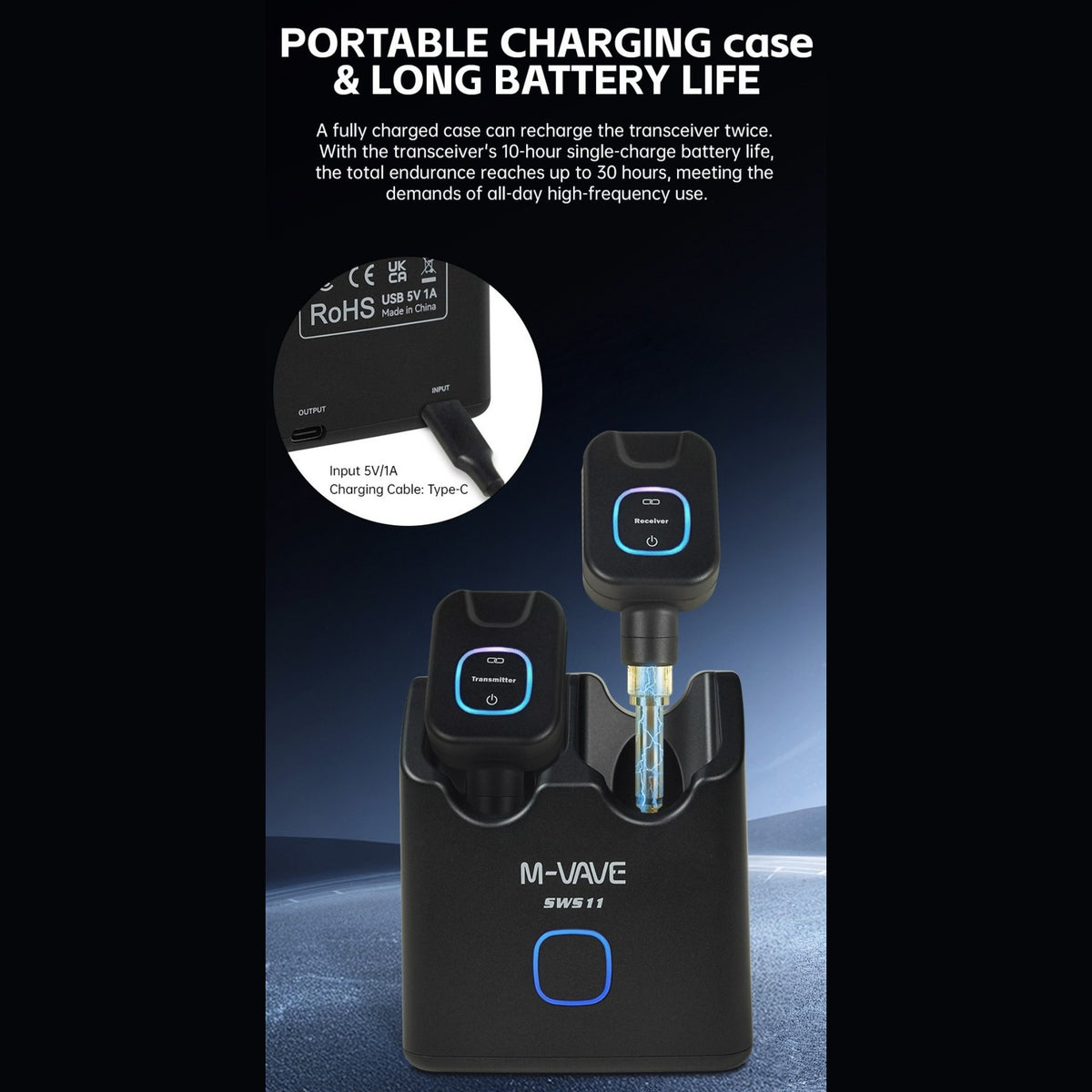

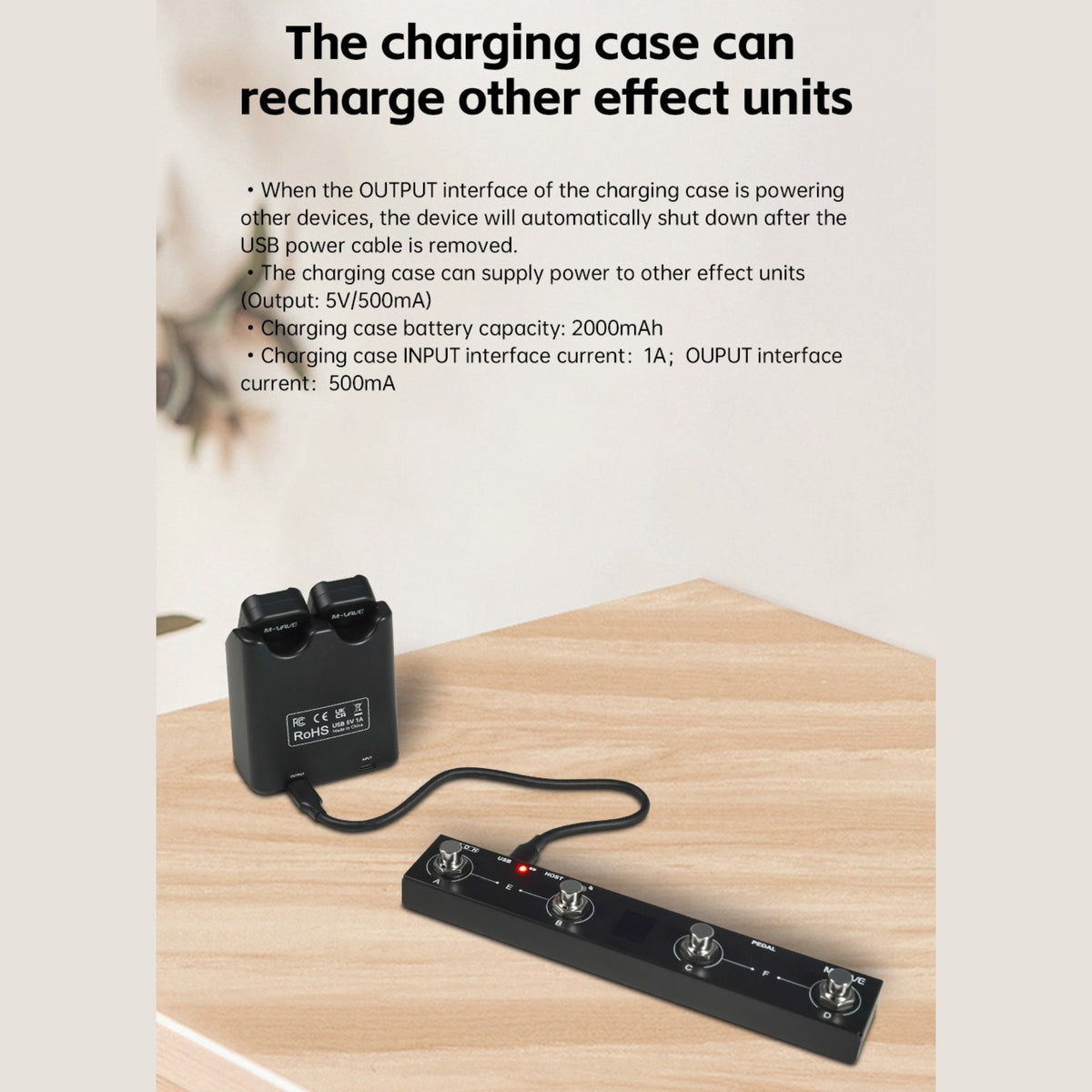

• Dedicated Charging Case: Provides portable charging for the transmitter and receiver, with USB-C charging input and external power output.
• Compact, Lightweight Design: Suitable for portable setups, rehearsals and live performance use.

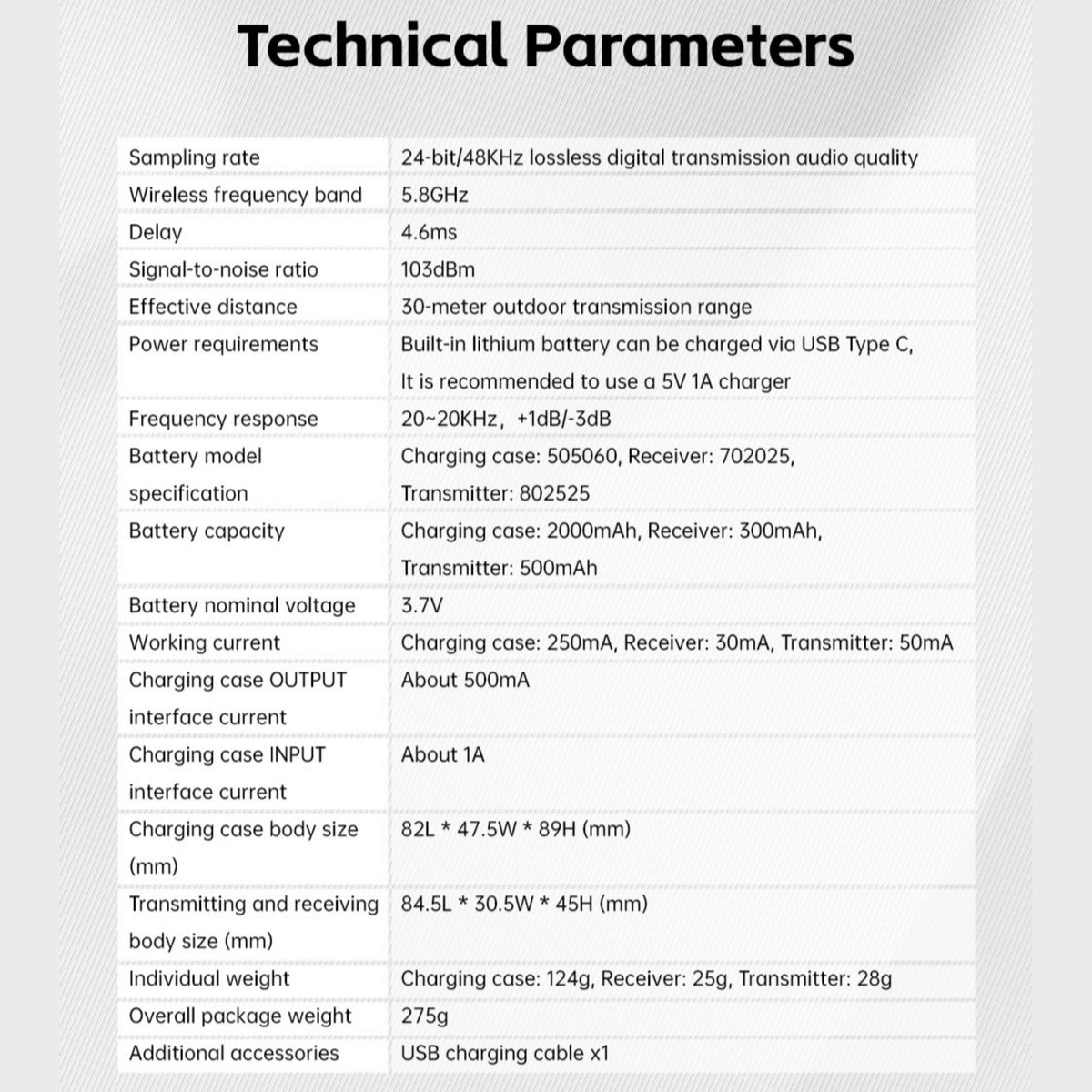

Specifications

• Brand: M-VAVE
• Model: SWS11
• Product Type: 5.8GHz Wireless Audio Transmission System

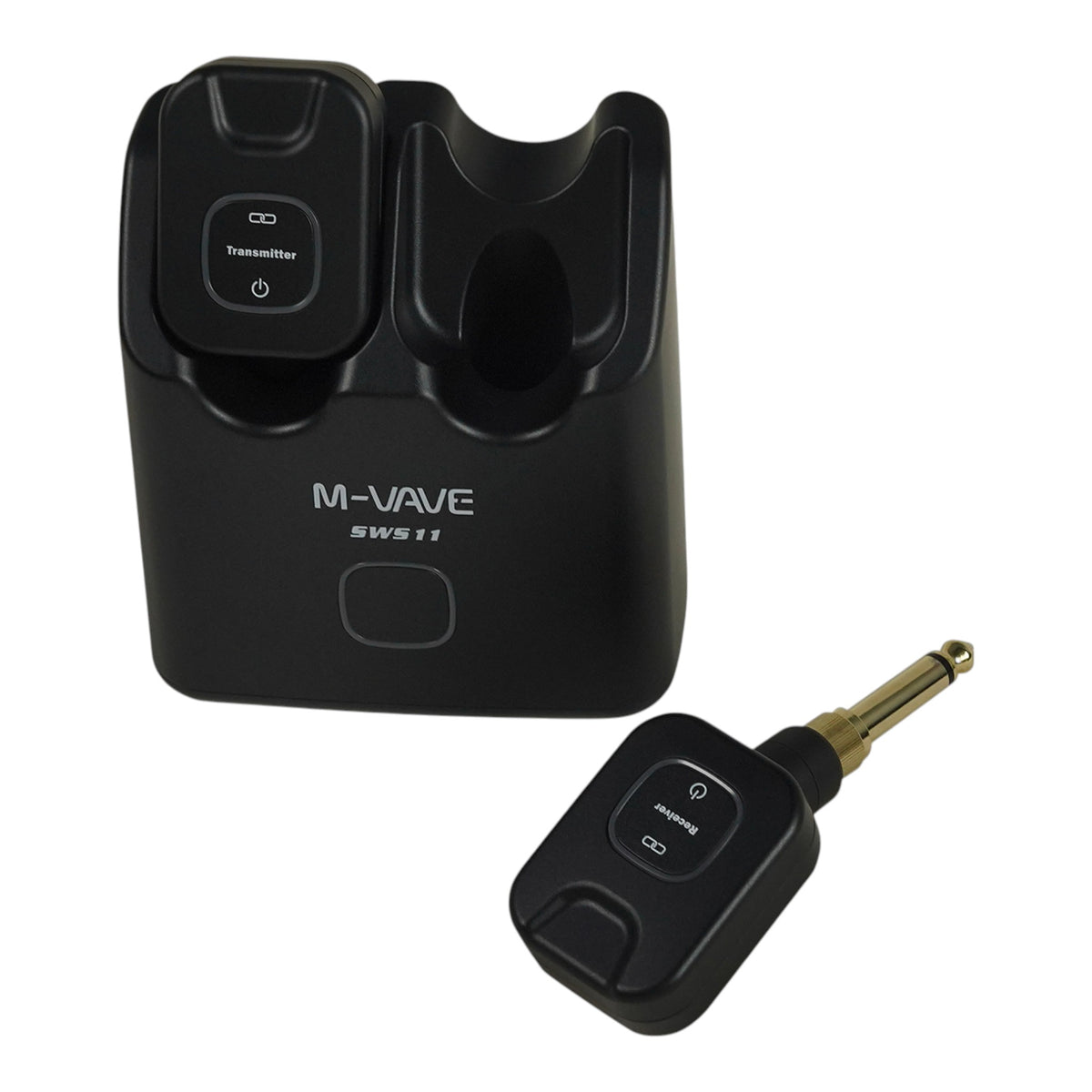

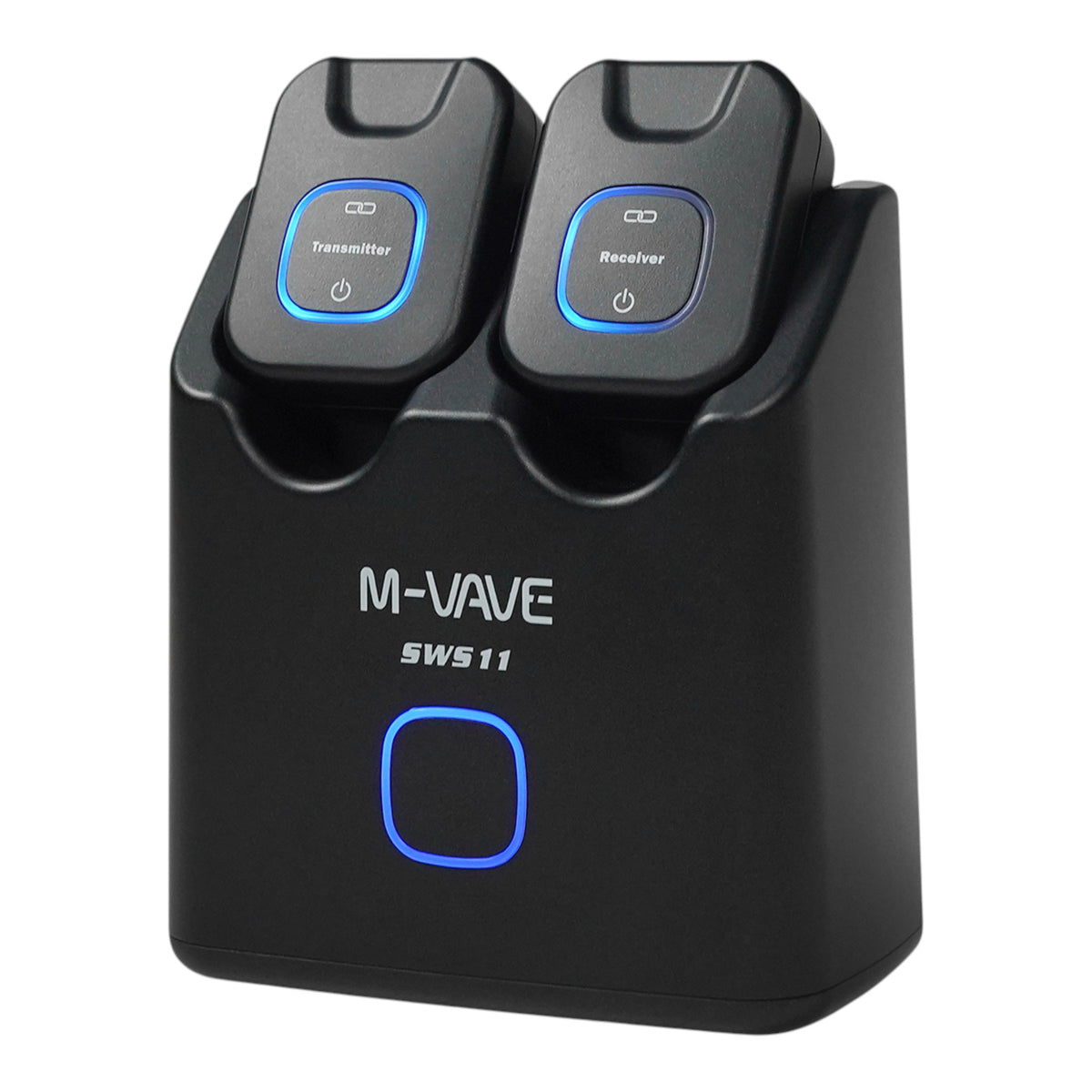

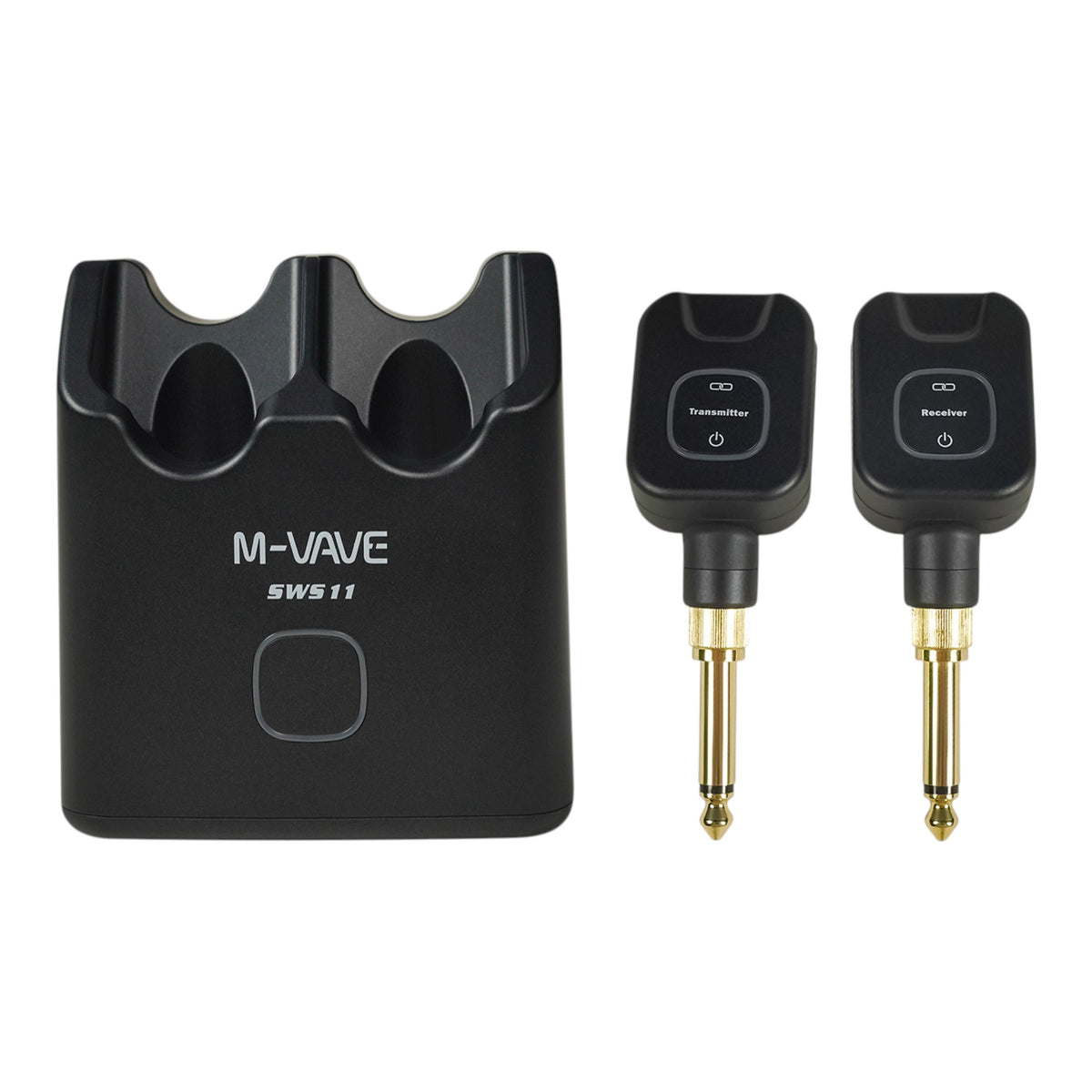

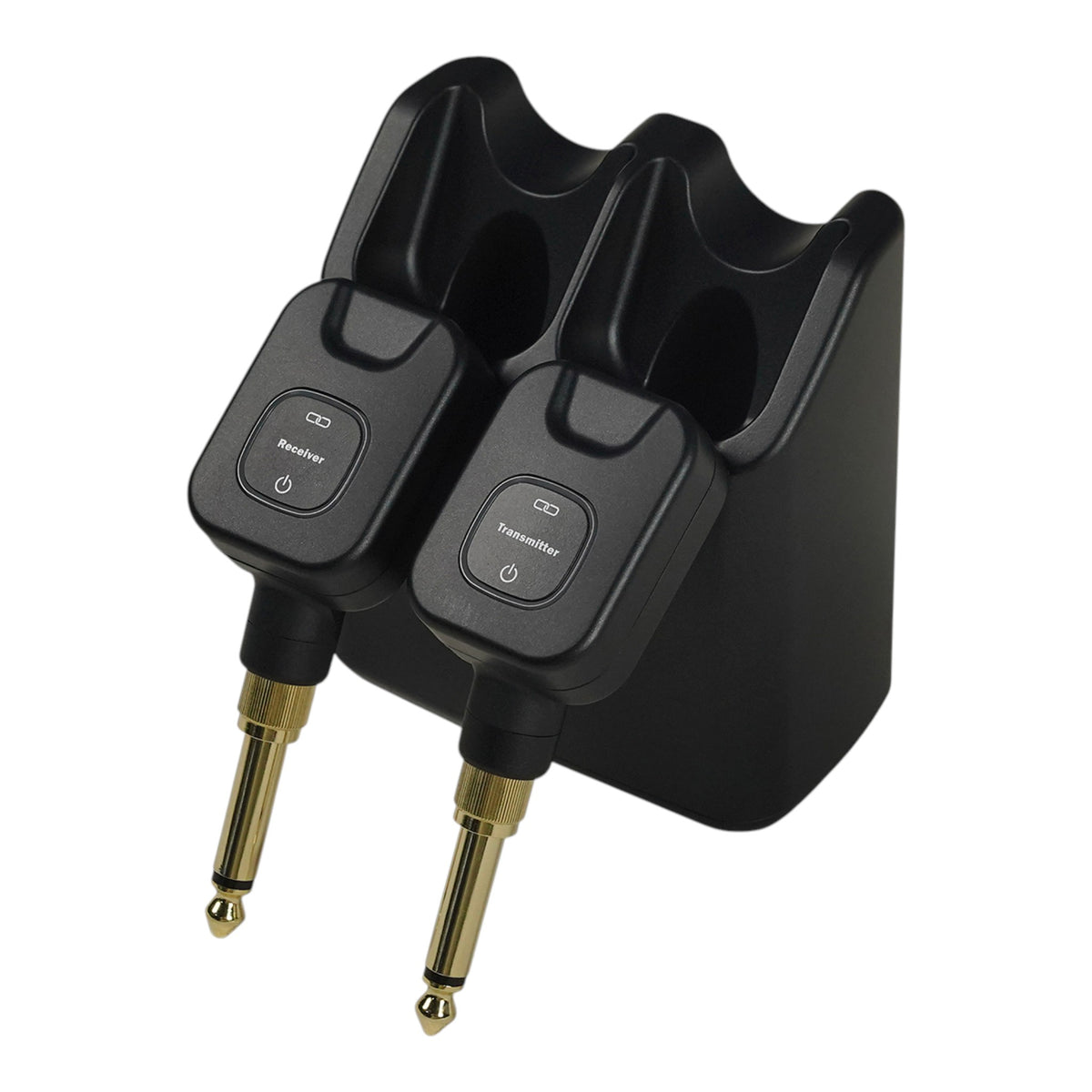

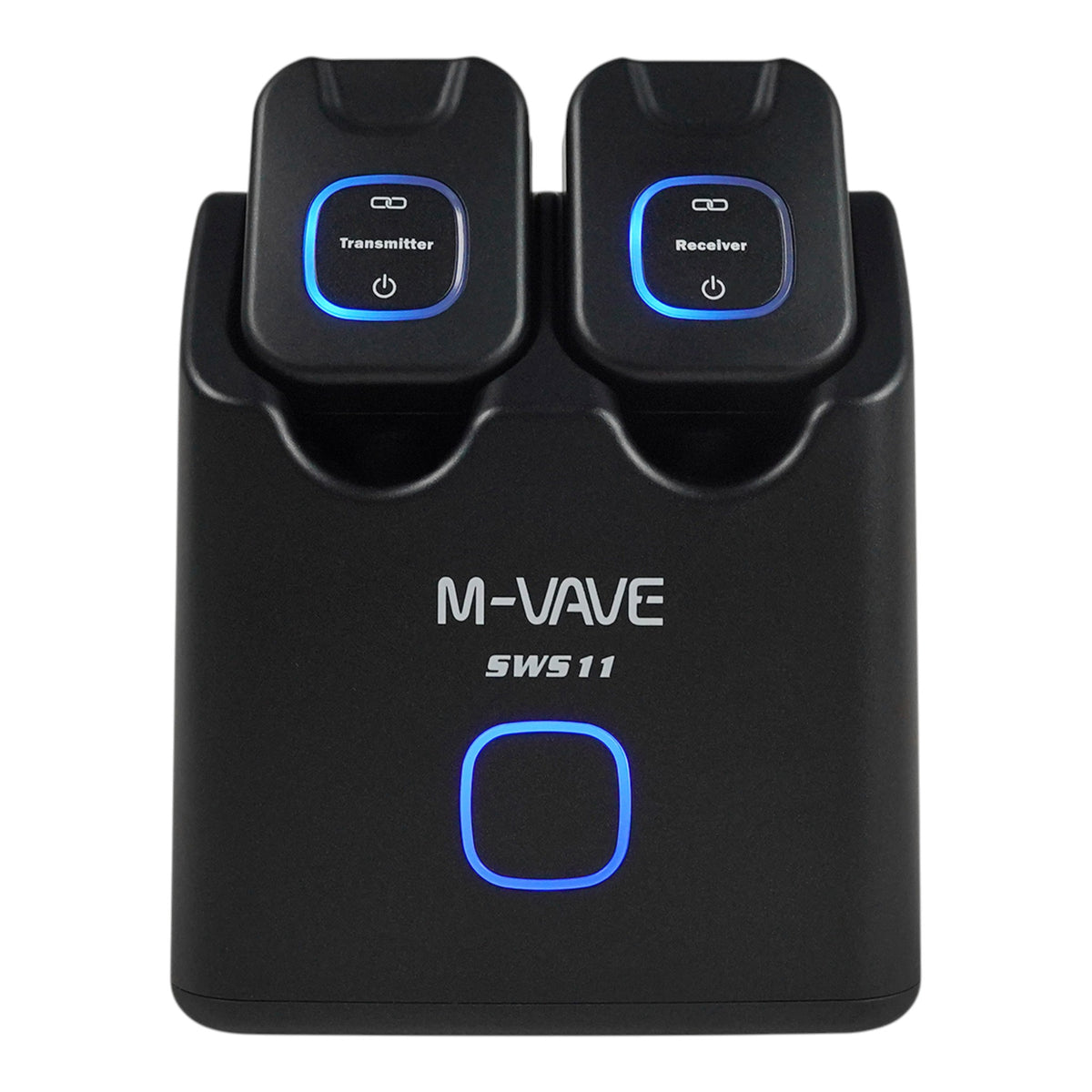

• System Components: Transmitter, receiver and dedicated charging case
• Wireless Operating Band: 5.8GHz ISM
• Operating Frequency Range: 5725–5850MHz
• Wireless Transmission Technology: Multi-layer Adaptive Frequency Hopping (AFH)
• Audio Engine: Neural-Network Lossless Audio Engine (NLAE)
• Processor: Dual-core floating-point DSP, 320MHz
• AD/DA Sampling Rate: 96kHz / 24-bit
• Wireless Transmission Format: 48kHz / 24-bit lossless
• Typical End-to-End Latency: 3ms
• Effective Transmission Range: Up to 50m in open environments
• Frequency Response: 20Hz–20kHz (±0.15dB)
• Dynamic Range: 110dB
• Total Harmonic Distortion Plus Noise (THD+N): Less than 0.015%
• Multi-Receiver Support: Up to 32 receivers per transmitter
• Simultaneous Transmitter Support: Up to 6 transmitters on different frequencies within the same environment, subject to operating conditions
• Frequency Channel Indicators: 6 LED colours — red, green, blue, yellow, magenta and cyan
• Transmitter Operating Current: ≤90mA
• Receiver Operating Current: ≤55mA
• Operating Time: More than 5 hours
• Charging Time: Approximately 2 hours
• Transmitter Battery Capacity: 500mAh
• Receiver Battery Capacity: 300mAh
• Charging Case Battery Capacity: 2000mAh
• Nominal Battery Voltage: 3.7V

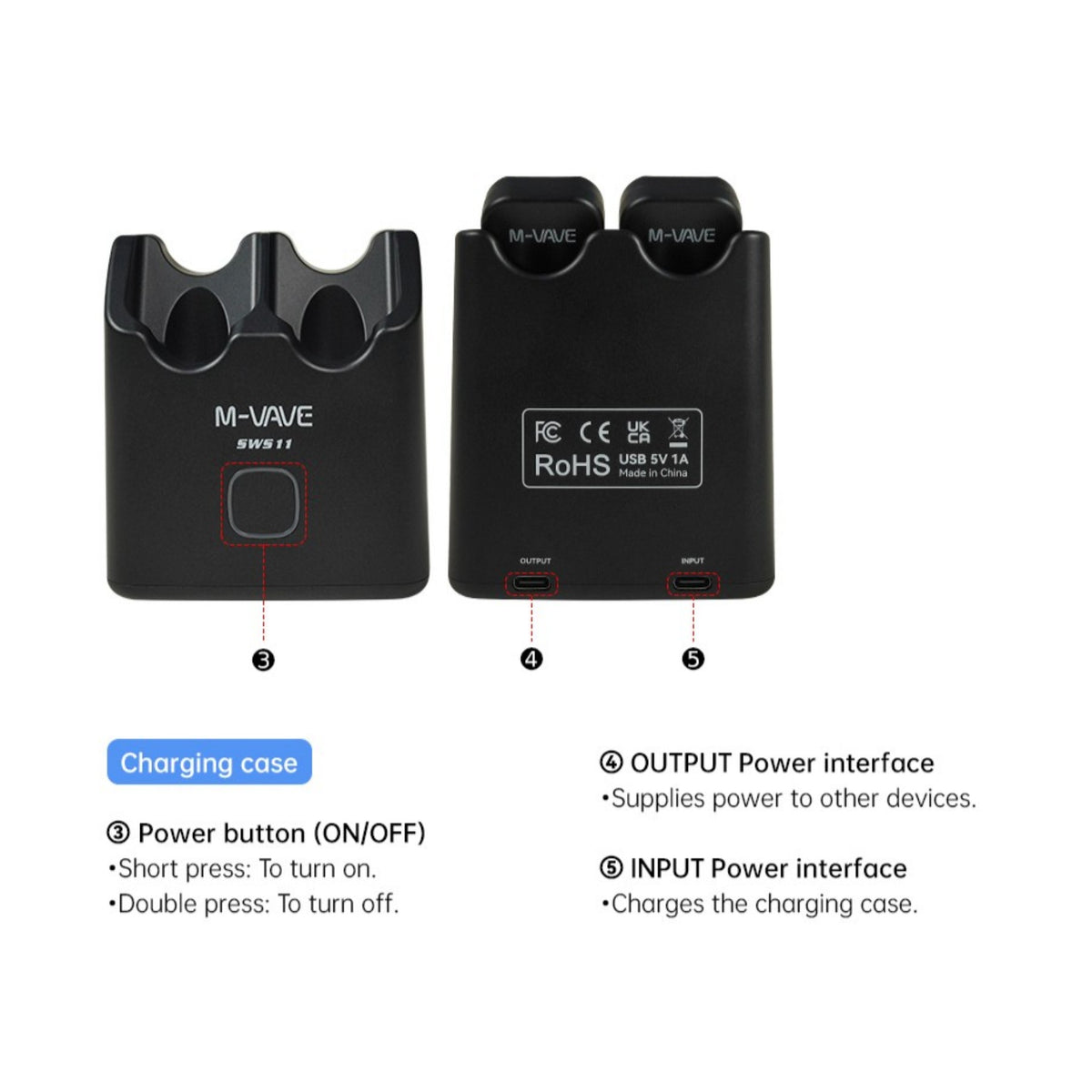

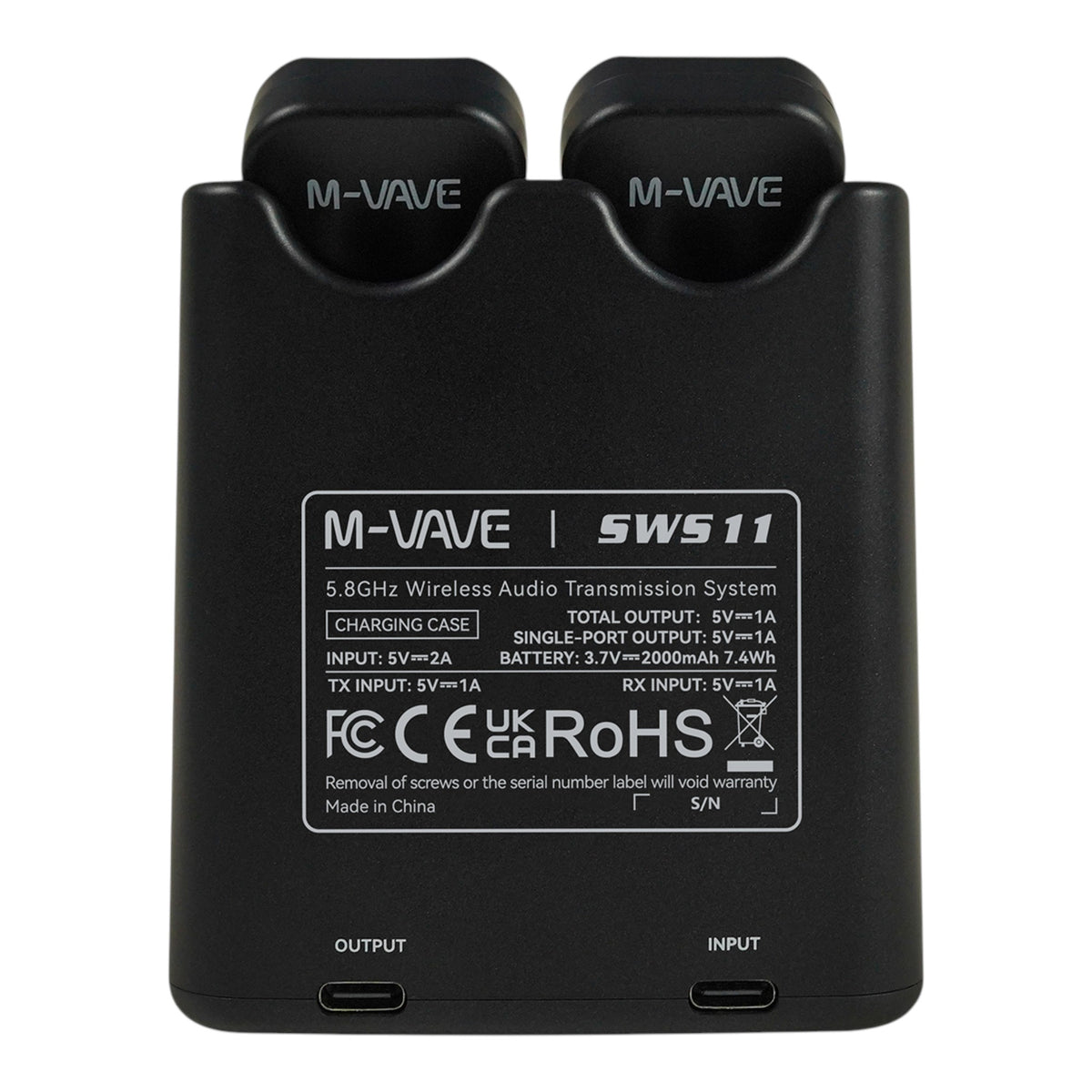

• Charging Case Input: USB-C, 5V / 2A
• Transmitter Charging Input: 5V / 500mA
• Receiver Charging Input: 5V / 500mA
• Charging Case Output: 5V / 1A

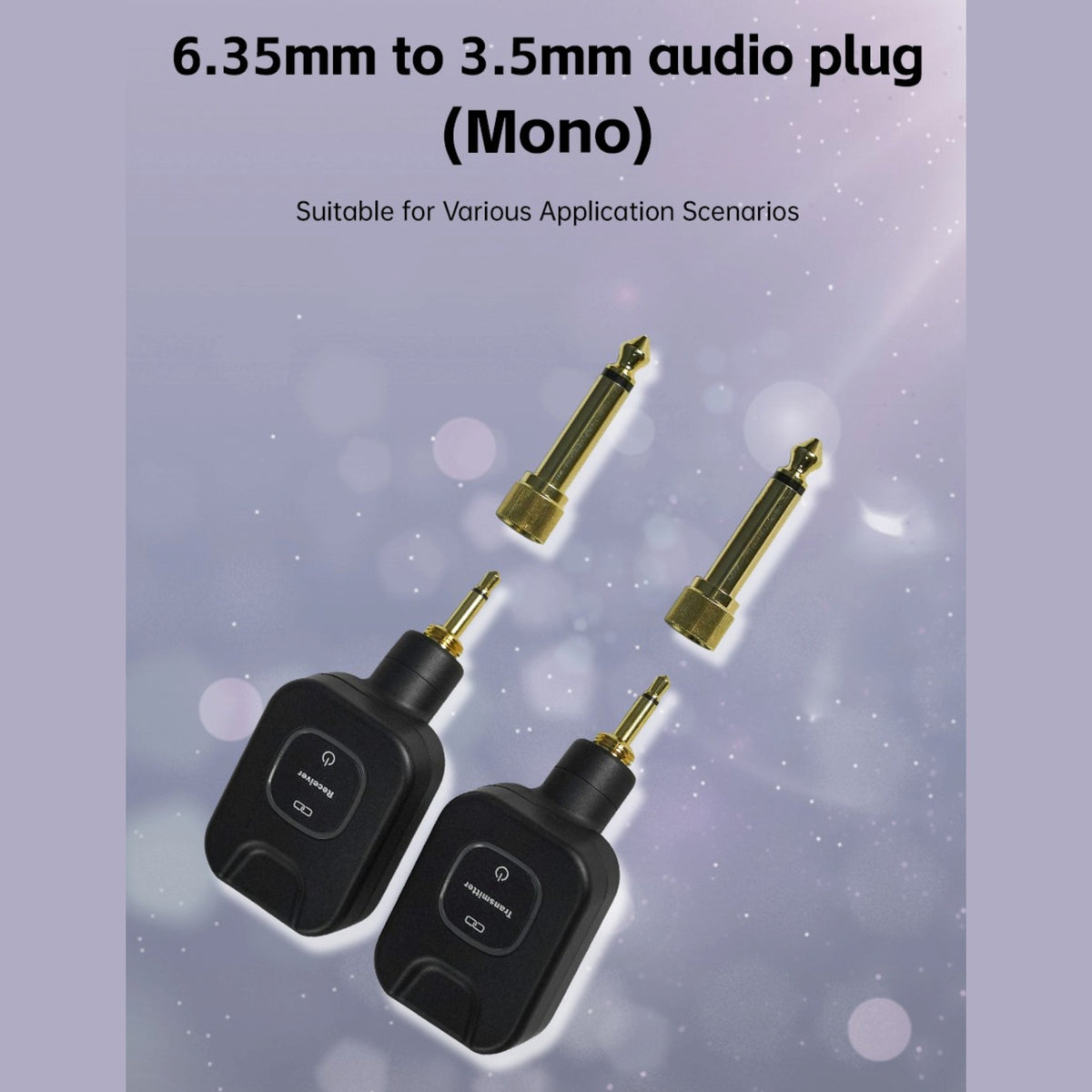

• Audio Connector: 6.35mm (1/4")
• Charging Case Dimensions: 82 × 47.5 × 89mm
• Transmitter Dimensions: 84.5 × 30.5 × 45mm
• Receiver Dimensions: 84.5 × 30.5 × 45mm
• Charging Case Weight: 124g
• Transmitter Weight: 28g
• Receiver Weight: 25g
• Total Package Weight: 275g

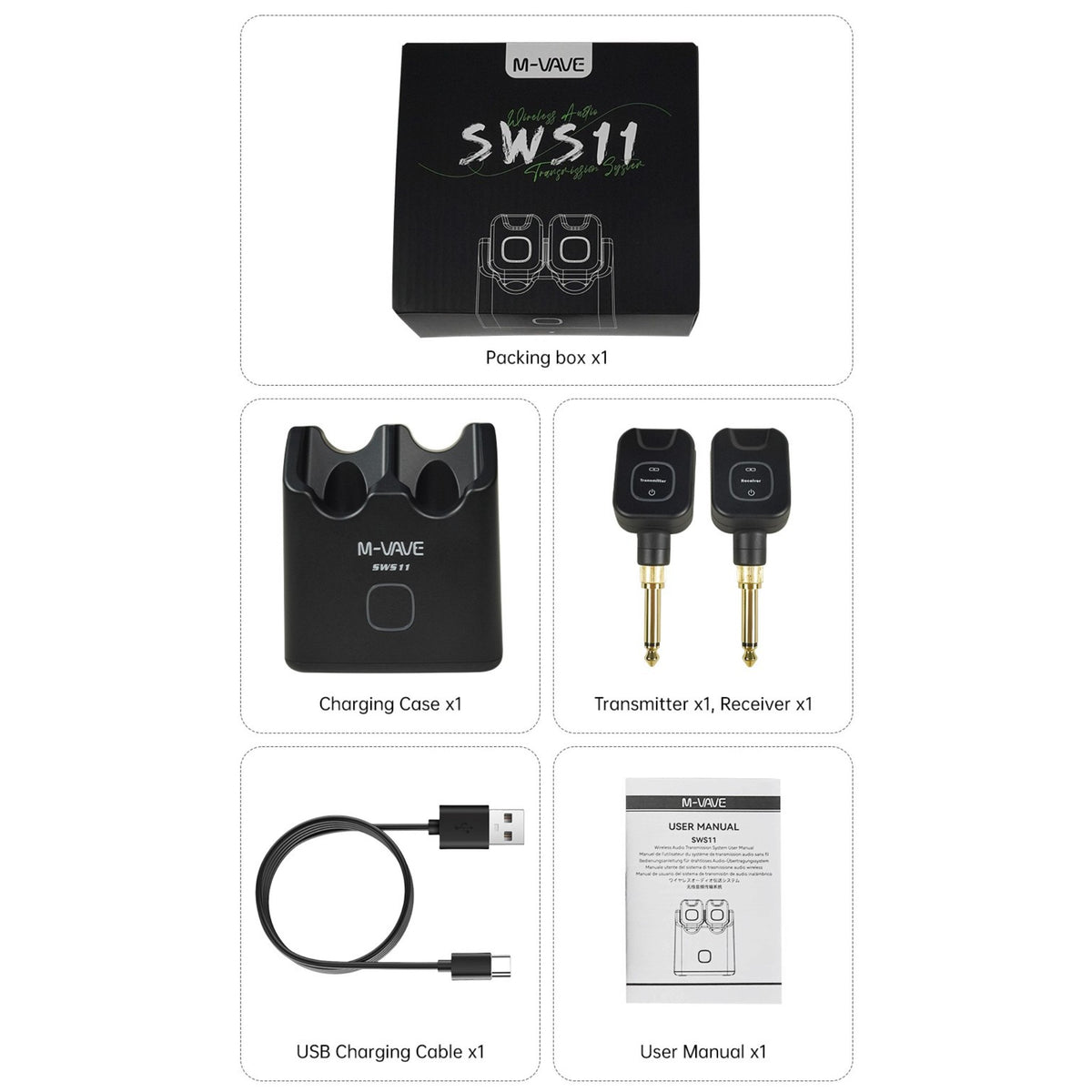

Package Contents

• 1 × M-VAVE SWS11 Transmitter
• 1 × M-VAVE SWS11 Receiver
• 1 × Dedicated Charging Case
• 1 × USB Charging Cable
