The M-VAVE TANK MINI is a compact, versatile multi-effects processor designed for guitarists and bassists seeking a broad range of tones in a portable format. Combining amp modelling, cabinet simulation, essential effects and wireless connectivity, it delivers a flexible sound-shaping solution for practice, recording and performance.

With 21 editable and overwritable presets, the TANK MINI provides a convenient way to store and customise different sounds. Its collection of 20 preamp models includes 15 guitar-focused models and five bass-focused models, while 20 impulse response (IR) cabinet simulations offer another layer of tonal flexibility. The effects section includes noise gate, boost, compression, three-band EQ, modulation, delay and reverb, with the order of the effects chain customisable to suit different tonal requirements.

The TANK MINI supports mobile app and computer software integration for preset editing, preset sharing, importing and exporting tones, IR file loading and firmware updates. Its Bluetooth connectivity also supports wireless music playback and app-based control, making it suitable for playing along with backing tracks or music from a compatible device.

Beyond its effects capabilities, the TANK MINI incorporates a built-in chromatic tuner, headphone monitoring and USB audio functionality. It can operate as a USB sound card for a computer and supports audio recording with compatible mobile devices through a separately purchased OTG adapter. The USB audio function supports 44.1kHz/24-bit audio and an adjustable loopback feature for recording instrument and playback audio together or separately.

Three onboard footswitches provide preset control, while the compact enclosure and built-in rechargeable battery make the unit easy to transport. With up to seven hours of battery life and the ability to operate while charging, the M-VAVE TANK MINI is a practical all-in-one effects solution for musicians who want versatile tones and convenient connectivity without a bulky pedalboard.

Features

• 21 Editable Presets: Store, customise and overwrite presets, with five guitar banks and two bass banks offering three presets each.
• 20 Amp Models: Includes 15 guitar preamp models and five bass preamp models.
• 20 IR Cabinet Simulations: Provides 15 guitar cabinet simulations and five bass cabinet simulations, with support for importing compatible IR files.
• Versatile Effects Processing: Includes noise gate, boost, compressor, three-band EQ, seven modulation types, five delay types and six reverb types.
• Customisable Effects Chain: Supports six main effect modules with an additional cabinet simulation slot, allowing the effects order to be customised.
• App and PC Software Control: Edit and manage presets, share tones, import and export presets, load IR files and access firmware updates.
• Bluetooth Connectivity: Supports wireless music playback and Bluetooth connection for compatible app-based control.
• Built-In Chromatic Tuner: Integrated tuner with adjustable reference pitch from 430Hz to 450Hz through compatible software.
• Three Footswitches: Provides onboard preset selection and bypass control.
• Headphone Monitoring: Dedicated headphone output for private practice and monitoring.
• USB Audio Interface: Supports 44.1kHz/24-bit USB audio for computer recording and compatible mobile recording setups.
• Selectable Loopback: Supports loopback on/off settings for recording instrument audio with or without computer or mobile playback audio.
• Rechargeable Battery: Built-in 1450mAh battery provides up to seven hours of operation.
• Charge-and-Play Function: Can operate while connected to a suitable USB power source.
• Compact Design: Lightweight construction makes it suitable for practice, travel and compact pedalboard setups.

Specifications

• Brand: M-VAVE
• Model: TANK MINI
• Product Type: Guitar and Bass Multi-Effects Processor
• Presets: 21 editable and overwritable presets
• Preset Banks: 7 banks, with 3 presets per bank; 5 guitar banks and 2 bass banks
• Effect Architecture: 6 main effect modules plus 1 cabinet simulation slot
• Effect Modules: Noise Gate, Boost, Compressor, Amp, 3-Band EQ, Modulation, Delay, Reverb and IR Cabinet Simulation
• Amp Models: 20 total — 15 guitar preamp models and 5 bass preamp models
• IR Cabinet Slots: 20 total — 15 guitar cabinet simulations and 5 bass cabinet simulations
• Modulation Types: 7 — Chorus, Phaser, Tremolo, Flanger, Vibrato, Univibe and Autofilter
• Delay Types: 5 — Analog, Ducking Delay, dTape, Dual Delay and Lo-Fi Delay
• Reverb Types: 6 — Room, Hall, Swell, Spring, Shimmer and Cloud
• Built-In Tuner: Chromatic tuner
• Tuner Reference Pitch: Adjustable from 430Hz to 450Hz through compatible software; default A4 = 440Hz
• Controls: Power switch, master volume knob and 3 footswitches

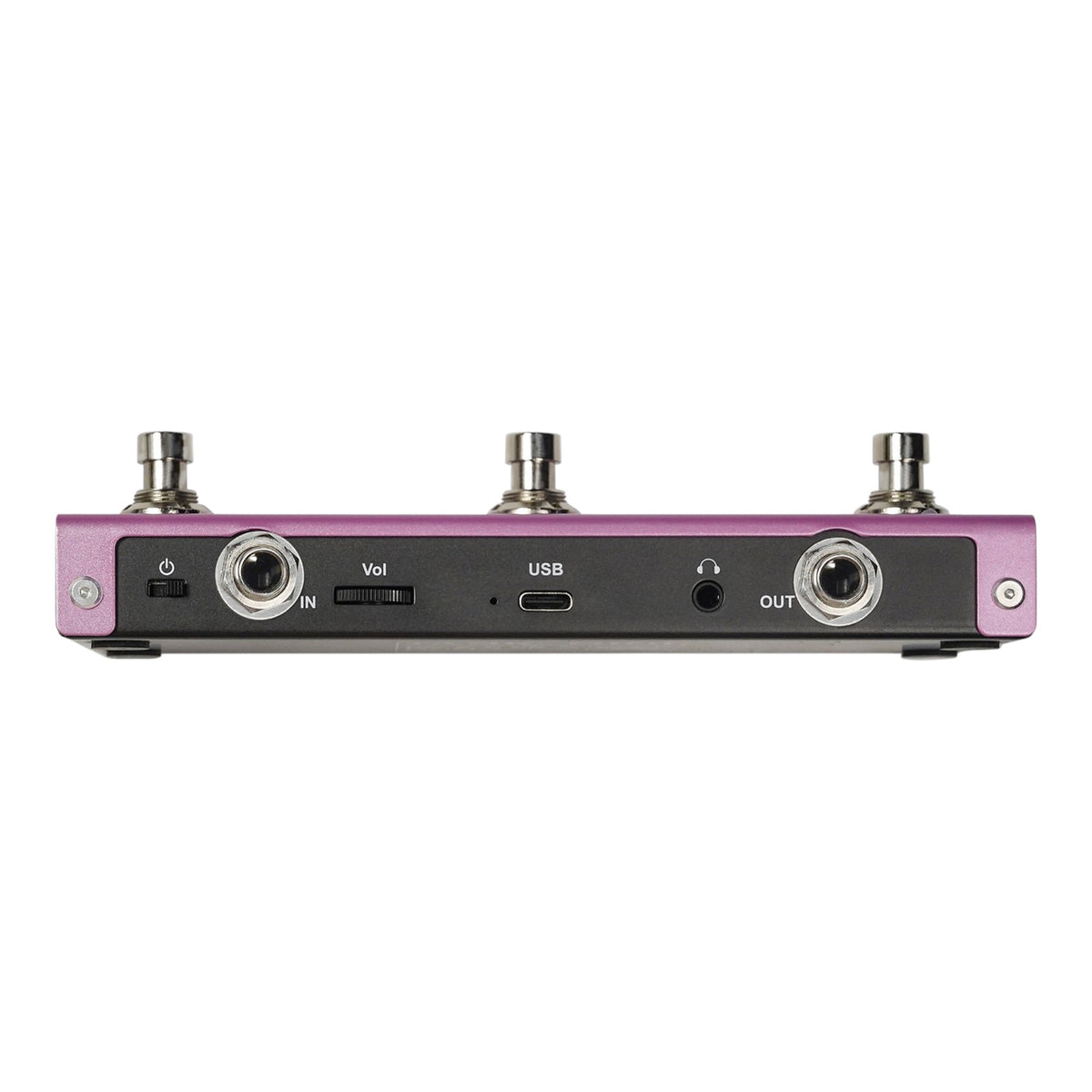

• Connectivity: Bluetooth, USB Type-C, 6.35mm (1/4") mono TS input, 6.35mm (1/4") mono TS output and 3.5mm (1/8") stereo headphone output
• USB Audio: 44.1kHz/24-bit
• Loopback: Supported, selectable on/off through software
• IR File Format: Mono WAV, 44.1kHz/24-bit, 1024 sampling points
• Software Compatibility: Windows, macOS, iOS and Android, subject to device and software support
• Battery Type: 102840 rechargeable battery
• Battery Capacity: 1450mAh
• Nominal Battery Voltage: 3.7V
• Battery Life: Up to 7 hours
• Charging Connection: USB Type-C
• Recommended Charging Supply: 5V/2A
• Full Charging Time: Approximately 4.75 hours
• Charging Current Limit: Approximately 400mA
• Working Current: Approximately 250mA
• USB Power/Data Requirement: 5V, minimum 300mA
• Dynamic Range: 105dB
• Dimensions: 165 × 60 × 40mm
• Weight: Approximately 325g
• Power Supply: Built-in rechargeable battery or USB 5V power

Package Contents

• 1 × M-VAVE TANK MINI Multi-Effects Processor
• 1 × USB Cable

Note: USB cable included. Mobile recording requires a compatible OTG adapter and depends on device and app compatibility. Power adapter and headphones are not included
