Product Details
Product Details

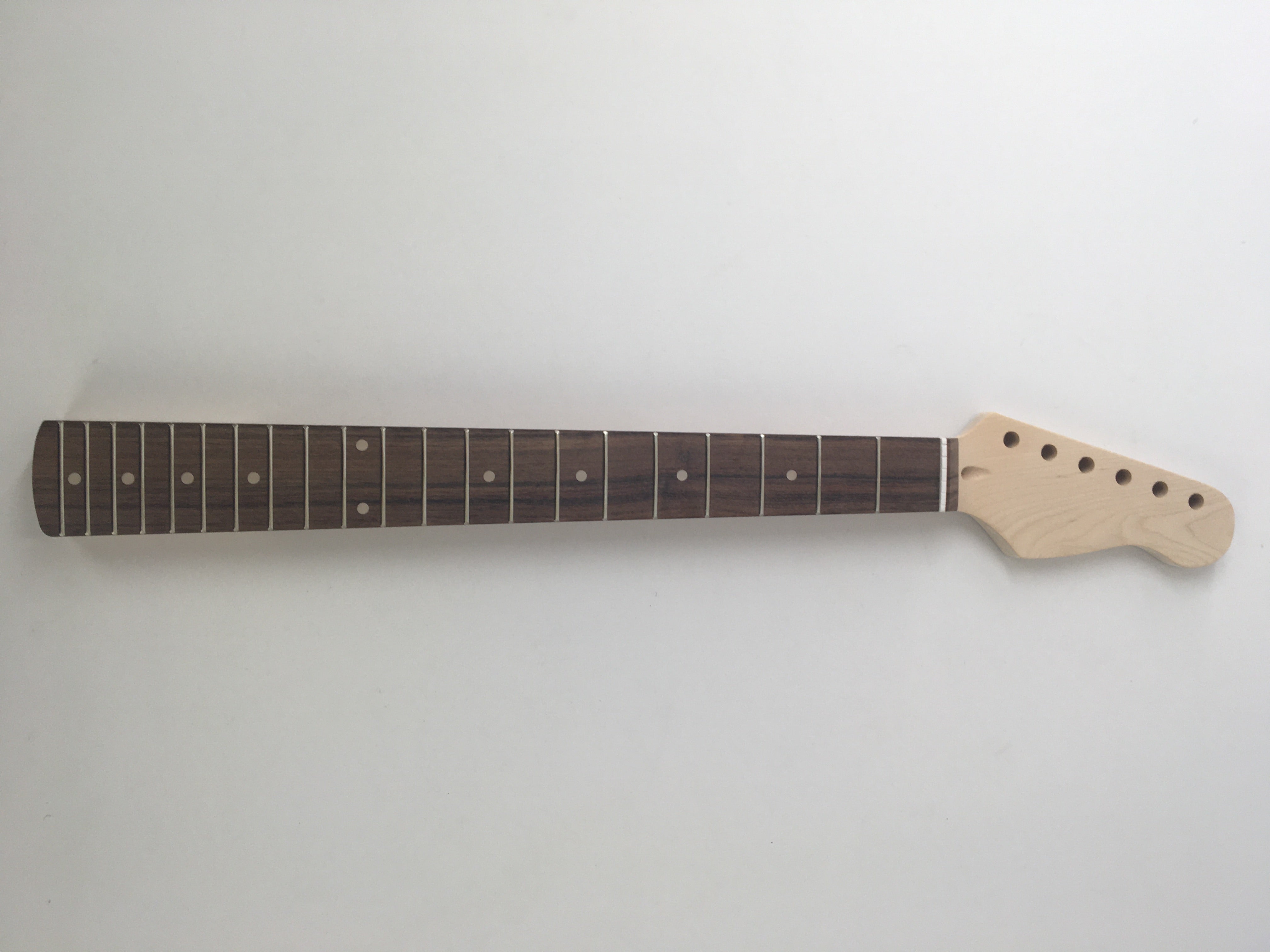

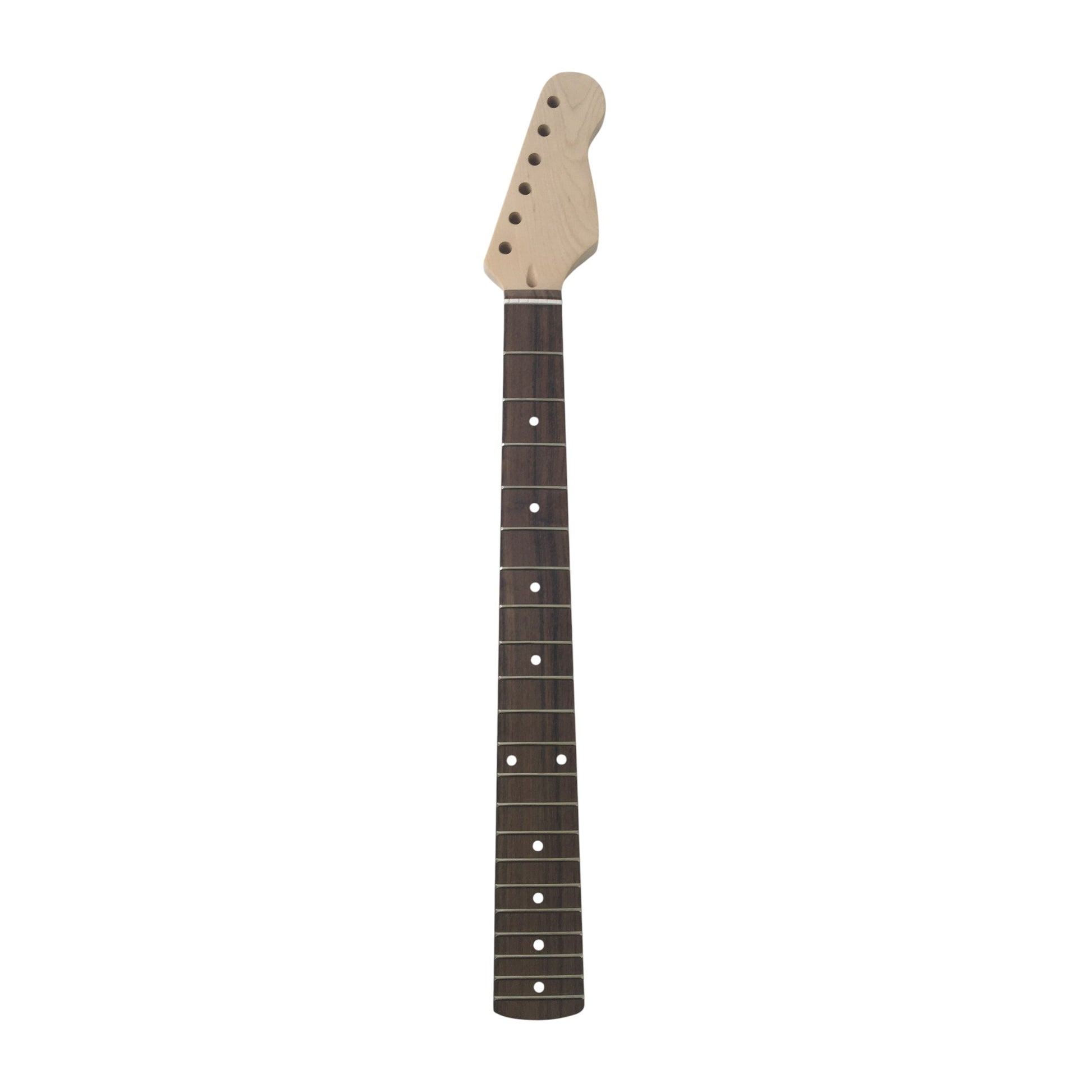

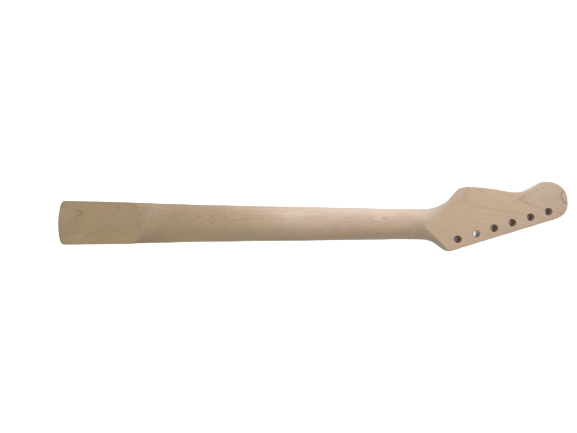

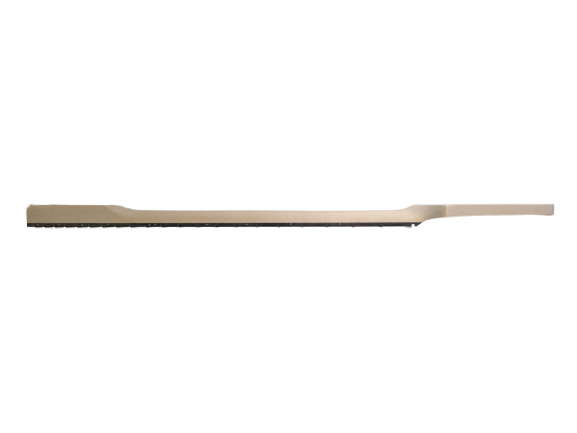

HAZE HST1910GN1W-Thin Guitar Neck – Maple / Rosewood
The HAZE HST1910GN1W-Thin is a replacement guitar neck suitable for guitar repairs, upgrades or DIY projects.
Please check the measurements of your guitar body and hardware before ordering. There may be a small measurement variation of around ±1–2mm.
If you are using this neck with a non-HAZE guitar body or hardware, some minor modification may be required to get the correct fit.
Features
- Maple neck
- Rosewood fingerboard
- 21 frets
- 12" radius

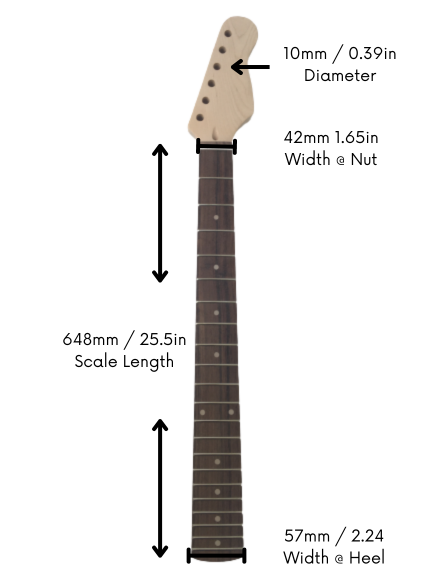

- 648mm / 25.5" scale length
- Two-way adjustable truss rod
- White pre-installed nut
- White dot inlays and side markers
- 10mm tuner holes
Specifications
| Item | Details |
|---|---|
| Model | HST1910GN1W-Thin |
| Neck | Maple |
| Fingerboard | Rosewood |
| Nut | White, pre-installed |
| Weight | Approx. 600g |
| Radius | 12" |
| Frets | 21 |
| Truss Rod | Two-way |
| Inlays / Side Markers | White Dot |
| Scale Length | 648mm / 25.5" |

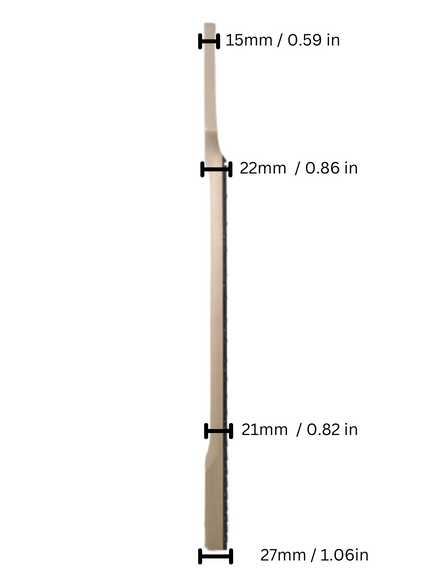

| Thickness at Head | 15.5mm |
| Thickness at Nut | 27mm / 1.06" |
| Thickness at 12th Fret | 21mm / 0.8" |

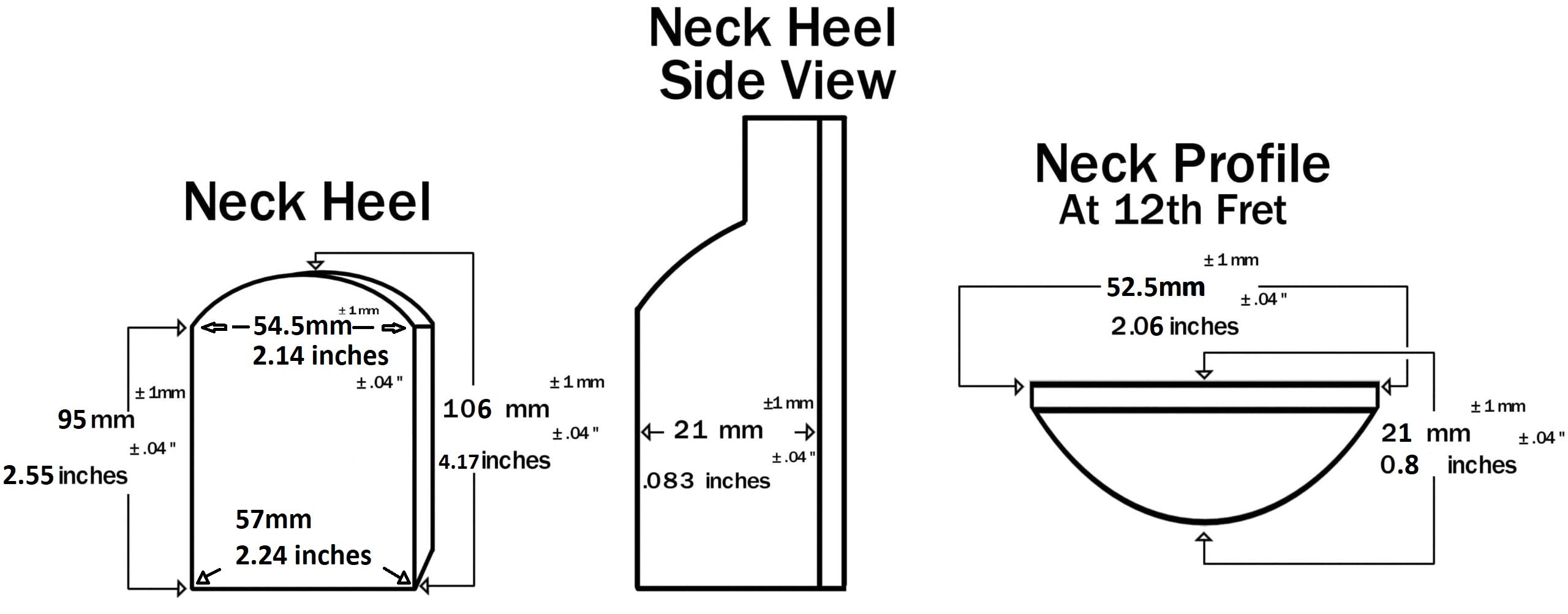

| Width at 12th Fret | 52.5mm / 2.06" |
| Heel Length | 105mm |
| Heel Width | 57mm |
| Heel Depth | 28mm (including fingerboard) |
| Tuner Hole | 10mm |
| Nut to Heel | 478mm / 18.81" |

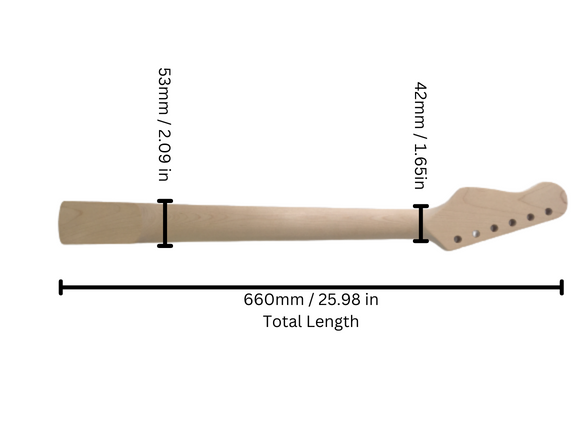

| Total Length | 660mm |
Please Note
This is a replacement/DIY guitar neck, so please make sure the measurements are suitable for your project before purchasing.
